Yuasa SWL+850 VRLA AGM 28.8 Ah 12 V 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

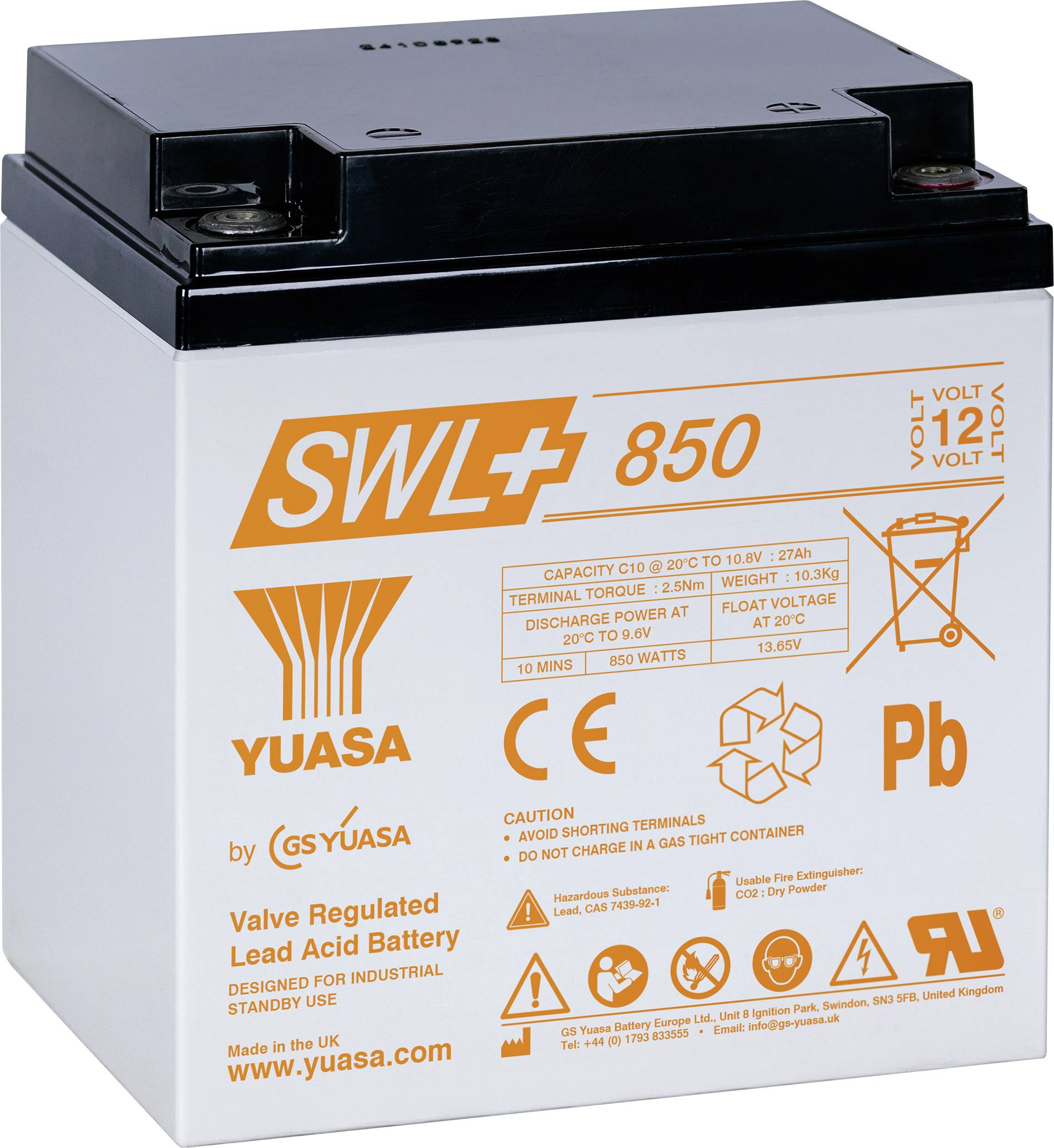

Yuasa SWL+850 industrial high-current VRLA battery
- Extended life span and EUROBAT classification: 15 years life at 20°C.
- Improved performance at high discharge rates
- Hybrid pure lead technology
- HT Element X Alloy Technology
- Sustainable design and production
- Certified safety, performance and durability
- Practical emergency power supply
- Fully compatible with existing SWL solutions
- Excellent recovery after deep discharge
- Versatile orientation
- Flame-retardant options
Technical specifications
- Length 166 mm, Width 125 mm
- Maximum discharge current: 500 A for 1 second
- Constant power: 850 W per Block (10-minute discharge rate up to 9.6 V)
- Short circuit current 800 A
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
28.8 Ah
- Height
175 mm
- Weight
10.3 kg
- Content
1 pc(s)
- Type
SWL+850
- Rechargeable
Yes
- Connector
M5 connector
- Voltage
1.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3729216 Yuasa SWL+850 VRLA AGM 28.8 Ah 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3729216 Yuasa SWL+850 VRLA AGM 28.8 Ah 12 V 1 pc(s)
Description
The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x industrial battery block (VRLA)
