Technical specifications
- Product type

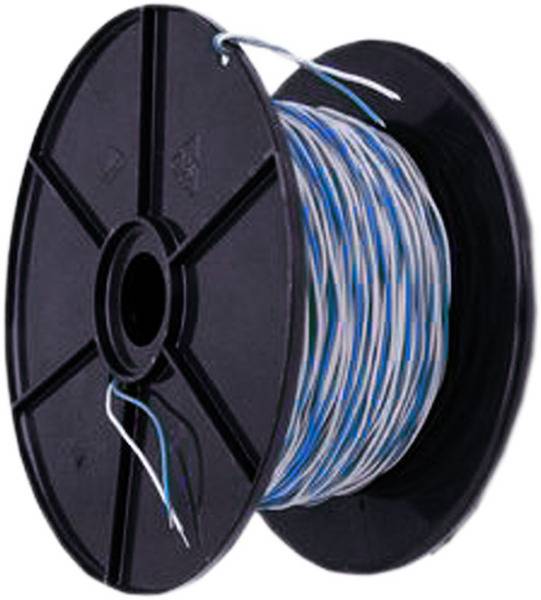

Jumper wire
- No. of leads
2 x
- Content
100 m
- Cross section (each core)
0.6 mm
- Insulation material
PVC
- Cable type
Yv
- Manufacturer part #
YV 2x0,6/1.1
- Max. length sold by the metre
100 m
- Cross section
2 x 0.6 mm
- Max. temperature range (flexible installation)
70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
YV 2x0,6/1.1
- Standards
Verband Deutscher Elektrotechniker e.V. (VDE)
0.6 mm²
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2984919 YV 2x0,6/1.1 Jumper wire Yv 2 x 0.6 mm 100 m
Description
Switch/shunting wire made of a tin-plated conductor, with PVC insulation, according to DIN VDE 0472-804 test type A, solid Cu conductors, rated voltage 900 V, temperature range moving -5°C to + 70°C, temperature range laid fixed -30°C to + 70°C, PVC self-extinguishing and flame-resistant, for use in communications technology, in telecommunications systems and in all areas of general wiring technology, Not applicable outside of appliances, not bending or turning!
