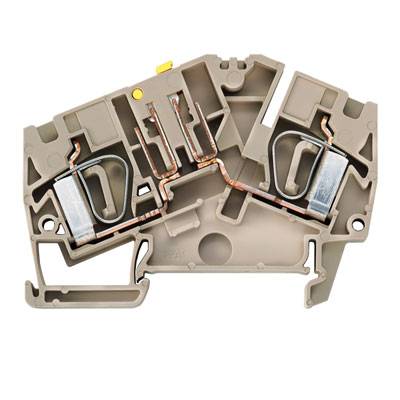

Z-series, Test-disconnect terminal, Rated cross-section: 6 mm², Tension clamp connection, PA 66/6, Beige, Direct mountin
EAN:
Part number:
Item no:
Product type
Serial test terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Z-series, Test-disconnect terminal, Rated cross-section: 6 mm², Tension clamp connection, PA 66/6, Beige, Direct mounting
Our service for you
Technical specifications
- Product type
Serial test terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Dark beige
- Manufacturer part #
1023830000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZTR 6-2
- Dim
(L x W x H) 70 x 8.1 x 50 mm
- Width
8.1 mm
- Height
50 mm
- Length
70 mm
- RoHS-compliant
Yes
- Weight
17.8 g
- Insulation material
PA 6.6
- Type
ZTR 6-2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 281004 Z-series, Test-disconnect terminal, Rated cross-section: 6 mm², Tension clamp connection, PA 66/6, Beige, Direct mo
User & Safety Instructions
User & Safety Instructions 281004 Z-series, Test-disconnect terminal, Rated cross-section: 6 mm², Tension clamp connection, PA 66/6, Beige, Direct mo
Description
In standard and Roof Style forms
