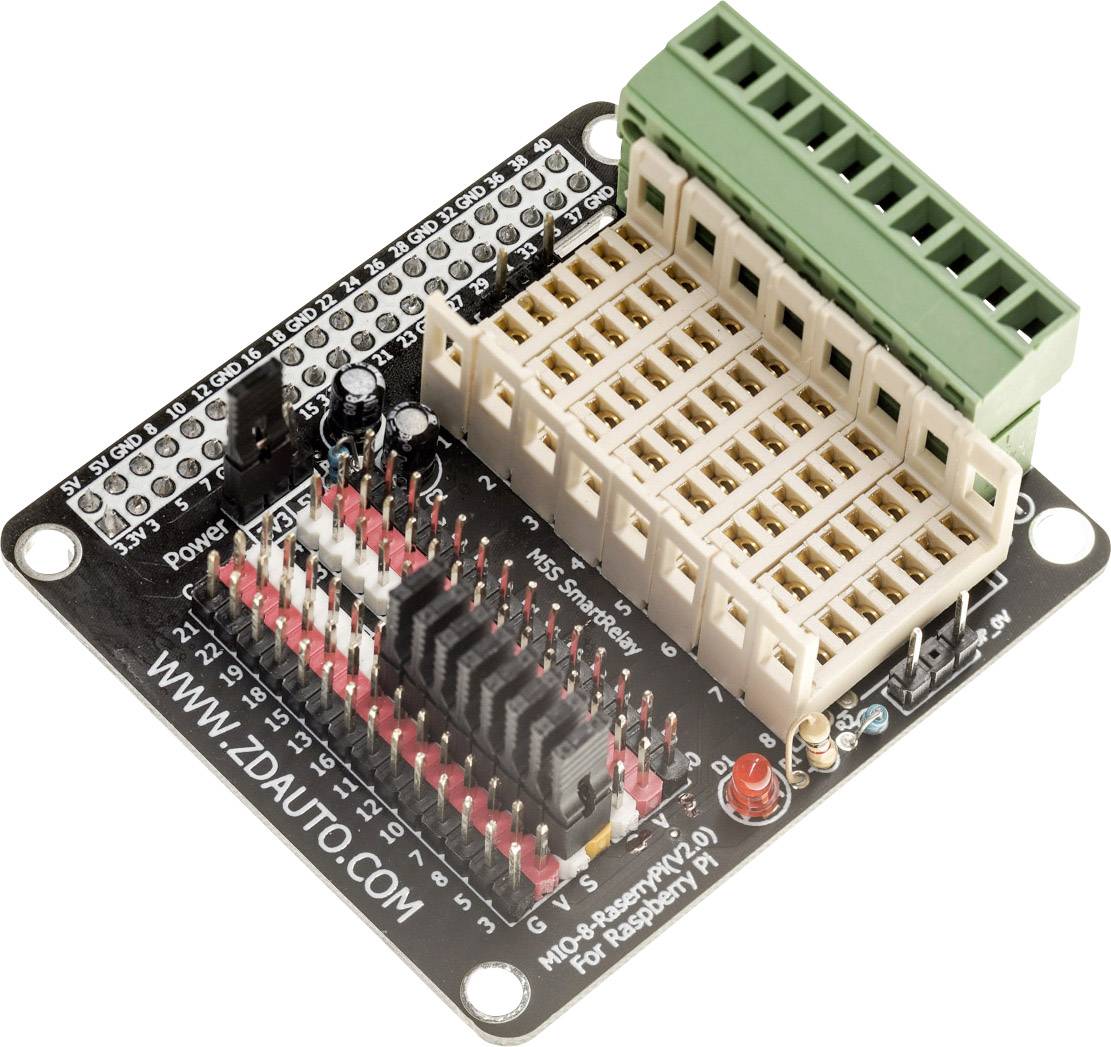

ZDAuto MIO-RASPBERRYPI Expansion board
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 25.20
21
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Multiple: 7
Total (€ 25.20 / piece)
€ 176.40
plus VAT.
Highlights & Details
ZDAuto M5S Board MIO RASPBERRYPI Raspberry Pi® Shield without M5S modules
- Compatible with Raspberry Pi® 2 (or later)
- 8 slots for M5S modular I/O modules (sold separately)
- Screw terminals for external switching and supply voltage, e.g. 24V DC
- Socket for internal circuit
- Configuration and pin assignment via jumpers or cables
Technical specifications
- Interfaces: Digital input, digital output, analogue input, analogue output
- Product type
Expansion board
- Suitable for
Raspberry Pi® 2 B
Raspberry Pi® 3 A+
Raspberry Pi® 3 B
Raspberry Pi® 3 B+
Raspberry Pi® 4 B
Documents & Downloads
Datasheet
Datasheet 2107998 ZDAuto MIO-RASPBERRYPI Expansion board
Datasheet 2107998 ZDAuto MIO-RASPBERRYPI Expansion board
User & Safety Instructions
User & Safety Instructions 2107998 ZDAuto MIO-RASPBERRYPI Expansion board
Description
Raspberry Pi® Shield Modular Expansion Board with 8 slots for M5S I/O devices.
Raspberry Pi® can be extended with the expansion board to include digital input, digital output, analogue input and analogue output.
Furthermore, the function of the M5S I/O blocks can be tested in a simple way.
This text is machine translated.
Raspberry Pi® can be extended with the expansion board to include digital input, digital output, analogue input and analogue output.
Furthermore, the function of the M5S I/O blocks can be tested in a simple way.
This text is machine translated.
