ZDAuto MIO-UNO Starter-Kit Expansion board Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
Only 1 Piece(s) available
Highlights & Details

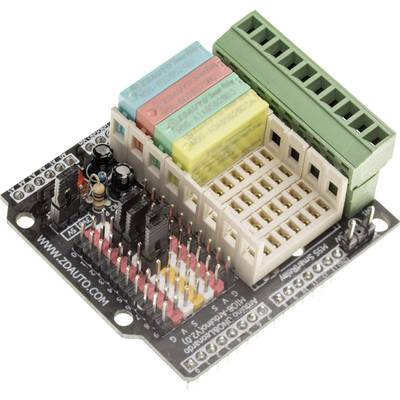

ZDAuto M5S-Board MIO-UNO Arduino UNO Shield Starter Kit with four M5S modules
- Compatible with Arduino UNO
- 1x digital input 0-5 kHz Sink M5S module BID0524B1
- 1x digital output 0-5 kHz source M5S module BOT05750D1
- 1x analogue input 0-20 mA M5S module AIA05020B3
- 1x analogue output 0-20 mA M5S module AOA05020D3A
- Screw terminals for external switching and supply voltage, e.g. 24V DC
- Socket for internal circuit
- Configuration and pin assignment via jumpers or cables
Technical specifications
- Interfaces: Digital input, digital output, analogue input, analogue output
- Product type
Expansion board
- Suitable for
Arduino
Arduino Uno
- Compatible with
Arduino
Arduino UNO
- Tool type
Adapter
R & D kit
Expansion board
Development tool
- Compatible with
Arduino
Documents & Downloads
Datasheet
Datasheet 2108011 ZDAuto MIO-UNO Starter-Kit Expansion board Compatible with (development kits): Arduino
Datasheet 2108011 ZDAuto MIO-UNO Starter-Kit Expansion board Compatible with (development kits): Arduino
Description
Modular Arduino UNO Shield expansion board with 4 M5S I/O modules.
With the help of the expansion board Arduino UNO is extended by the functions 1x digital input 0-5 kHz source, 1x digital output 0-5 kHz source, 1x analogue input 0-20 mA and 1x analogue output 0-20 mA.
Furthermore, the function of the M5S I/O blocks can be tested in a simple way.
This text is machine translated.
With the help of the expansion board Arduino UNO is extended by the functions 1x digital input 0-5 kHz source, 1x digital output 0-5 kHz source, 1x analogue input 0-20 mA and 1x analogue output 0-20 mA.
Furthermore, the function of the M5S I/O blocks can be tested in a simple way.
This text is machine translated.
