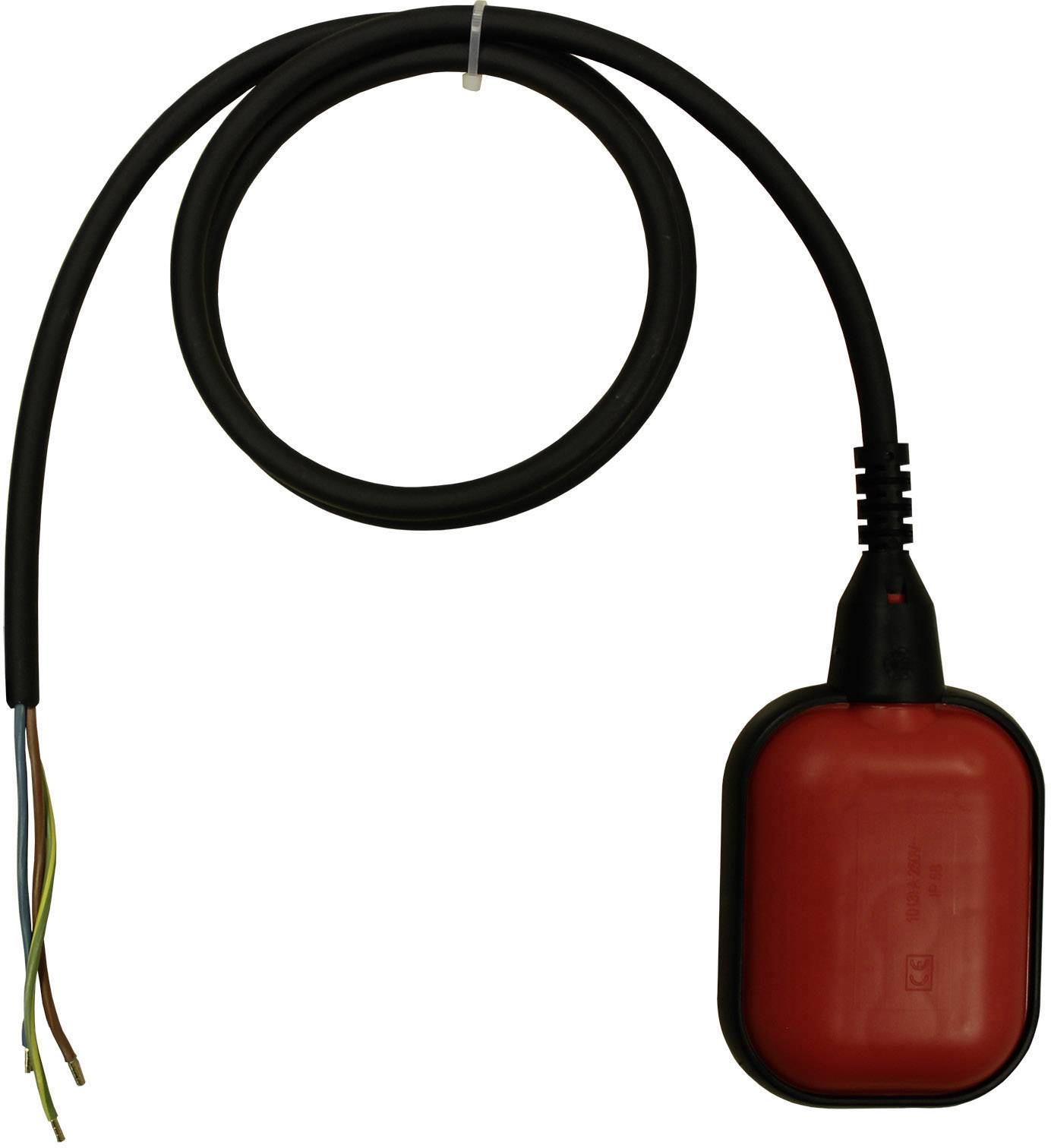

Zehnder Pumpen 17056 Float switch Draining 10.00 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Float switch OPTI 6 10 m
- Open cable ends
- With VDE and ENEC - Certificate
- Gold contacts for low current applications
Technical specifications
- Product type
Float switch
- Function
Draining
- Contact type
1 maker
- Nominal voltage
230 V
- Switching current (max.)
10 A
- Connection
Cable with open ends
- Material
Plastic
- Type
With gold contacts
- Max. temperature
85 °C
- Cable standard
H07RN-F 3G 1 mm²
- Cable length
10.00 m
IP68
- Dim
(L x W x H) 165 x 80.5 x 42 mm
- Length
165 mm
- Width
80.5 mm
- Height
42 mm
Documents & Downloads
Datasheet
Datasheet 1716597 Zehnder Pumpen 17056 Float switch Draining 10.00 m
User & Safety Instructions
User & Safety Instructions 1716597 Zehnder Pumpen 17056 Float switch Draining 10.00 m
Description
With this Float - Switch , You can control Pumps or Electric-Valves, simply and reliably. After crossing a certain amount of the Fluid - Height the float switches - Switches to your consumer. When the liquid falls below the set level the unit is switched off. You set the level by adjusting the free cable length.
