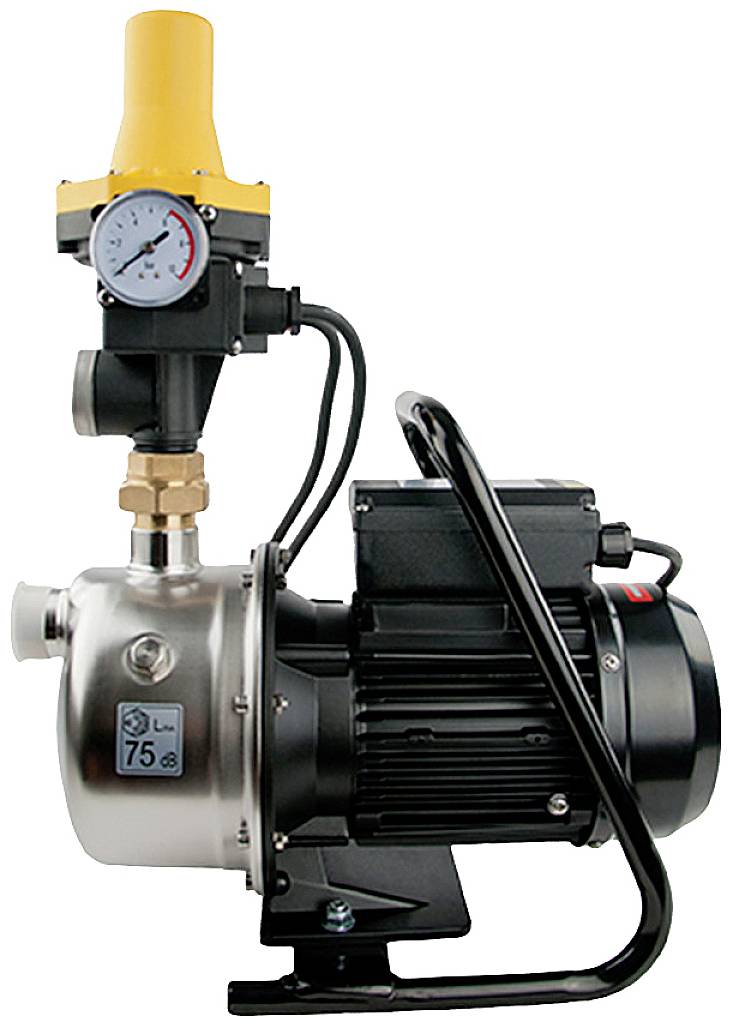

Zehnder Pumpen 18734 Gardenpress 1000/Kit 02 230V Domestic water pump 230 V 3.6 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Self-priming domestic water supply
- Smooth runningPump housing made of stainless steelMotor bearings with lifelong lubricationself-priming up to 8 m.With kit 02, completely wired, including 2 meter power cable and plug
- This text is machine translated.
Technical specifications
- Product type
Domestic water pump
- Operating voltage
230 V
- Power consumption (P1)
1000 W
- Max. feed rate
3.6 m³/h
- Max. delivery head
50 m
- Max. discharge pressure
5 bar
- Selfpriming up to
8 m
- Pressure connection
25 mm (1") IT
- Max. cable length
1.5 m
- Weight
11.8 kg
- Dim
(L x W x H) 354 x 184 x 475 mm
- Length
354 mm
- Width
184 mm
- Height
475 mm
- Factory colour
Black
Silver (matt)
Documents & Downloads
Datasheet
Datasheet 2588605 Zehnder Pumpen 18734 Gardenpress 1000/Kit 02 230V Domestic water pump 230 V 3.6 m³/h
User & Safety Instructions
User & Safety Instructions 2588605 Zehnder Pumpen 18734 Gardenpress 1000/Kit 02 230V Domestic water pump 230 V 3.6 m³/h
Description
Features
- Gardenpress 1000 - Jet centrifugal pump with Venturi nozzleSelf-priming up to 8 metersQuiet runningPressure connection 1" female thread, suction connection 1" female threadDiffuser and injector made of thermoplastic material, suitable for drinking waterStainless steel fill/drain plugAutomatic switch KIT 02: When a load is opened, the pump switches on automatically. If all consumers are closed, the pump switches off automatically.Additional dry run protectionApplication areas:Domestic water supplyWater supply from wells, springs and watersGarden irrigation and irrigationPressure increaseFor systems with a high suction heightFor the promotion of clear water without aggressive and abrasive components
Scope of delivery
- Domestic water supply Gardenpress 1000/Kit 02
- User manual.
