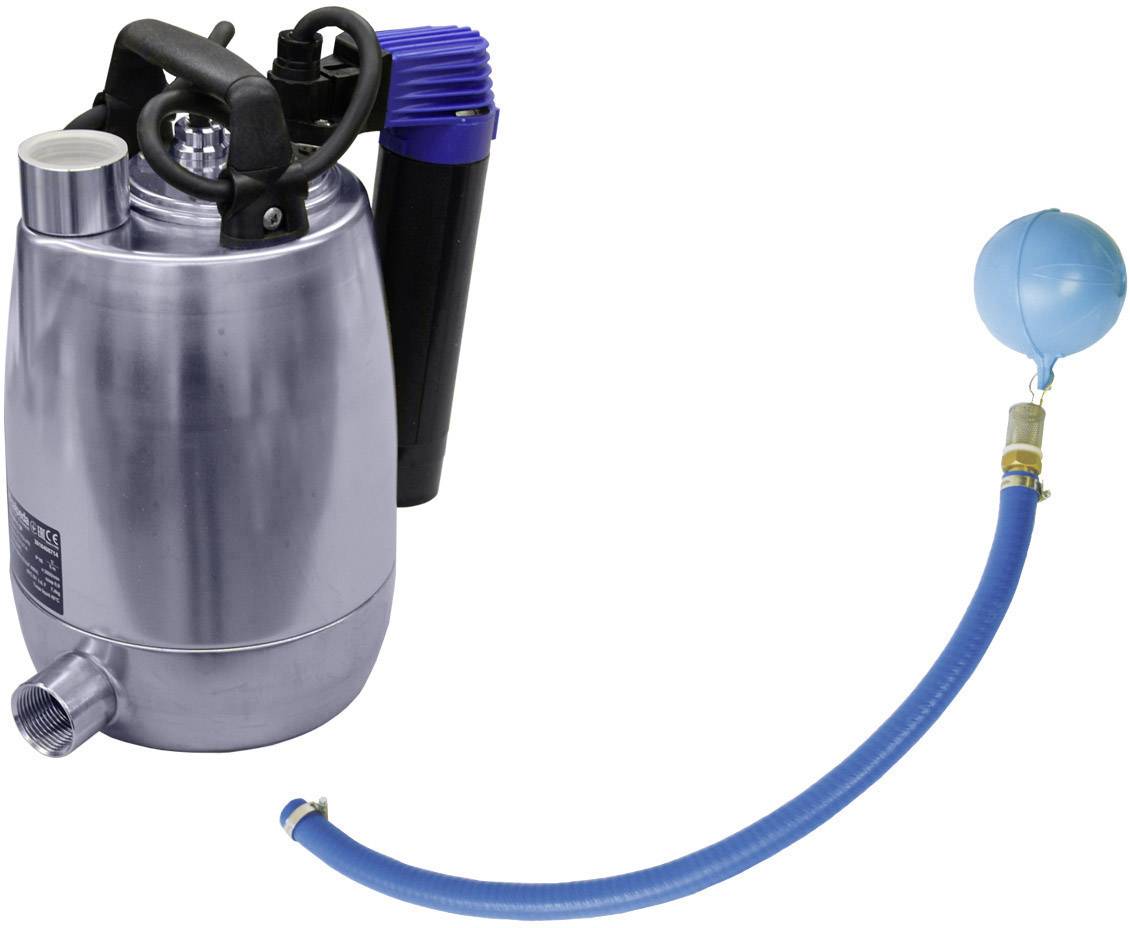

Zehnder Pumpen 19096 Lademax Effluent sump pump Food contact material 13.5 m³/h 11.0 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Zehnder Lademax
- With built-in capacitor
- 10 m connection cable
- With Compact Float
Technical specifications
- Nominal trim: 3.5 A
- Speed: 2850 rpm.
- Product type
Effluent sump pump
- Features
Food contact material
- Max. delivery head
11.0 m
- Max. feed rate
13.5 m³/h
- Max. discharge pressure
1.1 bar
- Operating voltage
230 V
- Power consumption (P1)
780 W
- Pressure connection
33.25mm (1") OT
- Max. cable length
10 m
- Float switch
Yes (built-in)
- Length
221 mm
- Width
221 mm
- Height
285 mm
- Dim
(L x W x H) 221 x 221 x 285 mm
- Weight
8 kg
Documents & Downloads
Datasheet
Datasheet 1600065 Zehnder Pumpen 19096 Lademax Effluent sump pump Food contact material 13.5 m³/h 11.0 m
User & Safety Instructions
User & Safety Instructions 1600065 Zehnder Pumpen 19096 Lademax Effluent sump pump Food contact material 13.5 m³/h 11.0 m
Description
Feeder pump for rain water modules with long suction lines and larger suction lifts and the promotion of water.
Automatic operation with defined switching points by permanently mounted, vertical float switch. Removal of the cleanest water through the accompanying floating removal.
This text is machine translated.
Automatic operation with defined switching points by permanently mounted, vertical float switch. Removal of the cleanest water through the accompanying floating removal.
This text is machine translated.
Features
- Incl. floating removal and check valve
- Fixed-mounted, vertical age float switch
- Can be used in a versatile
- LAB-lip-seal system - the motor is protected by three lip seals
- Stable floor plate.
Scope of delivery
- Wastewater pump
- 10 m connection cable
