Zehnder Pumpen 20261 HWW Garden 1000 / ZPC01B Domestic water pump 230 V 3.6 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

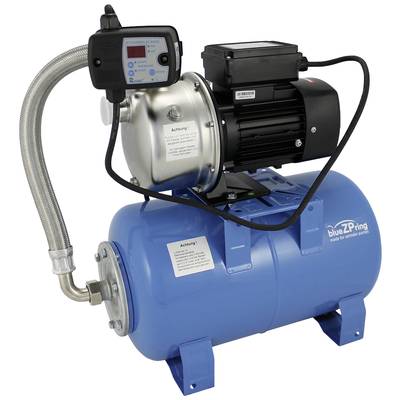

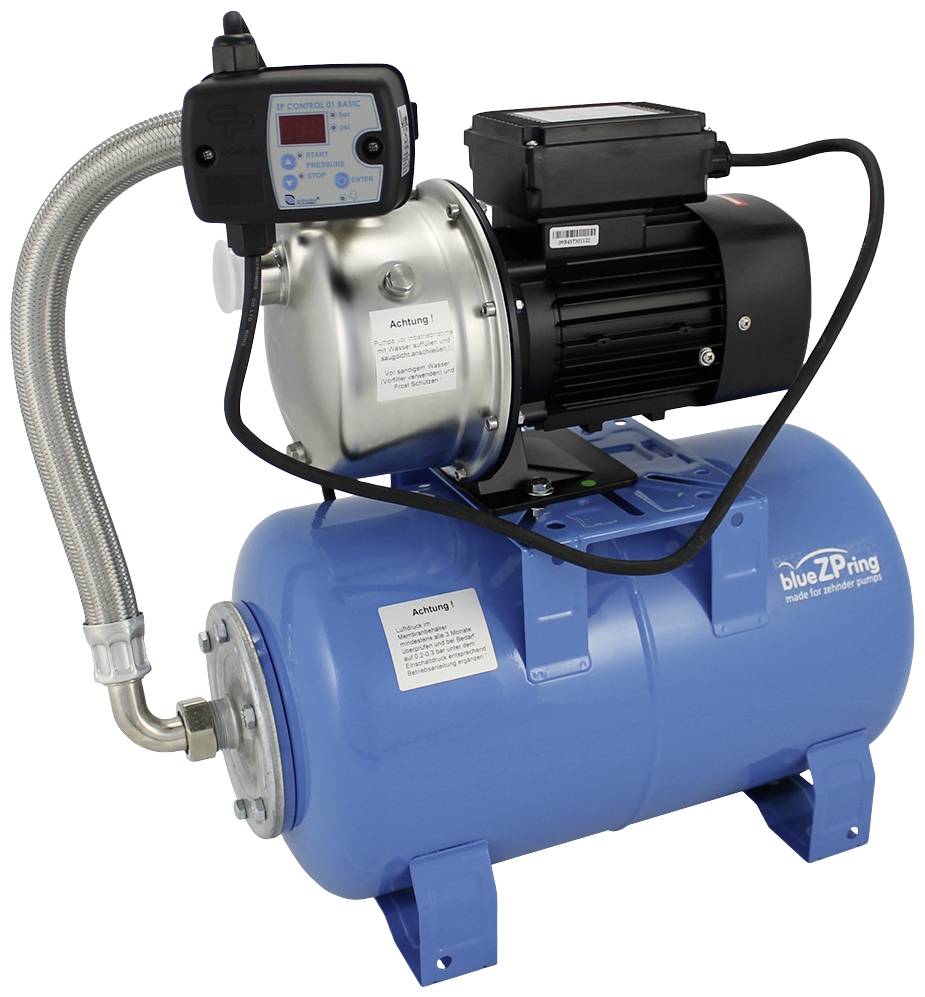

self-locking Domestic water supply 230V with 20 l diaphragm pressure vessel

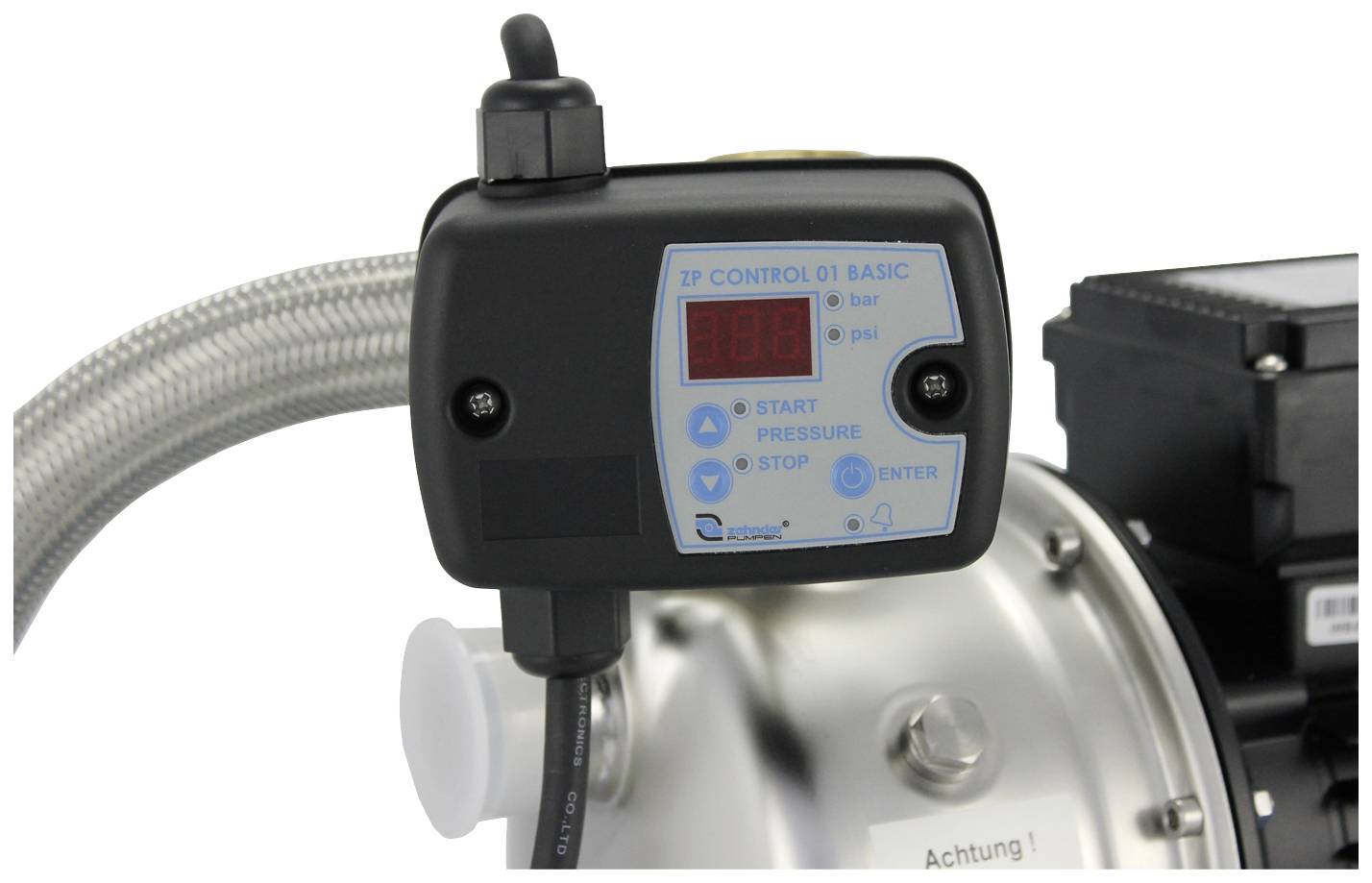

- Digital pressure switch for automatic operationIntegrated dry run protectionCompletely assembled, cabled and preset domestic water supplyPressure vessel with replaceable membrane bodylow noise
Technical specifications
- Product type
Domestic water pump
- Operating voltage
230 V
- Power consumption (P1)
1000 W
- Max. feed rate
3.6 m³/h
- Max. delivery head
50 m
- Max. discharge pressure
5 bar
- Boiler volume
20 l
- Hose connector
25 mm (1") IT
- Pressure connection
32 mm (1 1/4") Ø
- Max. cable length
2 m
- Dim
(L x W x H) 600 x 236 x 580 mm
- Length
600 mm
- Width
236 mm
- Height
580 mm
- Factory colour
Blue
Black
Documents & Downloads
Datasheet
Datasheet 2588606 Zehnder Pumpen 20261 HWW Garden 1000 / ZPC01B Domestic water pump 230 V 3.6 m³/h
User & Safety Instructions
User & Safety Instructions 2588606 Zehnder Pumpen 20261 HWW Garden 1000 / ZPC01B Domestic water pump 230 V 3.6 m³/h
Description
Digital pressure switch for automatic operation: digitally adjustable switch-on and switch-off pressure (time-based and inaccurate adjustment via clamping springs as with mechanical pressure switch is not necessary)Integrated dry run protection: Pump is automatically stopped in case of lack of water and malfunction is displayed (automatic. Re-start possible)Completely assembled, cabled and preset domestic water supply (ready to plug in single-phase version)Pressure vessel with replaceable membrane body low pressure loss with simultaneous water discharge at many consumerslow noise
This text is machine translated.
This text is machine translated.
Features
- Injector pump (Garden 1000)Self-priming, maintenance-free, multi-stage, horizontal centrifugal pump (CPS)Quiet runningReady to plug - including 2 meter power cable H 07 RNF and plugPressure and suction nozzle 1" internal thread (CPS 25-5 suction nozzle 1 ¼" IG)The digital pressure switch automatically switches the pump on and off Digital pressure displaysimple operationSuction and pressure housing made of Alpha brass (CPS)Guide wheels made of special Noryl®Motor housing made of light metal L-252120 l diaphragm pressure vessel made of steelApplication areas:Rainwater treatment plantsIrrigationPressure increaseTo promote clear water without aggressive andAbrasive components
Scope of delivery
- Domestic water supply 230V with 20 l diaphragm pressure vessel
- User manual.
