Zehnder Pumpen 21664 Vectis 400 Effluent sump pump 7 m³/h 7.5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

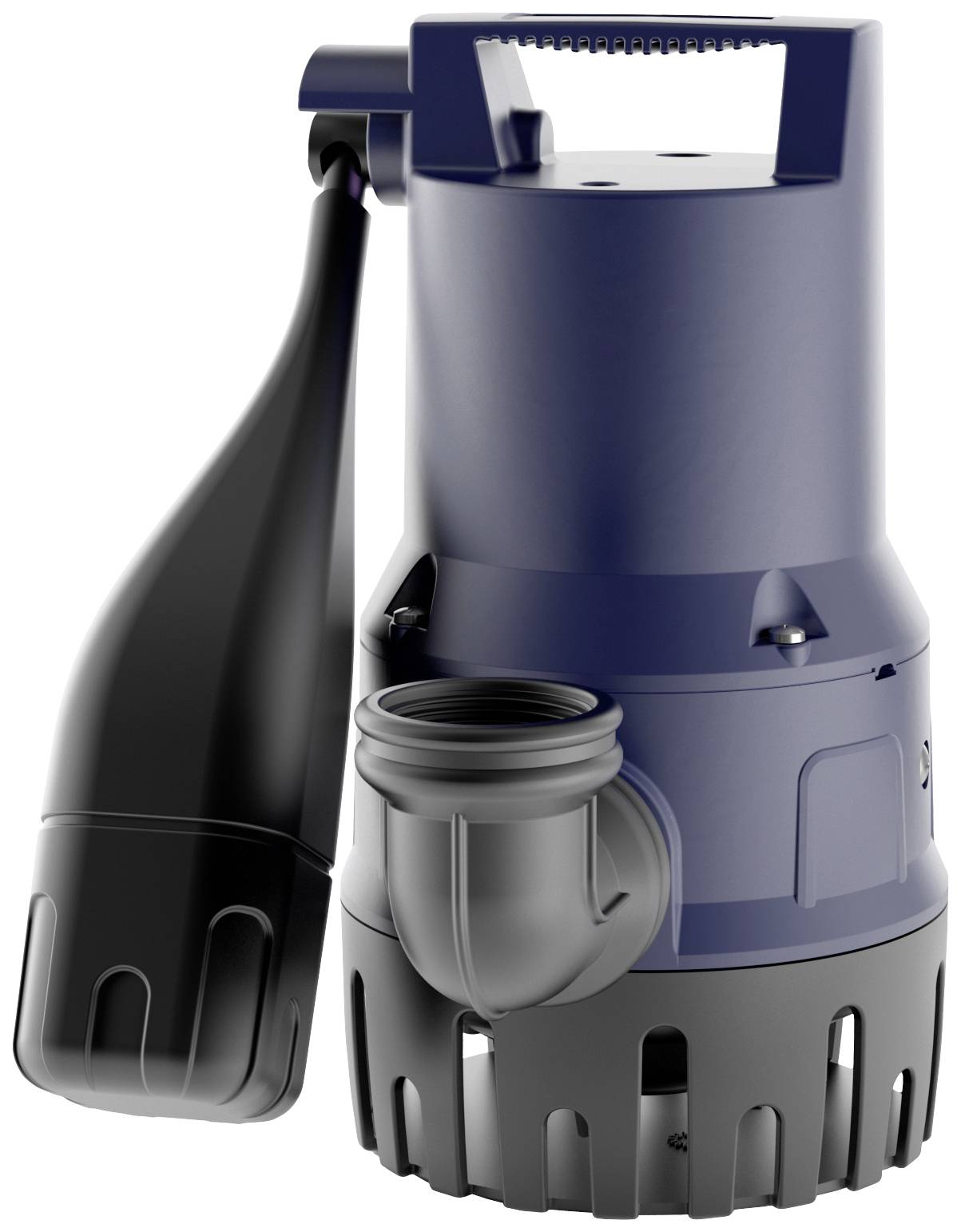

Waste water submersible pump with float switch
- Automatic control by lever floatLight and robust designSealed by triple shaft sealBuilt-in thermal winding protection to prevent overheating damage
- This text is machine translated.
Technical specifications
- Product type
Effluent sump pump
- Max. delivery head
7.5 m
- Max. feed rate
7 m³/h
- Max. discharge pressure
0.75 bar
- Operating voltage
230 V
- Power consumption (P1)
400 W
- Pressure connection
41.91 mm (1 1/4") OT
- Max. cable length
10 m
- Overload protection
Yes
- Length
280 mm
- Width
183 mm
- Height
254 mm
- (Ø)
138 mm
- Dim
(Ø x H) 138 mm x 254 mm
- Weight
5 kg
IP68
Documents & Downloads
Datasheet
Datasheet 2588610 Zehnder Pumpen 21664 Vectis 400 Effluent sump pump 7 m³/h 7.5 m
User & Safety Instructions
User & Safety Instructions 2588610 Zehnder Pumpen 21664 Vectis 400 Effluent sump pump 7 m³/h 7.5 m
Description
Features
- Dirty water submersible pump made of corrosion-resistant, impact-resistant plastic and high-quality stainless steelMotor winding with integrated thermal winding protectionSealed by triple shaft sealIntegrated bleed screwHorizontal output 1 1/4" AGAutomatic operation by lever float switchFleece function through removable suction screenPermanent operation by lockingMaximum liquid temperature 35°C.Protection class IP 68 - fully floodedApplication areas:Conveying clear and dirty water from pits, cellar drainage, etc.Portable pump for emergency drainageDrainage of domestic waste water withoutFeces from shower, washing machine, wash table etc.
Scope of delivery
- Pump with 10 m connection cable and earthing contact plugConnection BOW 90° 1 1/4" female threadLocking for continuous operationCheck valve
