Zehnder Pumpen 22061 Vectis 800 Effluent sump pump 15 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

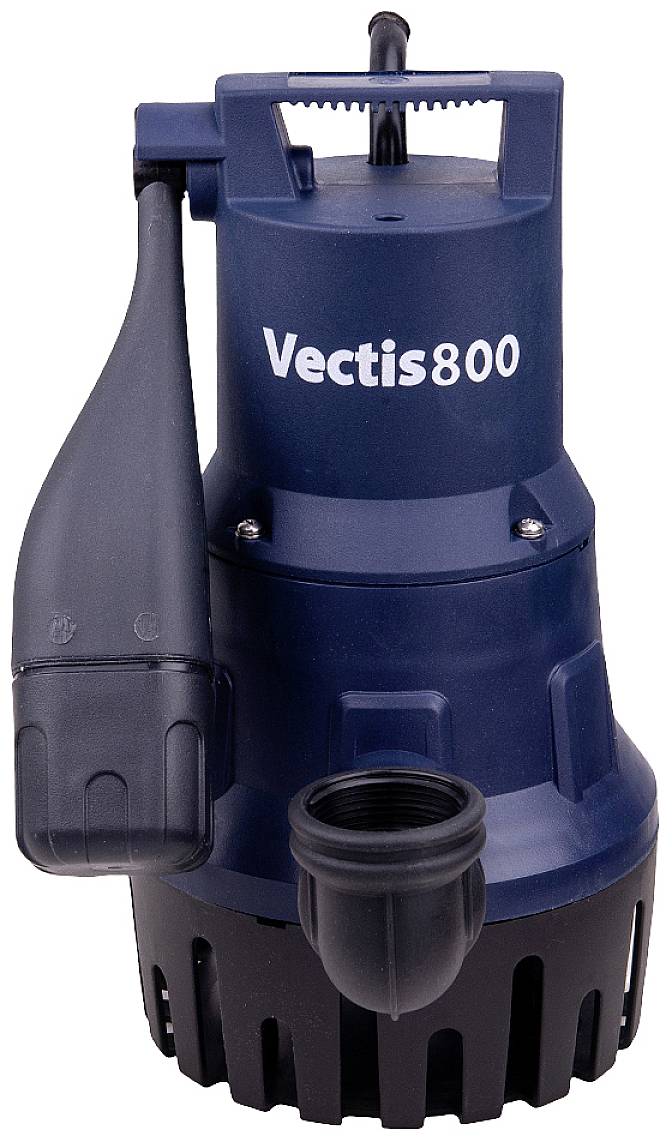

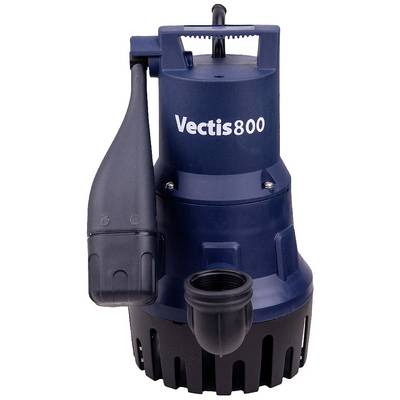

Waste water submersible pump with float switch
- Automatic control by lever floatLight and robust designSealed by triple shaft sealBuilt-in thermal winding protection to prevent overheating damage
- This text is machine translated.
Technical specifications
- Product type
Effluent sump pump
- Max. feed rate
15 m³/h
- Operating voltage
230 V
- Power consumption (P1)
800 W
- Pressure connection
41.91 mm (1 1/4") OT
- Max. cable length
10 m
- Overload protection
Yes
- Length
200 mm
- Width
296 mm
- Height
311 mm
- (Ø)
172 mm
- Dim
(Ø x H) 172 mm x 311 mm
- Weight
20 kg
Documents & Downloads
Datasheet
Datasheet 2588780 Zehnder Pumpen 22061 Vectis 800 Effluent sump pump 15 m³/h
User & Safety Instructions
User & Safety Instructions 2588780 Zehnder Pumpen 22061 Vectis 800 Effluent sump pump 15 m³/h
Description
Features
- Dirty water submersible pump made of corrosion-resistant, impact-resistant plastic and high-quality stainless steelMotor winding with integrated thermal winding protectionSealed by triple shaft sealIntegrated bleed screwHorizontal output 1 1/4" AGAutomatic operation by lever float switchFleece function through removable suction screenPermanent operation by lockingMaximum liquid temperature 35°C.Protection class IP 68 - fully floodedApplication areas:Conveying clear and dirty water from pits, cellar drainage, etc.Portable pump for emergency drainageDrainage of domestic waste water withoutFeces from shower, washing machine, wash table etc.
Scope of delivery
- Pump with 10 m connection cable and earthing contact plug
- User manual.
