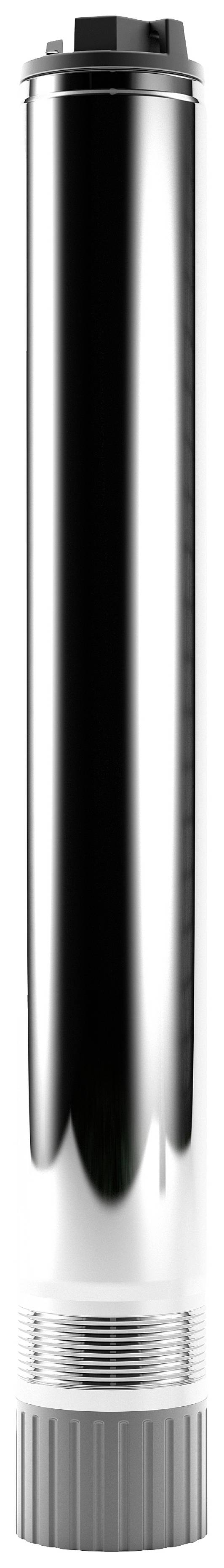

Zehnder Pumpen 22657 Aquastream 50 Submersible pump 5.5 m³/h 25 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Underwater motor pump aquastream 50
- Automatic switching on and off by integrated switching machineAutomatic re-start in case of a detected dry runSimple installation: Plug & playSlim design (96mm)
- This text is machine translated.
Technical specifications
- Product type
Submersible pump
- Max. delivery head
25 m
- Max. feed rate
5.5 m³/h
- Max. discharge pressure
2.5 bar
- Operating voltage
230 V
- Power consumption (P1)
800 W
- Pressure connection
25 mm (1") IT
- Immersion depth
0.15 m
- Max. cable length
22 m
- Overload protection
Yes
- Length
775 mm
- (Ø)
96 mm
- Dim
(Ø x L) 96 mm x 775 mm
- Weight
12 kg
Documents & Downloads
Datasheet
Datasheet 2588607 Zehnder Pumpen 22657 Aquastream 50 Submersible pump 5.5 m³/h 25 m
User & Safety Instructions
User & Safety Instructions 2588607 Zehnder Pumpen 22657 Aquastream 50 Submersible pump 5.5 m³/h 25 m
Description
Features
- Automatic restart in case of a detected dry run (4 start attempts directly, then 4 start attempts after 5h and 24h, reset perMains isolation possible)Sheath current cooling (no cooling jacket required)Thermal and current motor monitoringDouble mechanical sealRunning and guide wheels made of wear-resistant plasticImmersion depth max = 22 m.Water column above pump max = 25 m.Minimum immersion depth for automatic operation = 15 cmFor short pressure pipes, we recommend the use of a small diaphragm vesselApplication areas:Clear water supply from wellsDomestic water supply, garden irrigation
Scope of delivery
- Underwater motor pump aquastream 50
- 22 m connection cable
- 20 m drain and attachment rope
- User manual.
