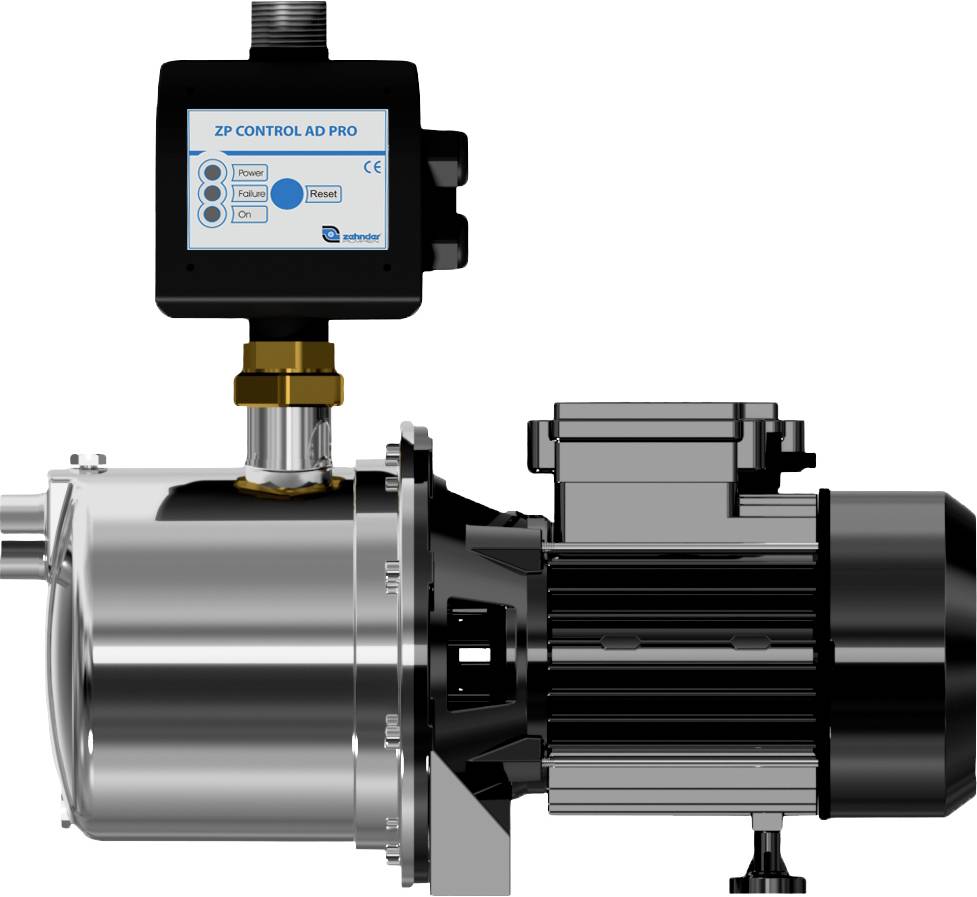

Zehnder Pumpen 23278 Gardenpress 2000 Domestic water pump 230 V 5 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Self-priming domestic water pump with ZP Control AdPro
- Smooth runningPump housing made of stainless steelMotor with temperature protection switchSelfpriming up to 8 m
Technical specifications
- Medium temperature max. 40 °C.Max. operating temperature: 40 °C
- Product type
Domestic water pump
- Operating voltage
230 V
- Power consumption (P1)
1300 W
- Max. feed rate
5 m³/h
- Max. delivery head
54 m
- Max. discharge pressure
5.4 bar
- Selfpriming up to
8 m
- Hose connector
30.3 mm (1") IT
- Pressure connection
30.3 mm (1") IT
- Weight
11 kg
- Dim
(Ø x H) 200 mm x 381 mm
- Length
416 mm
- Height
381 mm
- (Ø)
200 mm
IP54
Documents & Downloads
Datasheet
Datasheet 2623331 Zehnder Pumpen 23278 Gardenpress 2000 Domestic water pump 230 V 5 m³/h
User & Safety Instructions
User & Safety Instructions 2623331 Zehnder Pumpen 23278 Gardenpress 2000 Domestic water pump 230 V 5 m³/h
User & Safety Instructions 2623331 Zehnder Pumpen 23278 Gardenpress 2000 Domestic water pump 230 V 5 m³/h
Description
Self-priming domestic water pump with ZP Control AdPro.Application areas:Domestic water supplyWater supply from wells, springs and watersGarden irrigation and irrigationPressure increaseFor systems with a high suction heightFor the promotion of clear water without aggressive and abrasive components.
This text is machine translated.
This text is machine translated.
Features
- With Ad Pro, completely wired, including 1.4 meter mains cable and plugSwitching machine AdPro: Adjustable switch-on pressure from 1.5 to 3.5 barWhen a load is opened, the pump switches on automaticallyIf all consumers are closed, the pump switches off automaticallyAdditional dry run protection.
Scope of delivery
- With Ad Pro, completely wired, including 1.4 meter mains cable and plug
