Zehnder Pumpen 23280 HWW-E Garden 2000 ZPC01B Domestic water pump 230 V 5 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

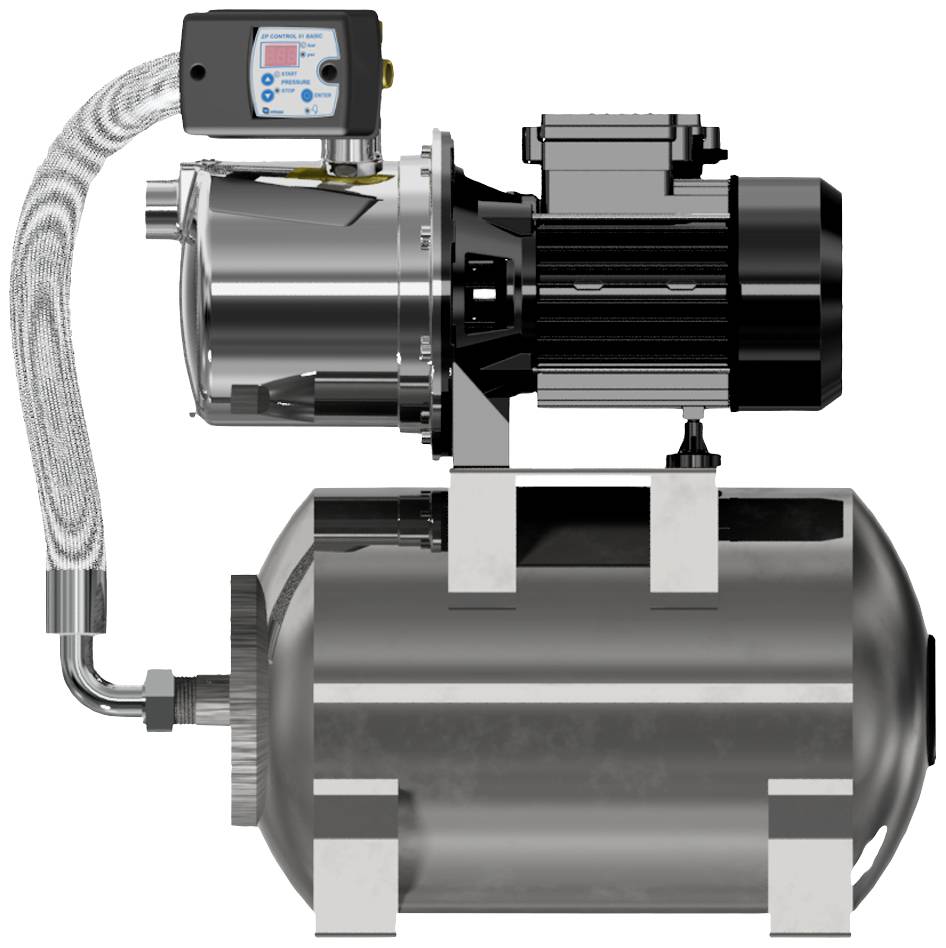

Self-priming domestic water supply 230 V Stainless steel membrane container 20 l
- Digital pressure switch for automatic operationIntegrated dry run protectionFully assembled, wired and pre-setMembrane container stainless steel 20 l
Technical specifications
- Product type
Domestic water pump
- Operating voltage
230 V
- Power consumption (P1)
1300 W
- Power (P2)
900 W
- Max. feed rate
5 m³/h
- Max. delivery head
54 m
- Max. discharge pressure
5.4 bar
- Pressure connection
33.25mm (1") OT
- Weight
20 kg
- Dim
(L x W x H) 550 x 275 x 550 mm
- Length
550 mm
- Width
275 mm
- Height
550 mm
IP54
Documents & Downloads
Datasheet
Datasheet 2623333 Zehnder Pumpen 23280 HWW-E Garden 2000 ZPC01B Domestic water pump 230 V 5 m³/h
User & Safety Instructions
User & Safety Instructions 2623333 Zehnder Pumpen 23280 HWW-E Garden 2000 ZPC01B Domestic water pump 230 V 5 m³/h
Description
Self-priming domestic water supply 230 V, membrane container stainless steel 20 l.Application areas:Rainwater treatment plantsIrrigationPressure increaseFor the promotion of clear water without aggressive and abrasive components.
This text is machine translated.
This text is machine translated.
Features
- Digital pressure switch for automatic operation: digitally adjustable switch-on and switch-off pressure (time-based and inaccurate adjustment via clamping springs as with mechanical pressure switch is not necessary)Integrated dry run protection: Pump is automatically stopped in case of lack of water and malfunction is displayed (automatic. Re-start possible)Completely assembled, cabled and preset domestic water supply (ready to plug in single-phase version)Pressure vessel with replaceable membrane body (for steel and stainless steel versions)Low pressure loss with simultaneous water removal at many consumersLow-noiseInjector pump (Garden 1000)Self-priming, maintenance-free, multi-stage, horizontal centrifugal pump (CPS / Garden 2000)Quiet runningReady to plug - including 2 meter power cable H 07 RNF and plugPressure and suction nozzle 1" internal thread (CPS 25-5 suction nozzle 1 ¼" IG)The digital pressure switch automatically switches the pump on and offDigital pressure displayEasy to UseSuction and pressure housing made of Alpha brass (CPS)Guide wheels made of special Noryl®Motor housing made of light metal L-252120 l diaphragm pressure vessel
Scope of delivery
- Ready to plug - including 2 meter power cable H 07 RNF and plug
- Digital pressure switch
