Buy Zehnder Pumpen D-SWH Wastewater pump 4 m

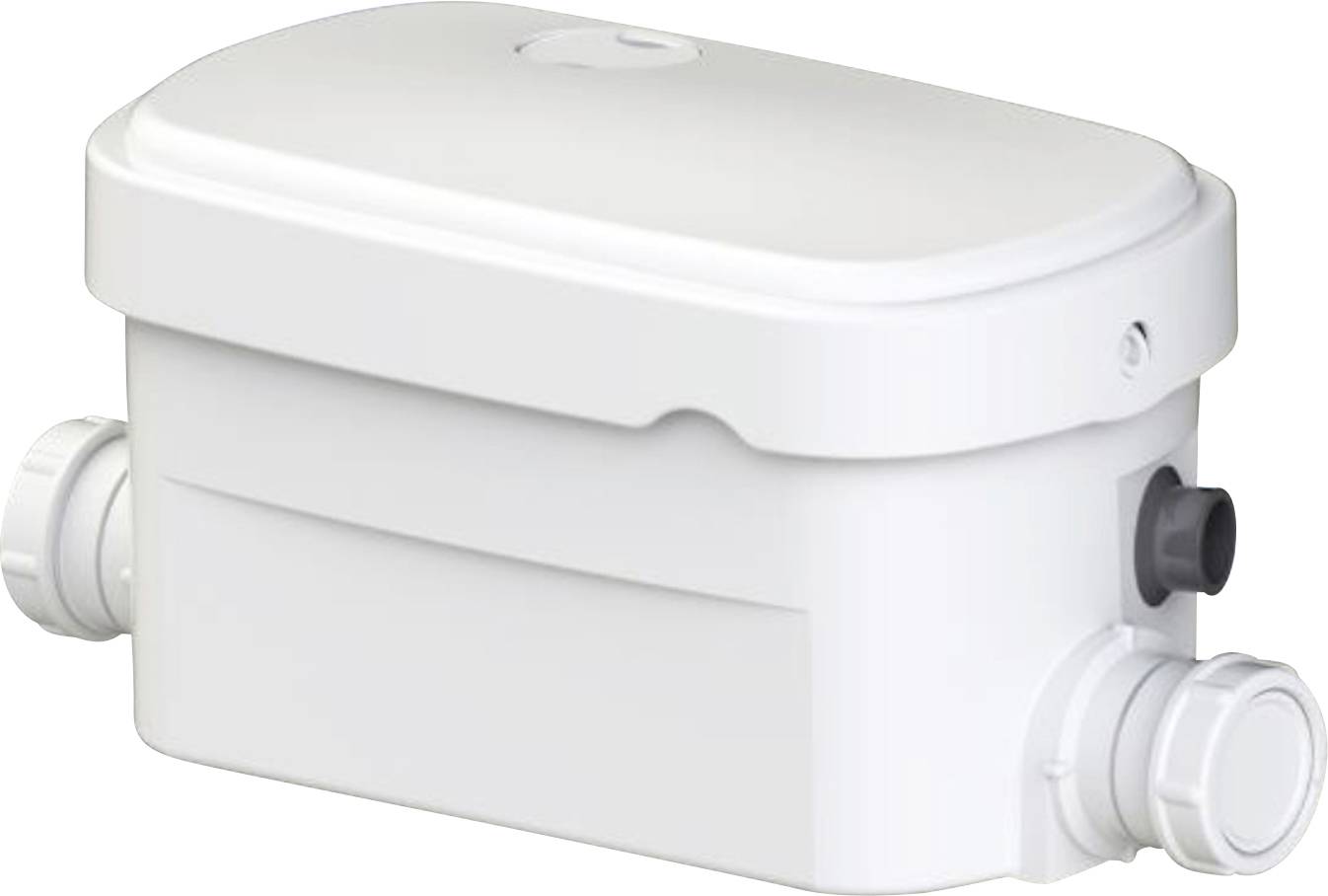

White, rectangular sewage pump with connections on both sides, suitable for use in sanitary installations.

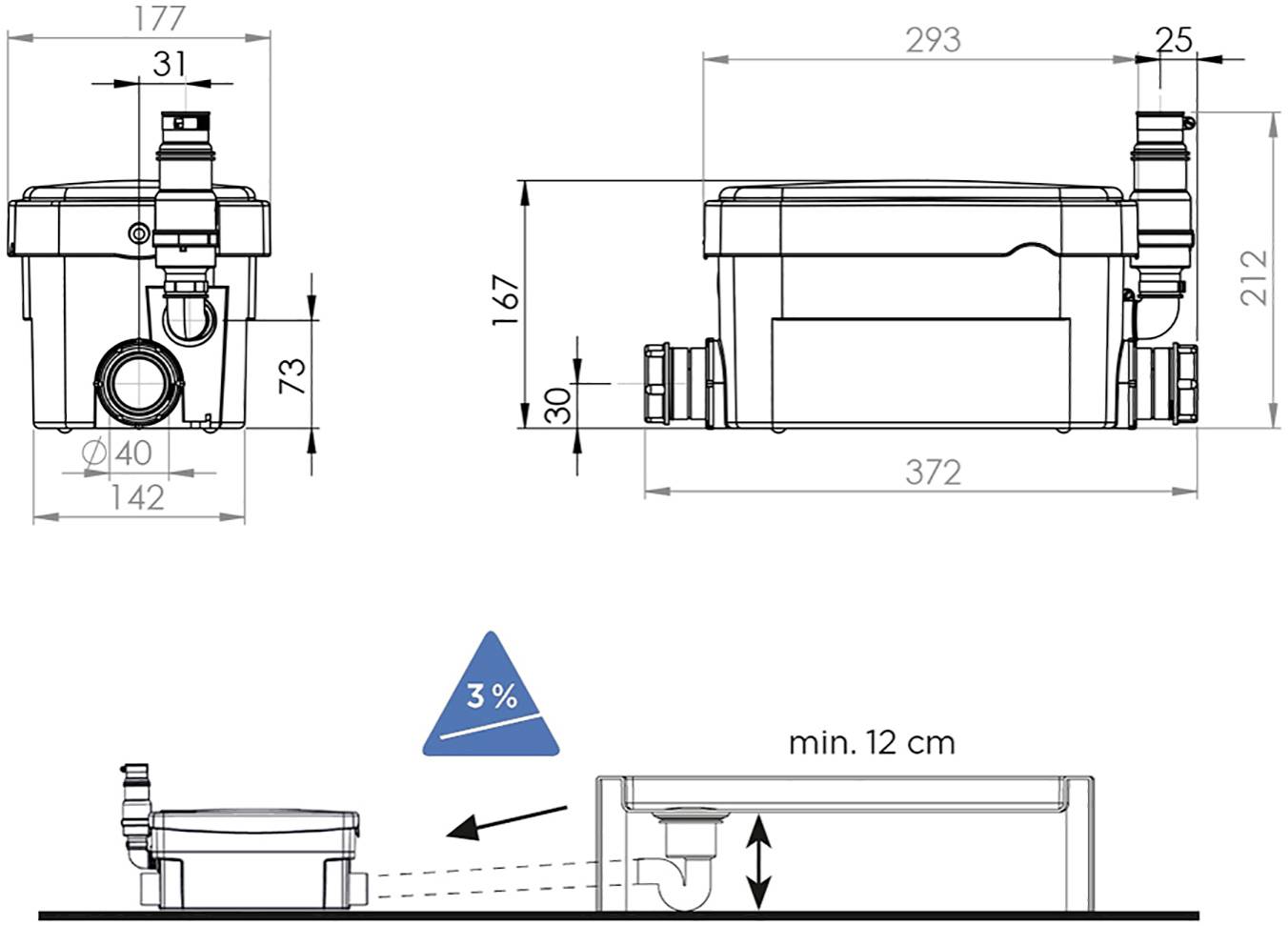

Technical drawing of a sewage pump with dimensional specifications. Shows side view and installation instructions. Gradient: 3%, Minimum height: 12 cm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

max. temperature 40 °C
Nominal current 1.3 A

Product type: Wastewater pump

Max. delivery head: 4 m

Max. feed rate: 4.2 m³/h

Operating voltage: 230 V

Power (P2): 250 W

: IP44

Length: 29.3 cm

Width: 17.7 cm

Dim: (L x W) 29.3 cm x 17.7 cm

Documents & Downloads

Datasheet

Datasheet 2444973 Zehnder Pumpen D-SWH Wastewater pump 4 m

User & Safety Instructions

User & Safety Instructions 2444973 Zehnder Pumpen D-SWH Wastewater pump 4 m

Description

Dirty water lifting system suitable for shower and sink. Overcomes problems with gravity drainage and enables cellar showers, for example.

This text is machine translated.

Features

Compact size for discreet installation
Sound pressure level (1m) at 46 dB
Switch-on height 55 mm
Body height shower cup 12 cm
Prepared double-sided shower inlet DN 40
Pressure outlet DN 32
Canister vent by activated charcoal filter

Scope of delivery

Wastewater pump D-SWH
Non-return valve
User manual.
