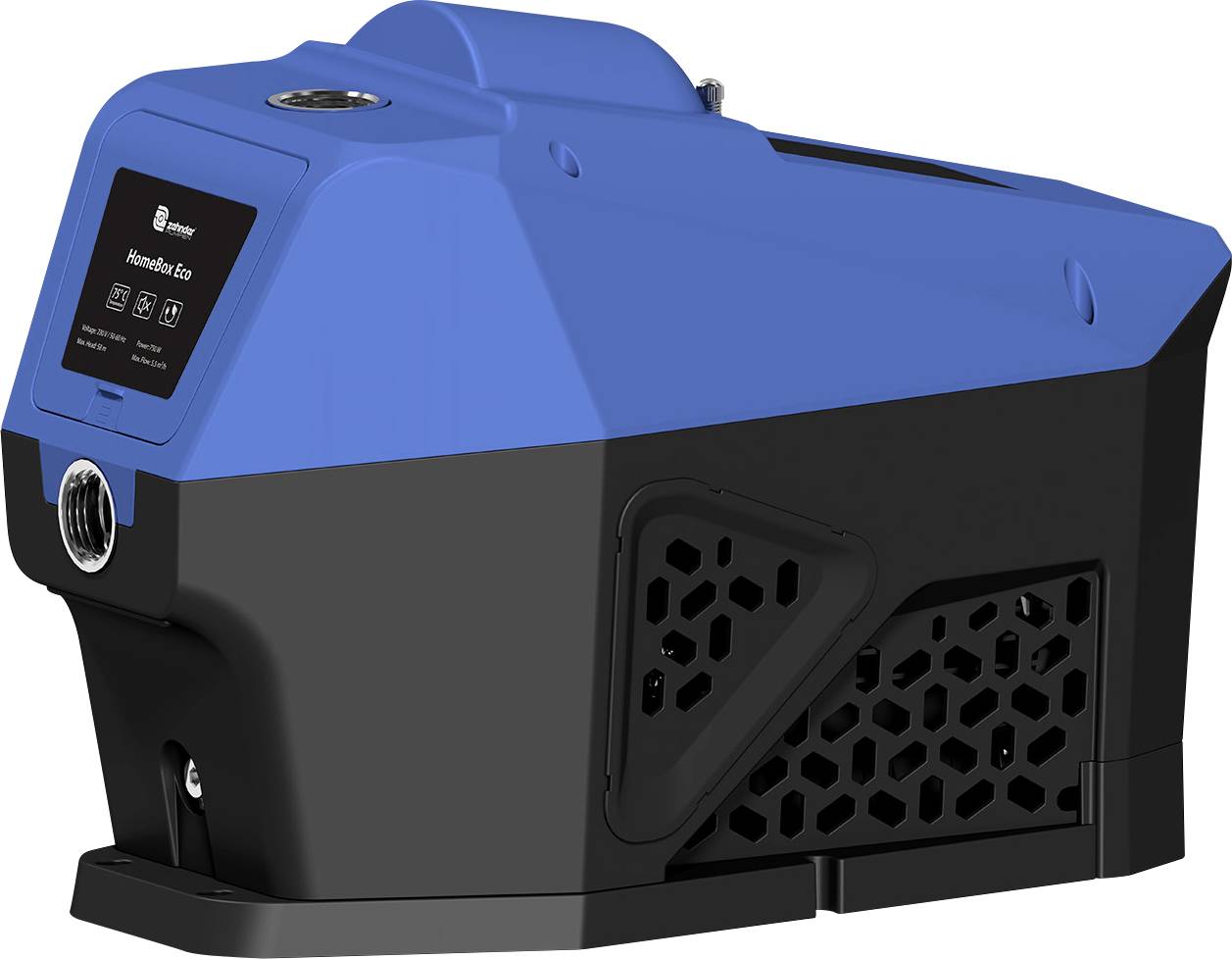

Zehnder Pumpen HomeBox Eco N 24711 Water pressure booster 230 V 5.2 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

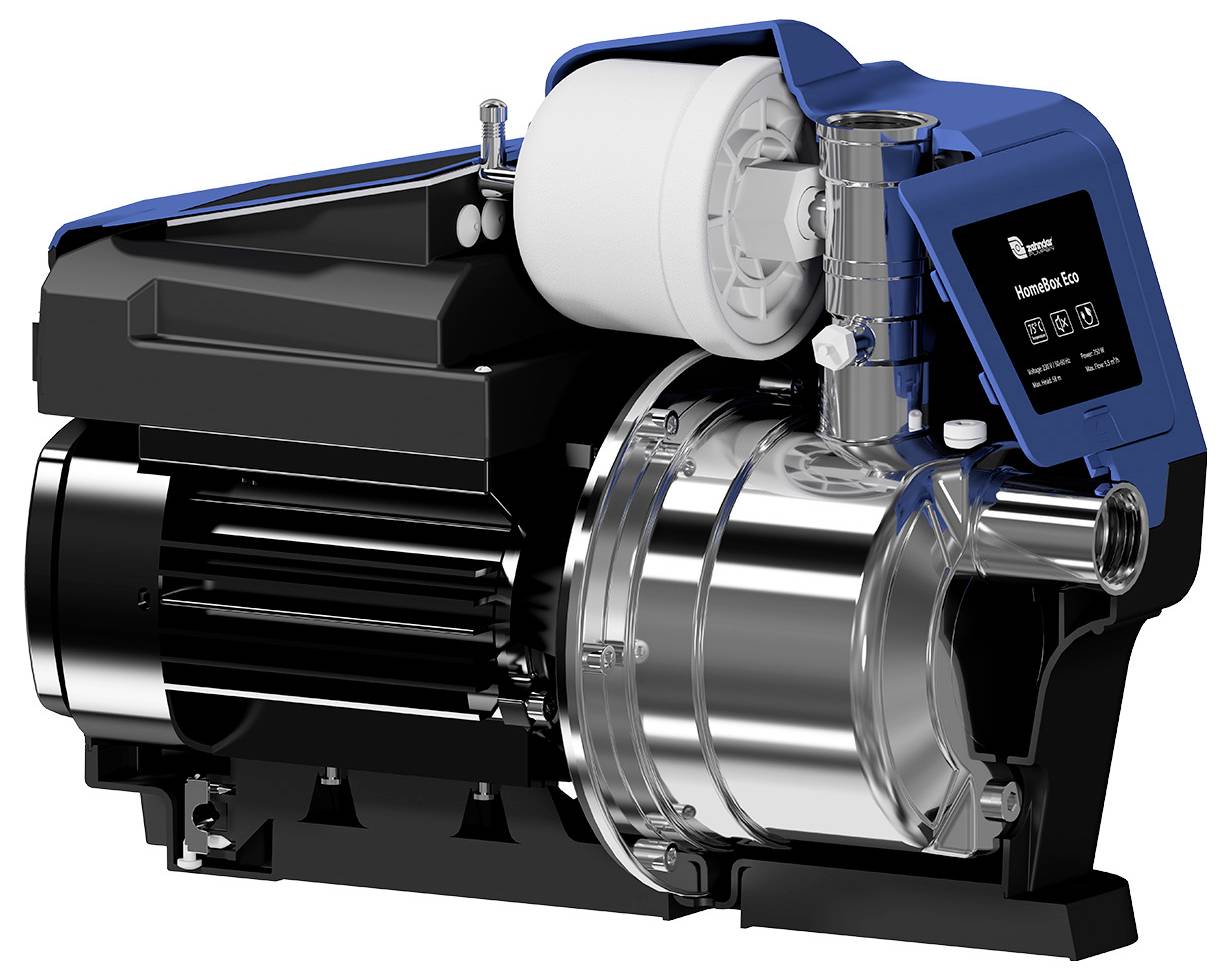

Homebox Eco N Standard priming system
- Normal suction, multi-stage centrifugal pump with permanent magnet motor (IE5) and frequency control
- Fully integrated system for reliable pressure increase at home
- Automatic adjustment of operation to the water requirement
- Adjustable pressure from 1.5 to 5.5 bar (max. Operating pressure 10 bar)
- Built-in 0.3 liter expansion tank for pressure regulation and reduction of pressure surges
- Sound-absorbing case smaller than 50 dB
- Motor winding with built-in thermal winding protection
- Integrated non-return valve on suction and pressure side
- Easy operation via LCD Display
- Integrated dry-running protection
- IP56: Protected against dust and strong water jets
- This text is machine translated.
Technical specifications
- Product type
Water pressure booster
- Operating voltage
230 V
- Power consumption (P1)
750 W
- Power (P2)
600 W
- Max. feed rate
5.2 m³/h
- Max. delivery head
56 m
- Max. discharge pressure
5.6 bar
- Max. cable length
1.35 m
IP56
- Dim
(W x H x D) 220 x 300 x 400 mm
- Width
220 mm
- Height
300 mm
- Depth
400 mm
Doesn't apply
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3759771 Zehnder Pumpen HomeBox Eco N 24711 Water pressure booster 230 V 5.2 m³/h
User & Safety Instructions
User & Safety Instructions 3759771 Zehnder Pumpen HomeBox Eco N 24711 Water pressure booster 230 V 5.2 m³/h
Description
Features
- All necessary components integrated: Pump, sensors, expansion tank, check valves
- Energy-efficient permanent magnet motor (IE5)
- Very quiet operation: Less than 50 dB(A) in typical operation
- Plug & pump: Easy installation & operation
- Compact design
- Suitable for warm water
- WRASapproved
Scope of delivery
- Pump with 1.35 m connection cable and Schuko-connector
System requirements
- For direct connection to the drinking water network in coordination with drinking water supply
Ensure constant water pressure throughout the house
Single and multi-family houses, especially in the event of insufficient water pressure from the public supply network
Improve water pressure at all tapping points such as showers, taps and household appliances
