Zehnder Pumpen S-SWH 190 Wastewater pump 11 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Wastewater pump
- Max. delivery head
11 m
- Max. feed rate
14000 l/h
- Operating voltage
230 V
- Power consumption (P1)
850 W
- Power (P2)
430 W
- Max. size of solids
10 mm
- Hose connector
DN 20
DN 40
DN 50
- Pressure connection
39.0 mm (1 1/4") IT
- Float switch
Yes (built-in)
- Overload protection
Yes
- Length
38.8 cm
- Width
25 cm
- Height
30 cm
- Dim
(L x W x H) 38.8 x 25 x 30 cm
- Weight
7 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1409328 Zehnder Pumpen S-SWH 190 Wastewater pump 11 m
Description

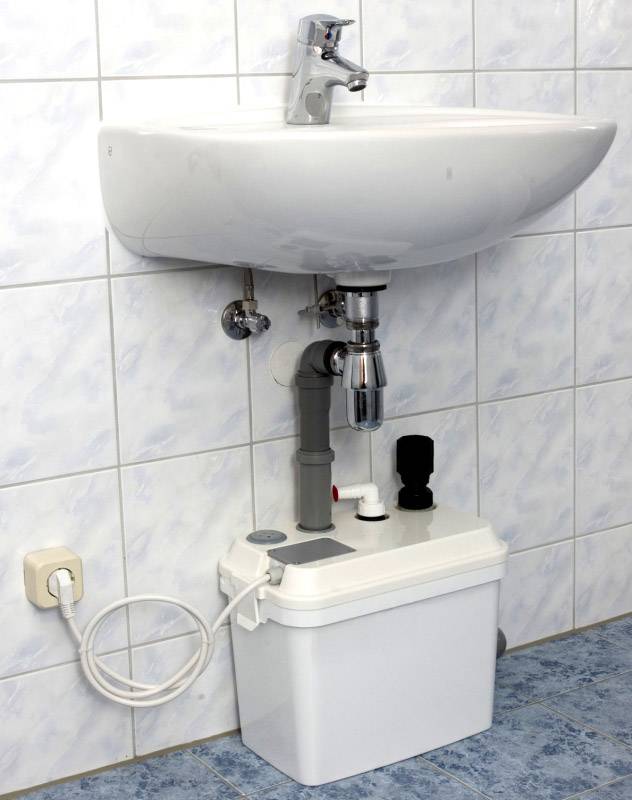

Ideal for use behind water softening systems and for accumulating calorific value condensate. With high-quality mechanical seal from Siliciumcarbit (SiC), motor casing made of 1.4404 stainless steel, motor shaft made of stainless steel. Additional connection of shower, wash basin and a washing machine. Simple cleaning and maintenance by the cover is attached to pump. Pressure outlet 1 1/4" female thread with built-in check valve. Suitable for the conveyance of slightly acidic condensate, aggressive or saline media (max. 15% salt content). To raise sewage free dirty water from domestic application (operating temperature 40°/short-term up to 90°).
This text is machine translated.
This text is machine translated.
Features
- 20 l tank volume
- Acoustic alarm (potential free forwarding).
