Zehnder Pumpen S-UFB 200/40 Wastewater pump 10 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Wastewater pump
- Max. delivery head
10 m
- Max. feed rate
10000 l/h
- Operating voltage
230 V
- Power consumption (P1)
850 W
- Power (P2)
430 W
- Max. size of solids
30 mm
- Hose connector
DN 50
- Pressure connection
41.91 mm (1 1/4") OT
- Float switch
Yes (built-in)
- Length
46 cm
- Width
35 cm
- Height
43.2 cm
- Dim
(L x W x H) 46 x 35 x 43.2 cm
- Weight
8 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1409325 Zehnder Pumpen S-UFB 200/40 Wastewater pump 10 m
Description

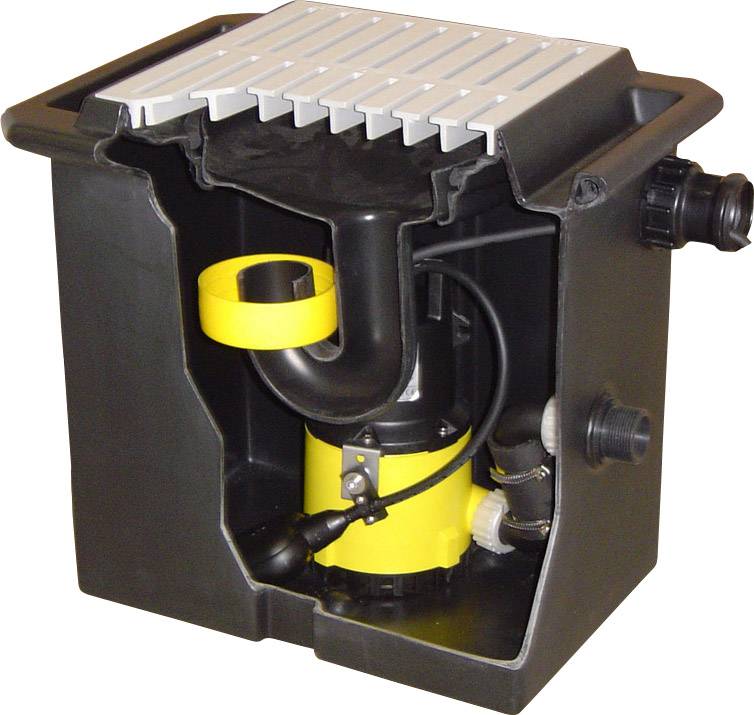

Suitable for use behind water softening systems and for accumulating calorific value condensate. With high-quality mechanical seal from Siliciumcarbit (SiC), motor casing made of 1.4404 stainless steel, motor shaft made of stainless steel. Built-in waste water submersible pump with float switch. With siphon and sand trap. Pressure outlet 1 1/4" male thread with built-in check valve. Grillage cover made of plastic, walkable. Connection for ventilation and cable grommet DN 50 (HT). Supply DN 50 (HT) is loose - can be by
Drilling of the container. For the promotion of slightly acidic condensate, aggressive or saline media (max. 15% salt content). For underground installation in the base plate. Lifting of faeces free dirty water from domestic application (operating temperature 40°/short-term 90°).
This text is machine translated.
Drilling of the container. For the promotion of slightly acidic condensate, aggressive or saline media (max. 15% salt content). For underground installation in the base plate. Lifting of faeces free dirty water from domestic application (operating temperature 40°/short-term 90°).
This text is machine translated.
Scope of delivery
- Wastewater pump, ready to plug in installed
- Grillage cover
- Siphon
- Sand trap
- Inlet connection DN 50.
