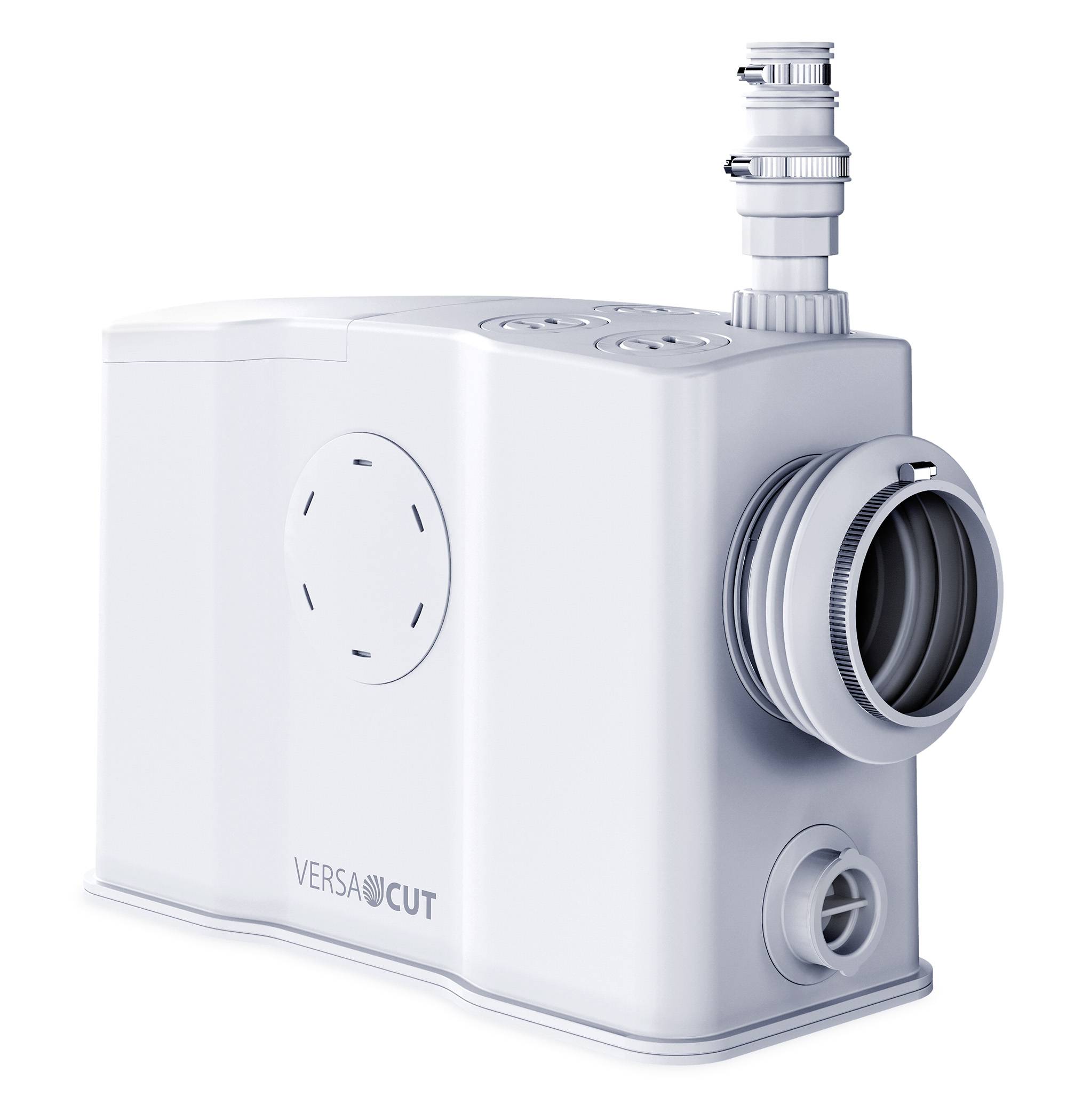

Buy Zehnder Pumpen VersaCut Mini pump station 7 m

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

2-in-1 Small lifting system according to DIN EN 12050-3: Connection of standing or wall WC possible
High-performance cutter unit made of corrosion-resistant special steel 1.4112 with particularly high hardness, wear-resistance and cutting power, reliably reduces moist cloths and hygiene articles
Several intake options: Front for connecting a EURO-toilet, 2 side feeds with backwater valve as well as 2 additional feeds at the container lid (optionally available at 3 positions), lower inlet height: Only 50 mm (sideways), e.g. for connecting a shower
Collecting tank made of ABS, approx. 11 l volume
Double seal through mechanical seal and shaft sealing ring
Robust, wet set up pump pressure outlet 1 1/4" IG with integrated non-return valve, outlet either horizontal or vertical (90°-arm)
Container ventilation via activated carbon filter or alternatively via riser line DN 40
Freely selectable position of the tank ventilation on the lid
Potential-free contact is already prepared (separate cable, no clamping necessary)
Integrated Alarm signal in case of malfunction
Media temperature: Max. 40 °C, temporarily higher
Protection class IP 68 – fully flood-proof
This text is machine translated.

Datasheet 3759767 Zehnder Pumpen VersaCut Mini pump station 7 m

User & Safety Instructions 3759767 Zehnder Pumpen VersaCut Mini pump station 7 m

Small sewage lifting unit with high-performance cut unit
Connection of standing or wall WC
Optimised cutting unit made of corrosion-resistant special steel 1.4112 with particularly high hardness, wear resistance and cutting power
Collecting container made of ABS for connection to EUROWC with minimum inlet height
Container ventilation via activated carbon filter, ventilation via riser pipe DN 40 possible
Robust wet-mounted pump
Integrated Alarm signal in case of malfunction
Pressure outlet 11/4" female thread with built-in non-return valve on top, outlet horizontal or vertical (90° bend)
Media temperature max. 40°C, short-term 60°C.
Protection class IP 68 fully flooded

Plug-in mounted with 1.5 m connection cable and Schuko-plug
Accessories: Drive fuse, feed supports DN 40, pressure connection 11/4" female thread/AG, Ø32 and Ø40 connection, small parts and mounting materials

Individual WC lifting system for limited use according to DIN EN 12050-3
In the private area below the local backup level, e.g. in the basement area or during the old buildings being renovated
Connection of a toilet, sink, shower or bidet
