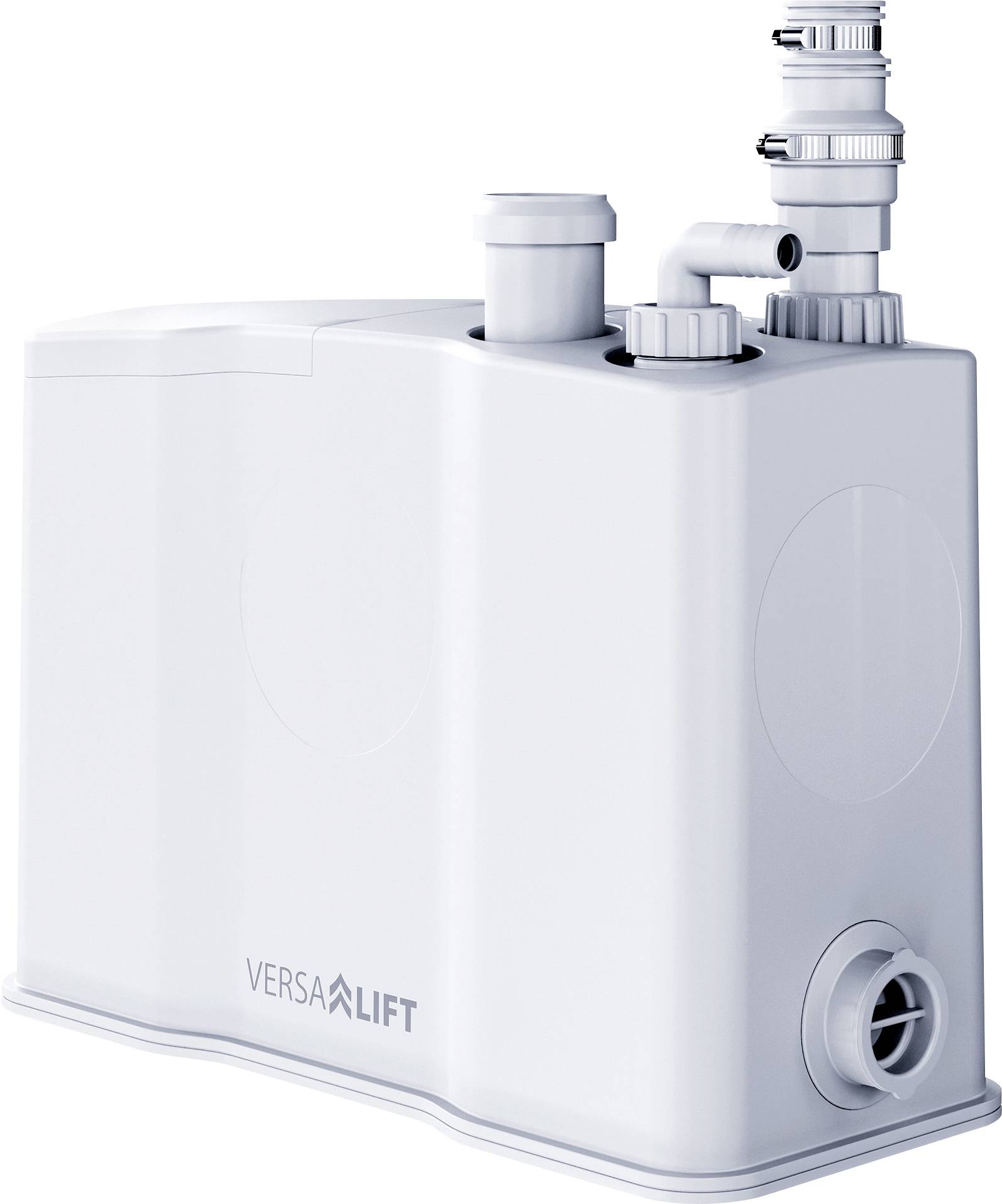

Buy Zehnder Pumpen VersaLift 500 Wastewater pump 10.2 m

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Compact design allows installation behind the front wall
Very quiet running
Freely selectable position of the tank ventilation on the lid
Very small inlet height (50 mm, sideways), e.g. for connecting a shower
IP 68 fully flooded
Potential-free contact already prepared (separate cable), no clamping on the controller is needed
This text is machine translated.

Datasheet 3759769 Zehnder Pumpen VersaLift 500 Wastewater pump 10.2 m

User & Safety Instructions 3759769 Zehnder Pumpen VersaLift 500 Wastewater pump 10.2 m

Compact design allows installation behind the front wall
Plug and install - easy to install
Collecting tank made of ABS with approx. 11 l tank volume
Double seal through mechanical seal and shaft sealing ring
Potential-free contact for external alarm or washing machine stop
Easy cleaning and maintenance by simple removal of the pump unit without tools
Prepared double-sided shower inlet DN 40 (from the bottom edge of the container to the middle of the pipe shower inlet only 50 mm)
Operating temperature 40 °C (short-term / 2 min to 90 °C)
Flexible pressure outlet horizontal or vertical with integrated non-return valve
Container ventilation through activated carbon filter or via riser pipe DN 40
IP 68 protection

Promotion of domestic waste water without feces from washing machine, shower, wash basin, etc.
For overflow installation in frost-protected rooms below the local backup level
