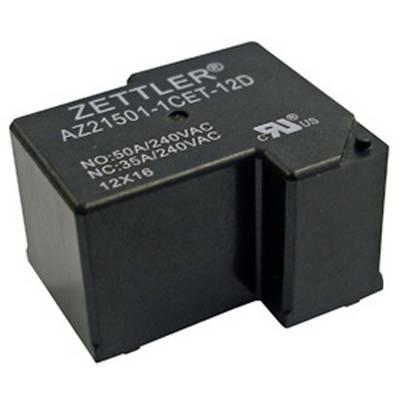

Zettler Electronics AZ21501-1CET-12DF PCB relay 12 V DC 50 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
30 V DC
Datasheet (PDF)
923 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 4.03
15
7% = € 0.27
€ 3.76
25
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 4.03 / piece)
€
Technical specifications
- Product type
PCB relay
- Type
AZ21501-1CET-12DF
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
15.6 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
96 Ω
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching voltage (max.)
30 V DC
- Switching current (max.)
50
- Max. switching capacity
1500 W
- Response time
15 ms
- Durability
1 x 10E7
- Min. temperature
-55 °C
- Max. temperature
+85 °C
- Length
32.50 mm
- Width
27.60 mm
- Height
20.50 mm
- Dim
(L x W x H) 32.50 x 27.60 x 20.50 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2340684 Zettler Electronics AZ21501-1CET-12DF PCB relay 12 V DC 50 1 change-over 1 pc(s)
