Zettler Electronics AZ2704-2A-12DTWF PCB relay 12 V DC 30 A 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
2 makers
Switching voltage (max.)
150 V DC
400 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Product type
PCB relay
- Type
AZ2704-2A-12DTWF
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
16.8 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
75 Ω
- Contact type
2 makers
- Contact material
AgSnO
- Switching voltage (max.)
150 V DC
400 V AC
- Switching current (max.)
30 A
- Max. switching capacity
840 W
8310 VA
- Connection
Solder pins
- Insulation voltage
1500 V
- Min. temperature
-40 °C
- Max. temperature
+105 °C

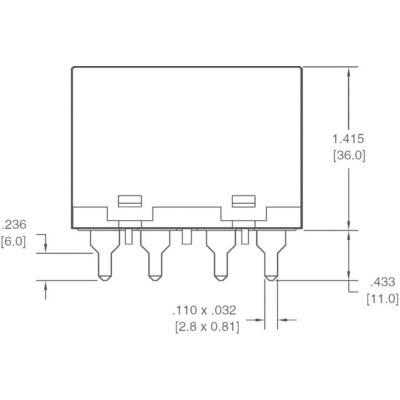

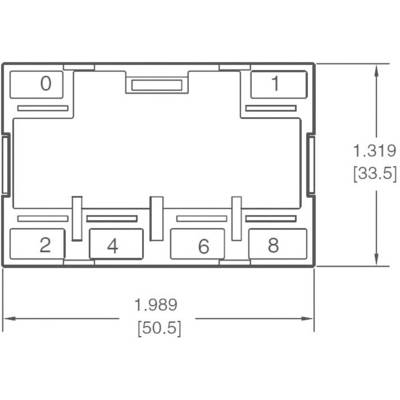

- Length
50.5 mm
- Width
33.5 mm
- Height
36 mm
- Dim
(L x W x H) 50.5 x 33.5 x 36 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 507757 Zettler Electronics AZ2704-2A-12DTWF PCB relay 12 V DC 30 A 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 507757 Zettler Electronics AZ2704-2A-12DTWF PCB relay 12 V DC 30 A 2 makers 1 pc(s)
Certificate
Certificate 507757 Zettler Electronics AZ2704-2A-12DTWF PCB relay 12 V DC 30 A 2 makers 1 pc(s)
