Zettler Electronics AZ9571-1C-3DSE PCB relay 3 V DC 1 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
3 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
60 V DC
125 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
Technical specifications
- Product type
PCB relay
- Type
AZ9571-1C-3DSE
- Coil nominal voltage
3 V DC
- Min. pick-up voltage
2.4 V DC
- Max. pick-up voltage
6 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
60 Ω

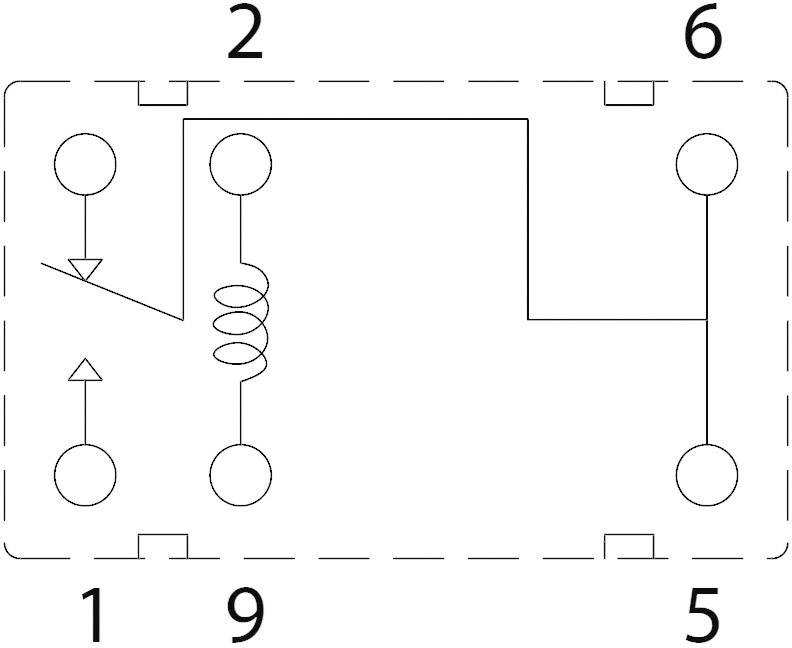

- Contact type
1 change-over
- Contact material
Ag + Au
- Switching voltage (max.)
60 V DC
125 V AC
- Switching current (max.)
1 A
- Max. switching capacity
30 W
62.5 VA
- Connection
Solder pins
- Insulation voltage
400 V
- Min. temperature
-40 °C
- Max. temperature
+70 °C

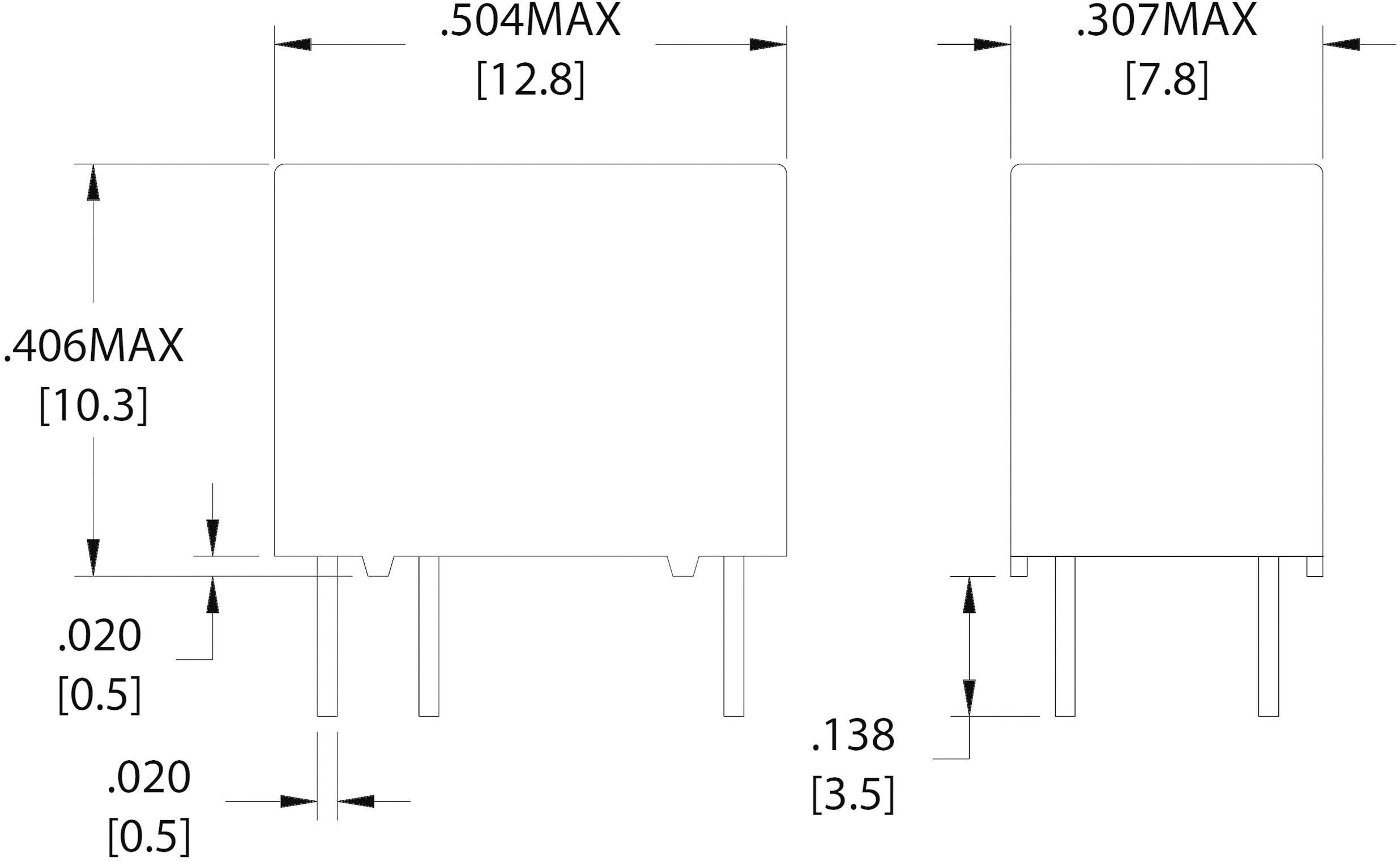

- Length
12.8 mm
- Width
7.8 mm
- Height
10.3 mm
- Dim
(L x W x H) 12.8 x 7.8 x 10.3 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 507450 Zettler Electronics AZ9571-1C-3DSE PCB relay 3 V DC 1 A 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 507450 Zettler Electronics AZ9571-1C-3DSE PCB relay 3 V DC 1 A 1 change-over 1 pc(s)
Description
Sealed version for automatic wave soldering.
