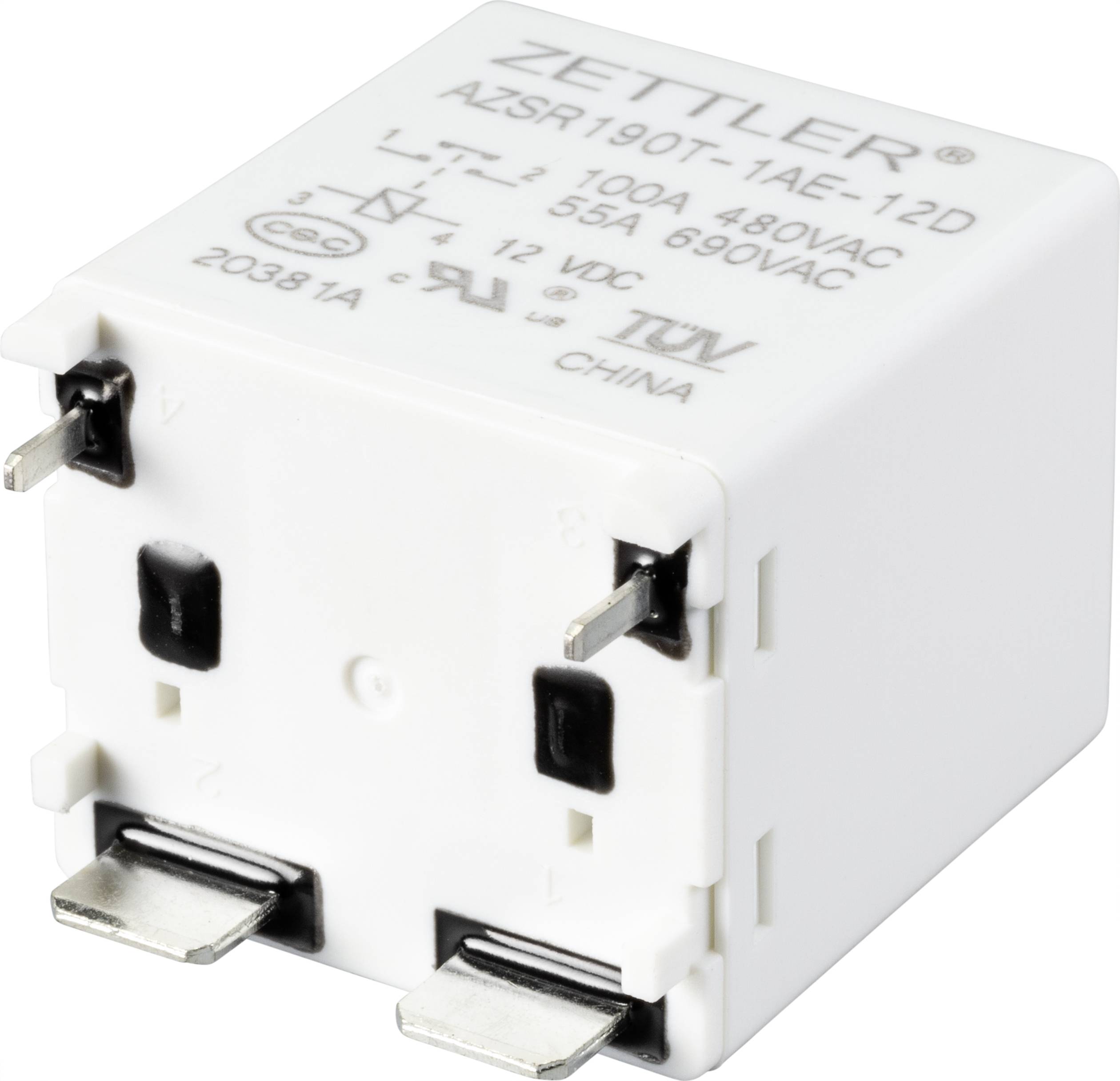

Zettler Electronics AZSR190T-1AE-12D Power relay 12 V DC 100 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Power relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Switching voltage (max.)
800 V AC
Switching current (max.)
100 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
Zettler 100 A miniature high current relay, 12 V
Our service for you
Technical specifications
- Product type
Power relay
- Type
AZSR190T-1AE-12D
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
4.8 V DC
- Max. pick-up voltage
13.2 V DC
- Resistance (coil)
75 Ω
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
800 V AC
- Switching current (max.)
100 A
- Max. switching capacity
48000 VA
- Connection
Pins
- Insulation voltage
800 V AC
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Weight
85 g
- Factory colour
White
- Length
38 mm
- Width
33 mm
- Height
43 mm
- Dim
(L x W x H) 38 x 33 x 43 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
