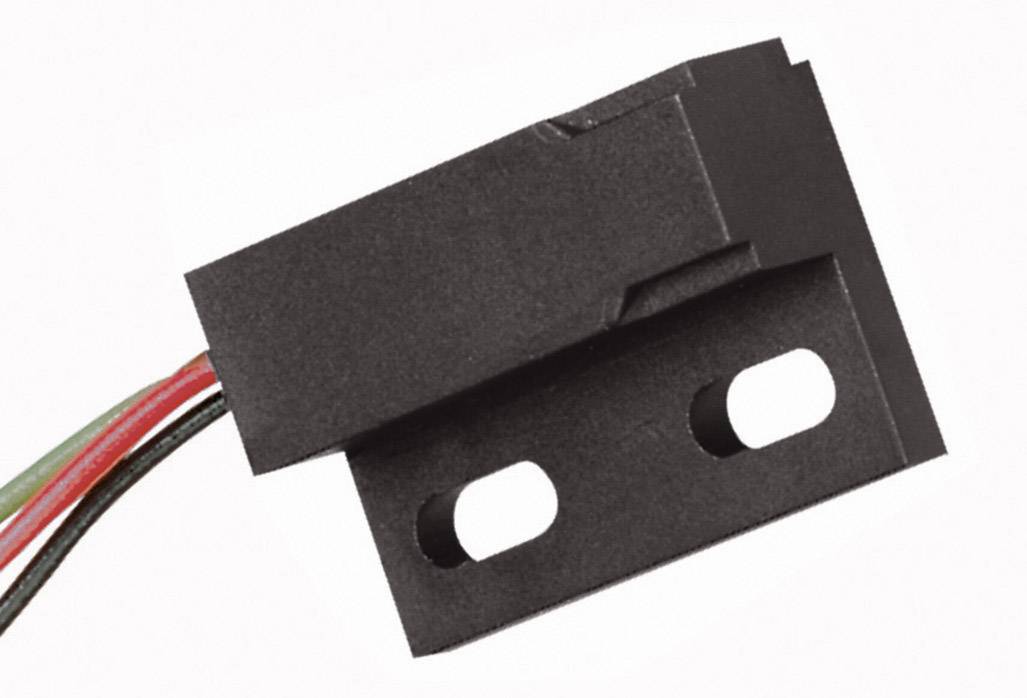

ZF Magnetic field detector MP102103 4.5 - 24 V DC Reading range: +195 - +400 Gs Cable, open end
EAN:
Part number:
Item no:
Product type
Magnetic field detector
Min. operating voltage
4.5 V DC
Max. operating voltage
24 V DC
Connector
Cable, open end
Reading range
+195 - +400 Gs
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
14-day return policy included
Technical specifications
- Output voltage 500 mV
- Type (cable): 3-pin
- Product type
Magnetic field detector
- Type
MP102103
- Min. operating voltage
4.5 V DC
- Max. operating voltage
24 V DC
- Operating voltage
4.5 - 24 V DC
- Operating current
12 mA
- Connector
Cable, open end
- Cable length
15.24 cm
- Reading range (min.)
+195 Gs
- Reading range (max.)
+400 Gs
- Reading range
+195 - +400 Gs
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Length
28.58 mm
- Width
9.53 mm
- Height
19.05 mm
- Dim
(L x W x H) 28.58 x 9.53 x 19.05 mm
- RoHS-compliant
Yes
Description
Digital Hall sensor with mounting flanges in a compact plastic housing. 3 different directions of measurement. available. Stable output signal over the entire temperature range. Can be used for non-stabilized supply voltage. Reverse polarity protection up to 24 V/DC. Open collector output compatible with bipolar and CMOS logic circuits in connection with a corresponding pull-up resistor. Against the North Pole activated unipolar switch: output switches to low (Off) when the magnetic field on the sensor exceeds the activation threshold or output switches to high (a) if the magnetic field on the sensor falls below the threshold.
Application: Open switch, limit switches, Turposition.
This text is machine translated.
Application: Open switch, limit switches, Turposition.
This text is machine translated.
Hints
The sensor needs between output (green) and Vcc (red) an external pull-up resistor, the resistance value of the supply voltage depends.
