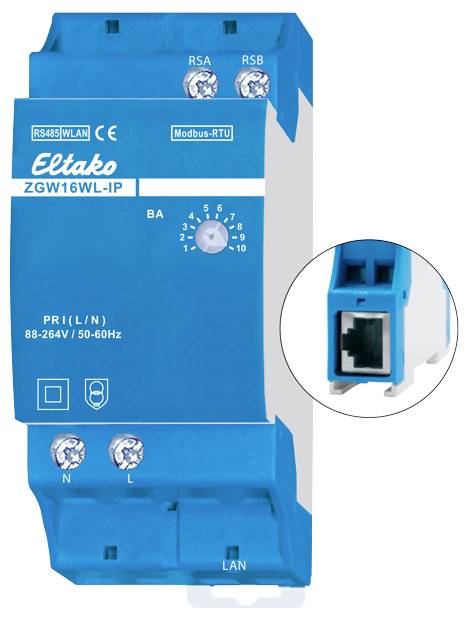

ZGW16WL-IP Eltako Modbus electricity meter/MQTT gateway DIN rail
EAN:
Part number:
Item no:
Technical specifications
- Product type
Modbus electricity meter/MQTT gateway
- Series
Eltako
- Dim
(W x H x D) 45.0000 x 89.0000 x 64.0000 mm
IP20
- Operating voltage
88 V DC
264 V DC
- Mounting type
DIN rail
- Width
45.0000 mm
- Height
89.0000 mm
- Depth
64.0000 mm
- Hub
Not required, optional for remote access
Doesn't apply
- Weight
0.1410 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398228 ZGW16WL-IP Eltako Modbus electricity meter/MQTT gateway DIN rail
Description
Gateway with IP interface via WLAN or LAN. Standby loss of only 0.9 watt. DIN-EN 60715 TH35 DIN rail mounting device. 2 division unit = 36 mm wide, 58 mm deep. The WLAN connection uses 2.4 GHz frequency band. The LAN connection is done via RJ45 plug with 10/100Base-T. The IP-connection takes place via LAN or WLAN. The gateway transmits data from any Eltako-Modbus power meter via the MQTT protocol and REST API. The data is transferred from the ZGW16WL-IP to any external MQTT broker. For more details on MQTT, see: www.mqtt.org. Commissioning and viewing of the current counter values as well as the history are possible both via the Eltako Connect APP and the web interface. Configurations and updates can be easily carried out via the web interface. A REST API is available from the device's online product page.
