Buy Ziehl MU2000K T236056 Transducer

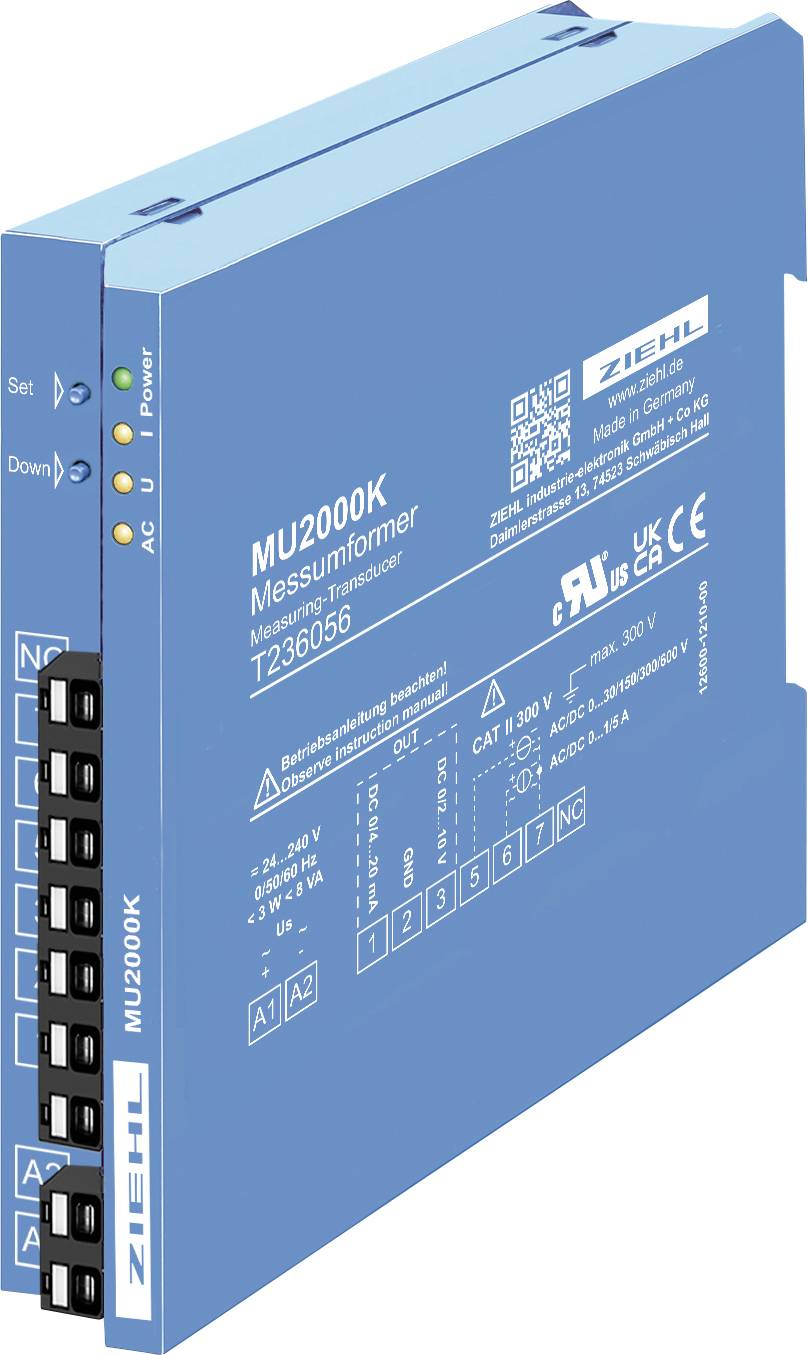

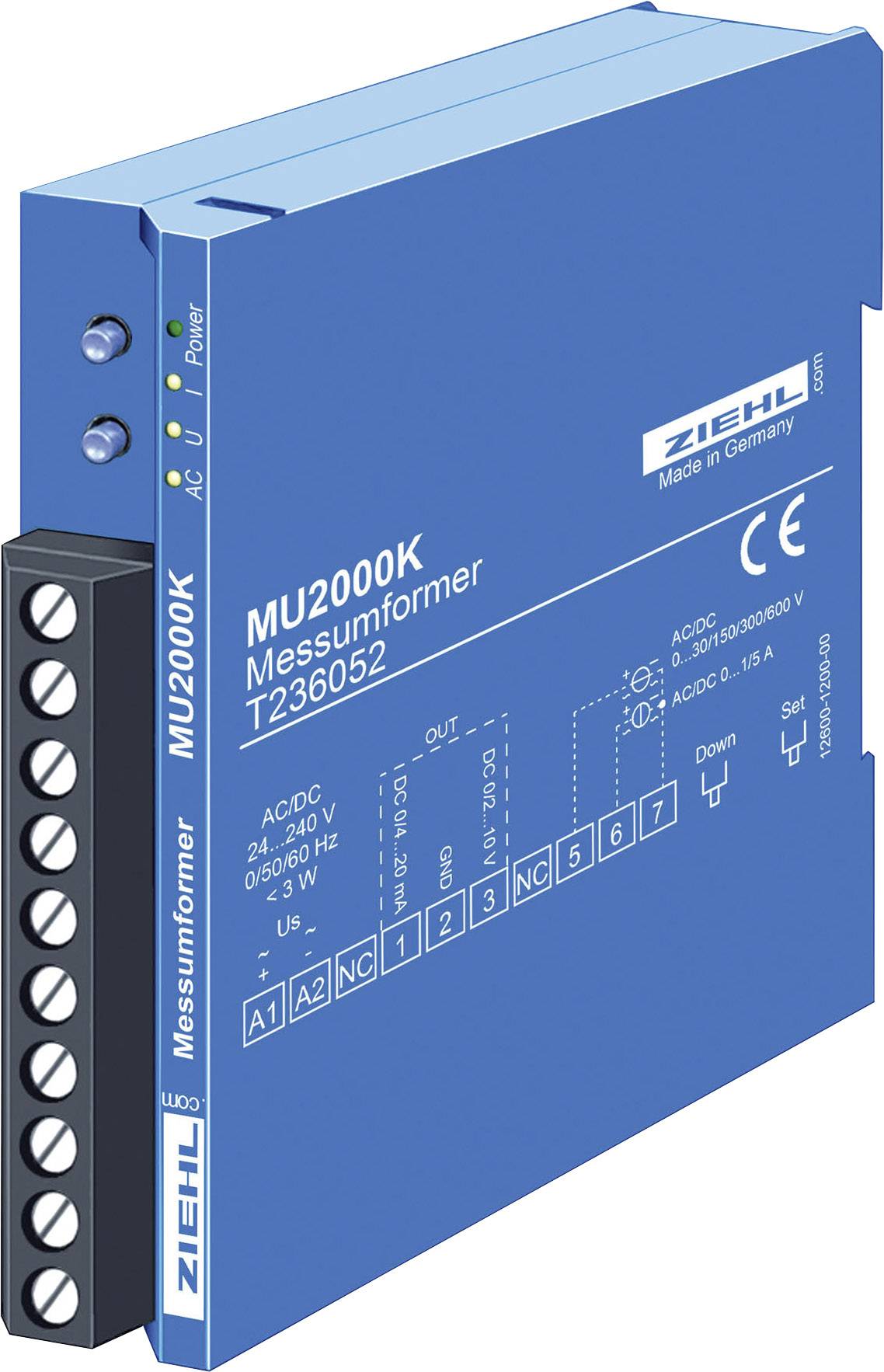

Blue ZENI M2000K measurement module shown in 3D, with terminal block and status LEDs on the front edge.

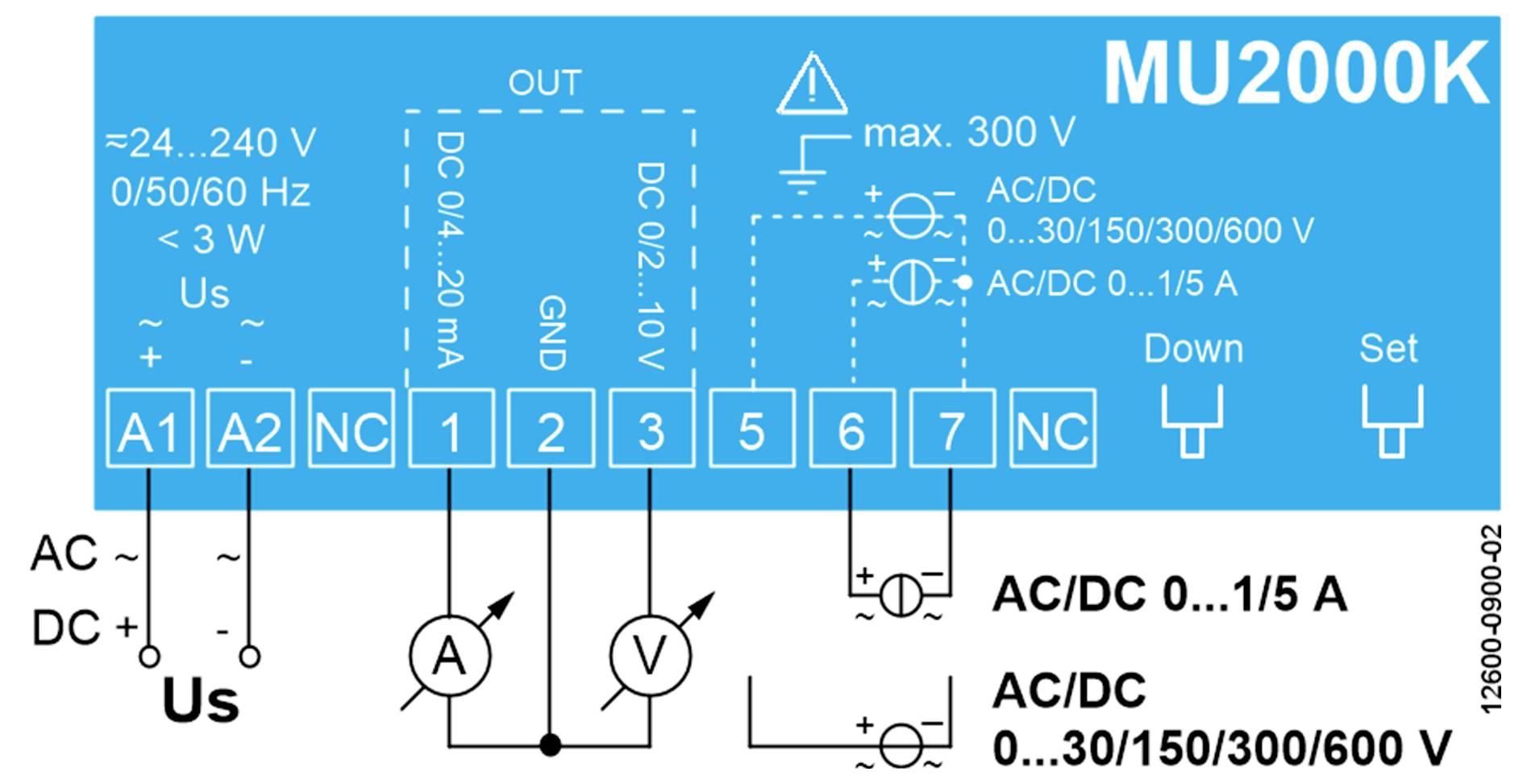

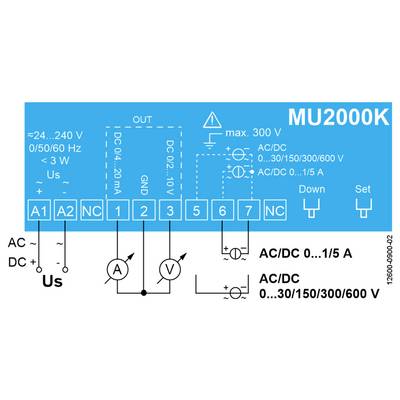

Wiring diagram for an MU2000K power meter, showing AC/DC supply terminals A1, A2, NC and input terminals for current and voltage measurement.

1/2

Product type

Transducer

Type

MU2000K

Probe inputs

Messeingang Spannung: AC/DC 0-30/150/300/600 V. 80-120 V. Ri = 500 kΩ. max. 600 V;max. 300 V gegen GND Genauigkeit: DC ≤ 0.1% AC ≤ 0.5% (50/60 Hz) vom Endwert;Temperaturdrift < 0.02 %K Messeingang Strom: AC/DC 1A. 5A. max. 7.5A/4s. 25A/1s. 30 mΩ Genauigkeit: DC ≤ 0.1% AC ≤ 0.5% (50/60 Hz) vom Endwert;Temperaturdrift < 0.02 %K

Operating voltage

24 VDC 48 V/DC 110 V/AC 230 V/AC 24 V/AC 48 V/AC 110 V DC 230 V DC

Datasheet (PDF)

Fast track dispatch on Thu, 24 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 180.66 / piece)

€ 180.66

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Universal transducer type MU 2000 K AC and DC

AC and DC measurement without having to change possible
Zero point and full scale for further measuring ranges can be scaled in any way by the user.
Electrical isolation between input, output and control voltage

Technical specifications

Control voltage Us: 24 V AC/DC-240V, 0/50/60 Hz< 3W< 8VA; 20.4 - 297V, AC 20 - 264 V
Measuring input voltage: AC/DC 0-30/150/300/600 V, 80-120 V, Ri = 500 kΩ, max. 600 V; max. 300 V against GND
Accuracy: DC ≤ 0.1% AC ≤ 0.5% (50/60 Hz) of the final value; temperature drift< 0.02% K
Measuring input current: AC/DC 1 A, 5 A, max. 7.5A / 4s 25 A/1 s, 30 mΩ
Accuracy: DC ≤ 0.1% AC ≤ 0.5% (50/60 Hz) of the final value; temperature drift< 0.02% K.

Type: MU2000K

Product type: Transducer

Probe inputs: Messeingang Spannung: AC/DC 0-30/150/300/600 V. 80-120 V. Ri = 500 kΩ. max. 600 V;max. 300 V gegen GND Genauigkeit: DC ≤ 0.1% AC ≤ 0.5% (50/60 Hz) vom Endwert;Temperaturdrift < 0.02 %K Messeingang Strom: AC/DC 1A. 5A. max. 7.5A/4s. 25A/1s. 30 mΩ Genauigkeit: DC ≤ 0.1% AC ≤ 0.5% (50/60 Hz) vom Endwert;Temperaturdrift < 0.02 %K

Operating voltage: 24 VDC
48 V/DC
110 V/AC
230 V/AC
24 V/AC
48 V/AC
110 V DC
230 V DC

Documents & Downloads

Datasheet

Datasheet 1462373 Ziehl MU2000K T236056 Transducer

User & Safety Instructions

User & Safety Instructions 1462373 Ziehl MU2000K T236056 Transducer

Description

Measuring transducer MU 2000 K can be used as input signals ac and dc voltages up to 600 V, as well as direct and alternating currents of 0 … 1/5 A measure. There are pre-programd measurement ranges are available. Further measuring range can easily be scaled.

The output signals 0/2-10V and 0/4-20mA are galvanically isolated from the measurement input and control voltage. With its universal power supply AC/DC 24-240 V, the transducer on all standard supply voltages can be operated.

The MU 2000 K is suitable for example for the measurement of voltages and charging currents of batteries. As a measuring transducer for AC signals, it can be voltages and currents in self-generation plants.

This text is machine translated.

Hints

Zero point and full scale for further measuring ranges can be scaled in any way by the user.
