Ziehl STWA 2 AH Current transformer 100 A (max.)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Technical specifications
- Inner Ø for conductor: 11 mm
- Type
STWA 2 AH
- Probe inputs
0 - 20/100 A
- Outputs
4 -20 mA/DC
- Operating voltage
9 - 30 V / DC
- Dim
(W x H x D) 36 x 42 x 56 mm
- Depth
56 mm
- Height
42 mm
- Width
36 mm
- Amperage reading range (max.)
100 A
- Output current
20 mA
- Operating voltage
12 V DC
24 V DC
30 V DC
- Product type
Current transformer
Documents & Downloads
Datasheet
Datasheet 198997 Ziehl STWA 2 AH Current transformer 100 A (max.)
User & Safety Instructions
User & Safety Instructions 198997 Ziehl STWA 2 AH Current transformer 100 A (max.)
Conformity certificate
Conformity certificate 198997 Ziehl STWA 2 AH Current transformer 100 A (max.)
Description

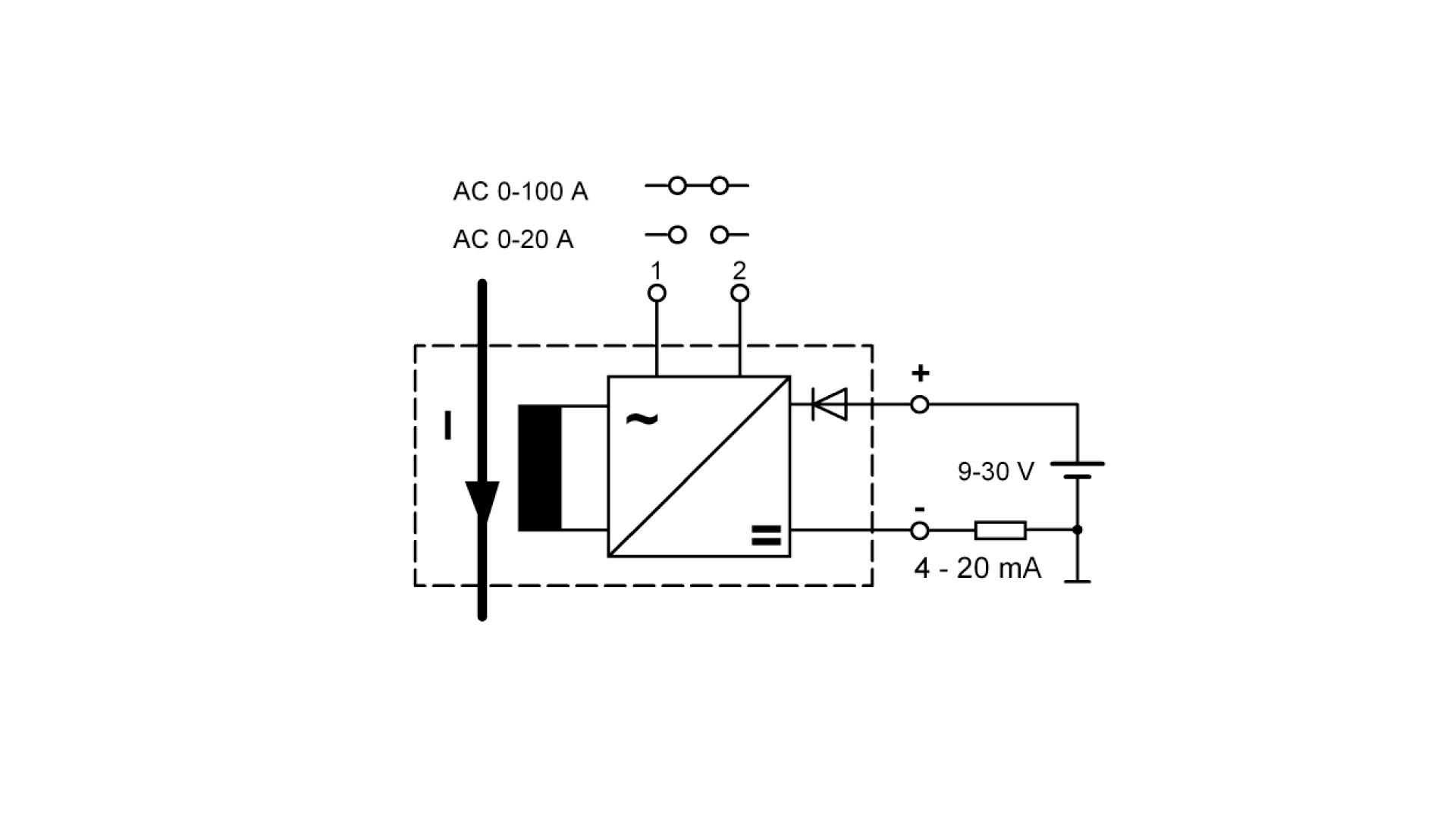

Space-saving converter for AC currents. Conversion of AC 0 - 15 A at DC 0 - 20 mA (STWA 1 AH) or AC 0 - 20/100 A of DC 4 to 20 mA (STWA 2 AH), with electrical isolation. Multiple looping of the conductor reduces the measuring range. For larger currents, the current transformer in the secondary circuit will be razed into a large current transformer The converter can be snapped onto a DIN rail or attached with 2 screws M4 The connection terminals are pluggable.
