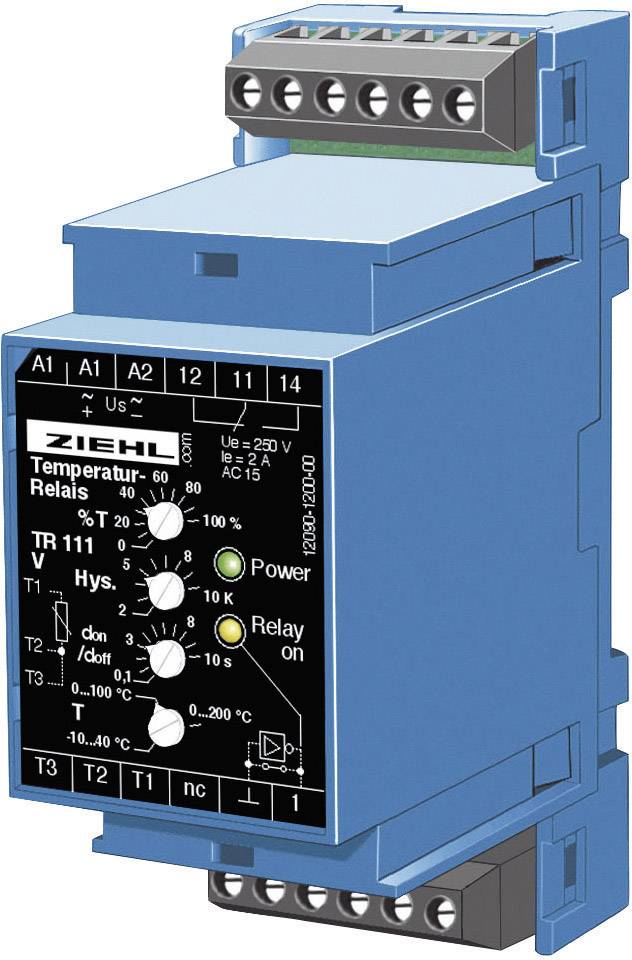

Ziehl TR 111 Temperature controller Pt100 -10 up to +200 °C 5 A relay (L x W x H) 58 x 35 x 90 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Operating voltage
24 V DC
48 V DC
110 V AC
230 V AC
Max. temperature reading
+200 °C
Outputs (thermostats)
5 A relay
No. of relay outputs
1
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Product type
Temperature controller
- Type
TR 111
- Operating voltage
24 V DC
48 V DC
110 V AC
230 V AC
- Reading range
-10 up to +200 °C
- Max. temperature reading
+200 °C
- Min. temperature reading
-10 °C
- Outputs (thermostats)
5 A relay
- No. of relay outputs
1
- Dim
(L x W x H) 58 x 35 x 90 mm
- Height
90 mm
- Length
58 mm
- Width
35 mm
- Sensor type
Pt100
- Manufacturer part #
T 224107.CO
- Mounting type
DIN rail
- Sensor type
Pt 100
- Operating voltage
24 - 240 V DC/AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 197448 Ziehl TR 111 Temperature controller Pt100 -10 up to +200 °C 5 A relay (L x W x H) 58 x 35 x 90 mm
Description
Temperature monitor and controller TR 111 V are suitable for the application as temperature monitor or as electronic two-step controllers with high accuracy of repetition 3 measuring ranges in one device, adjustable hysteresis and time delay as well as the option of selection between rest and implementation of full load current make them universally applicable. The temperature monitor and controller serve as protection from increase of temperature in processes, systems and machines. LED display for network and switch status of the relay
Scope of delivery
- Sensors are not a part of delivery
Hints
Sensoren bitte seperat bestellen!
