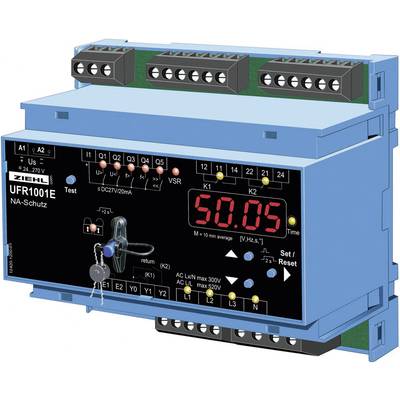

Ziehl UFR1001E Voltage/frequency monitoring relay No. of relay outputs: 2 No. of digital inputs: 1
EAN:
Part number:
Item no:
Product type
Voltage/frequency monitoring relay
No. of relay outputs
2
Operating voltage
24 V DC
48 V DC
110 V AC
230 V AC
Type
UFR1001E
Probe inputs
1
Datasheet (PDF)
Number
Total (€ 511.76 / piece)
€ 575.63
-11 %
€
Only 3 Piece(s) available
Highlights & Details
Ziehl UFR1001E 24 - 270 V DC AC Voltage Monitoring Relay
- Ideal for voltage and frequency monitoring
- Plug & Play by preset limit values
- Lead-sealable
Technical specifications
- Type
UFR1001E
- Product type
Voltage/frequency monitoring relay
- No. of relay outputs
2
- Probe inputs
1
- Outputs
2 relay 6 A/250 V/AC
- Operating voltage
24 V DC
48 V DC
110 V AC
230 V AC
- Dim
(L x W x H) 55 x 105 x 90 mm
- No. of digital inputs
1
- Mounting depth
55 mm
- Weight
250 g
- Weight, information
approx.
- Width
105 mm
- Height
90 mm
- Length
55 mm
Documents & Downloads
Datasheet
Datasheet 197966 Ziehl UFR1001E Voltage/frequency monitoring relay No. of relay outputs: 2 No. of digital inputs: 1
User & Safety Instructions
User & Safety Instructions 197966 Ziehl UFR1001E Voltage/frequency monitoring relay No. of relay outputs: 2 No. of digital inputs: 1
User & Safety Instructions 197966 Ziehl UFR1001E Voltage/frequency monitoring relay No. of relay outputs: 2 No. of digital inputs: 1
Description
Use as a power decoupling relay in the feed-in of self-generation plants, particularly photovoltaic systems into the low voltage power supply according to VDE-AR-N 4105 and into the medium-voltage network in accordance with BDEW directive. Monitoring of frequency and voltage, vector jump monitoring. Einfehlersicher with monitoring of the connected Dome Switch. Alarm Counter and recording of the alarm total time. For use in medium-voltage systems 8 limit values can be programd.
This text is machine translated.
This text is machine translated.
Features
- 4-digit digital display
- 2 output relays with monitoring of the feedback signal contacts
- Plug & Play by preset limit values
- Alarm Memory with time stamp (100 alarms)
- Simulation with measurement of the switching times
- Vector jump monitoring.
