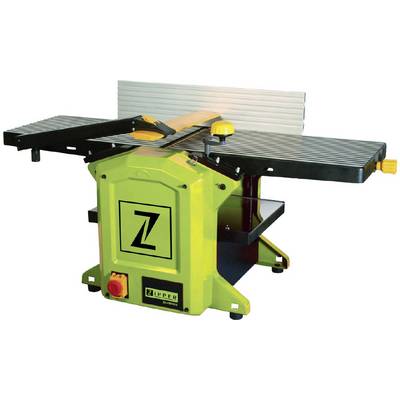

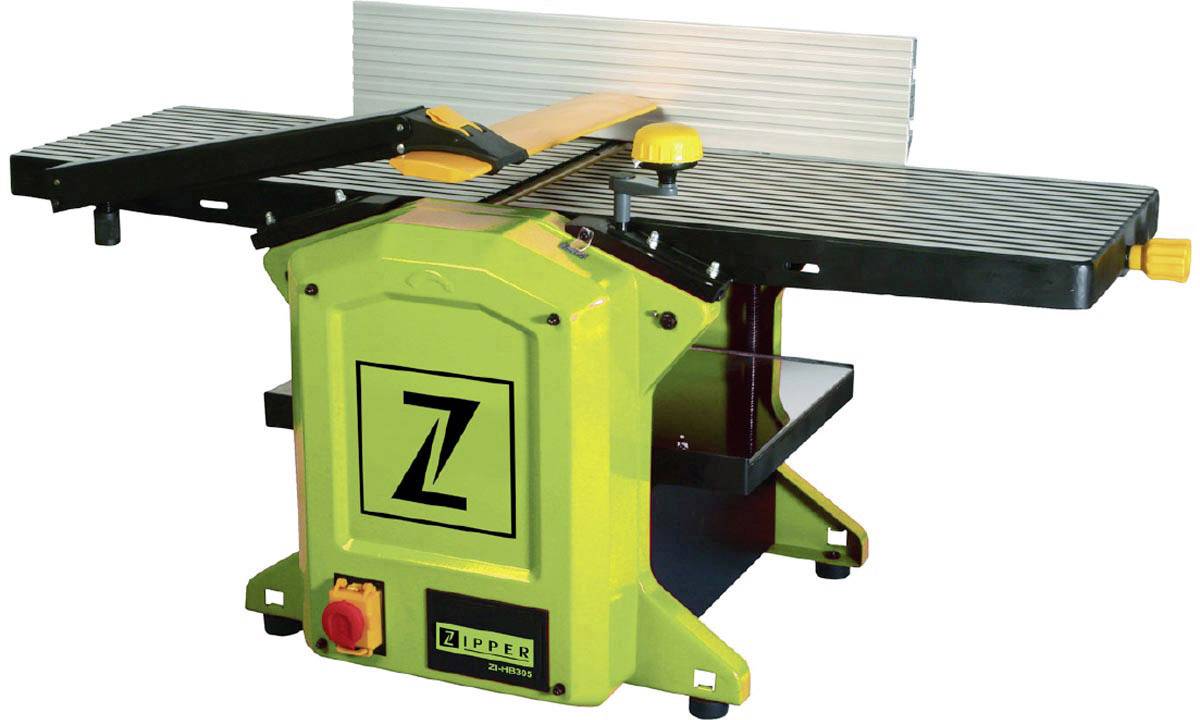

Zipper ZI-HB305 Jointer planer combo 1800 W
EAN:
Part number:
Item no:
Highlights & Details
Zipper dressing thickness planing machine ZI-HB 305
- Powerful universal motor with belt drive
Technical specifications
- Dressing max. chip removal in mm: 0-2
- dressing stroke in mm: 610 x 127
- dressing table size in mm: 1075x310
- feed rate: 6m/min
- boom table in mm: 100
- Min. Workpiece thickness in mm:6
- Max. Workpiece thickness in mm: 158
- Min. Workpiece width in mm: 305
- thickness planer table size in mm: 500 x 305
- thickness planing max. chip removal in mm: 0-1.5
- planer shaft speed in rpm: 8500
- planer blade number: 2
- Product type
Jointer planer combo
1800 W
- Rotational speed
8500 U/min
- Swivel range (min)
90°
- Swivel range (max.)
135°
- Swivel range (range)
90 - 135 °
- Operating voltage
230 V
- Length
118 cm
- Width
58 cm
- Height
57 cm
- Weight
42 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1490659 Zipper ZI-HB305 Jointer planer combo 1800 W
Description
Features
- 2-blade plane wave
- large dressing stop
- uniform network feed
- includes a pair of spare plane blade
- Flexible use through low weight
- low space requirement
Hints
This text is machine translated.
