Zotac Mini PC ZBOX PICO PI336 2.5 cm (1 inch) 4K Intel® Celeron® N6211 3.0 GHz 4 GB RAM 128 GB eMMC 128 GB SSD Intel ZBO
EAN:
Part number:
Item no:
Zotac ZBOX PICO PI336 2.5 cm (1 inch) Mini PC
Highlights & Details
- Display: 2.5 cm (1 inch) UHD 4K
- Intel® Celeron® N6211 2 core(s) / max. 3.0 GHz
- RAM: 4 GB LPDDR4 RAM 3200 MHz
- 128 GB eMMC 128 GB SSD
- Intel
- Windows® 11 Pro
Technical specifications
- Product type
Mini PC
- Model
ZBOX PICO PI336
- Display (cm)
2.5 cm
- Screen size diagonal (inches)
1 inch
- Display properties
UHD
- Display resolution mode
4K
- CPU series
Intel® Celeron®
- CPU
Intel® Celeron® N6211
- Processor/type
N6211
- Processor cores (No.)
2 x
- CPU speed
1.2 GHz
- CPU turbo clock speed (max.)
3.0 GHz
4 GB
- RAM type
LPDDR4 RAM
- Memory clock speed
3200 MHz
- No. of memory slots
1
- RAM / Max. upgrade
8 GB
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
Intel
- Dedicated graphics card
No
- SSD size (total)
128 GB
- SSD 1 type
SSD
- SSD
128 GB
- SSD connection
eMMC
- HDD capacity (total)
128 GB
- HDD 1 connection
eMMC
- Hard drive
128 GB
- HDD 1 type
eMMC
- Drive
w/o hard drive
- Bluetooth
5.2
- Mobile internet
WiFi
- Keyboard layout
Keyboard not included
- No. of DisplayPort
1 x
- No. of Gigabit LANs
1 x
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No. of USB 3.0 ports
1 x
- Interfaces
HDMI™
- Factory colour
Multicolour
- Weight
613 g
- Features
Memory card reader
- Operating system (Version)
Windows® 11 Pro
- Display size
- 23 inch
- Display
2.5 cm (1 inch)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2612596 Zotac Mini PC ZBOX PICO PI336 2.5 cm (1 inch) 4K Intel® Celeron® N6211 3.0 GHz 4 GB RAM 128 GB eMMC 128 GB SSD Intel ZBO
Description

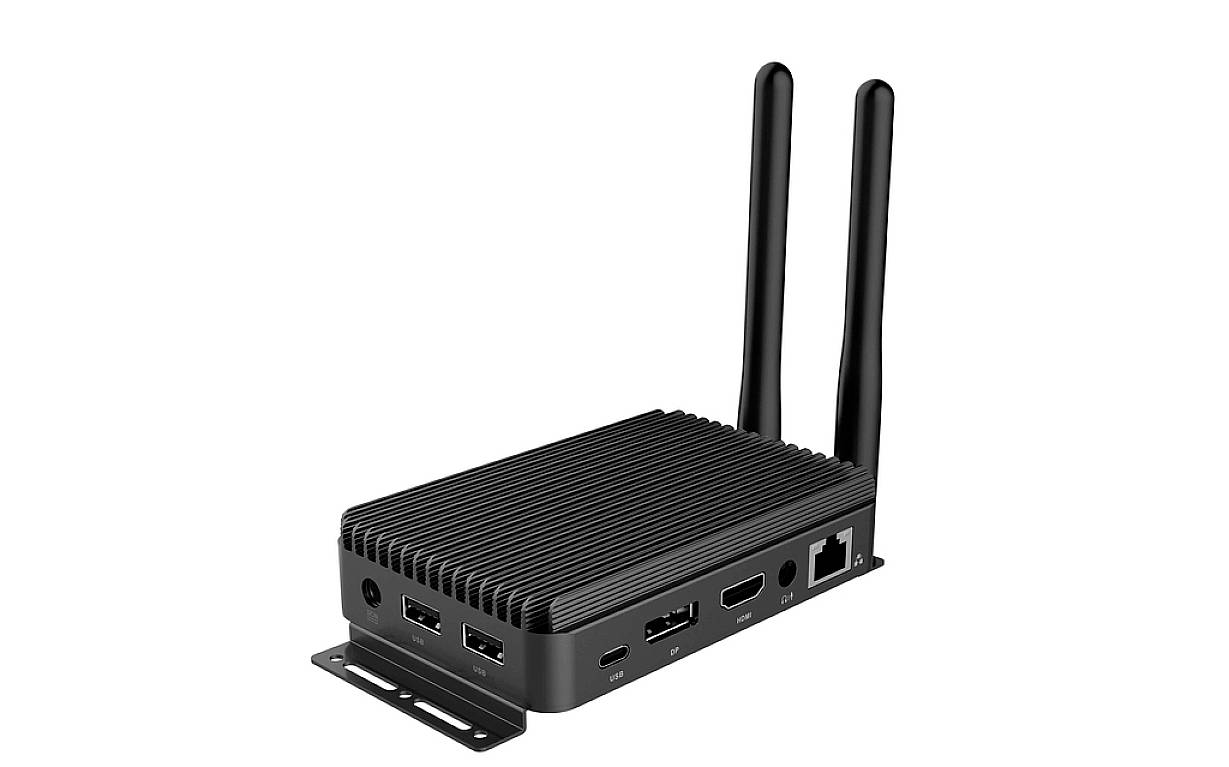

Equipped with an energy-efficient processor, the ZBOX PRO Series' smallest embedded solution is ideal for IoT-related applications, industrial control, digital signage and edge computing. With HDMI and DisplayPort outputs in a tiny package, the ZBOX PRO PI336 Pico PLUS with integrated 8GB memory can operate digital signage displays in remote or commercial areas with limited space. The ZBOX PRO PI336 Pico PLUS works with approx. 12 W under load and has an 4K output as well as a wide range of connection options such as USB 3.1, Gigabit LAN, WiFi 6E and Bluetooth 5.2.
This text is machine translated.
This text is machine translated.
Features
- Intel Celeron N6211 dual-core processor8 GB LPDDR4X memory128GB eMMC 5.1 Flash memorydual Display Ready (HDMI 2.0, DisplayPort 1.2), 4K Ready3x USB 3.1 (1 type C)Gigabit Ethernet LAN, WiFi 6E, Bluetooth 5.2Supports Windows 11 / 10 / 10 IoT ENT LTSC, Ubuntu 20.04.3 LTS LinuxHardware watchdog timer
Hints
HDMI® is a registered trademark of HDMI Licensing LLC
Image may differ from actual product.
