ZyXEL XGS1250-12v2 switch 12-port web managed
EAN:
Part number:
Item no:

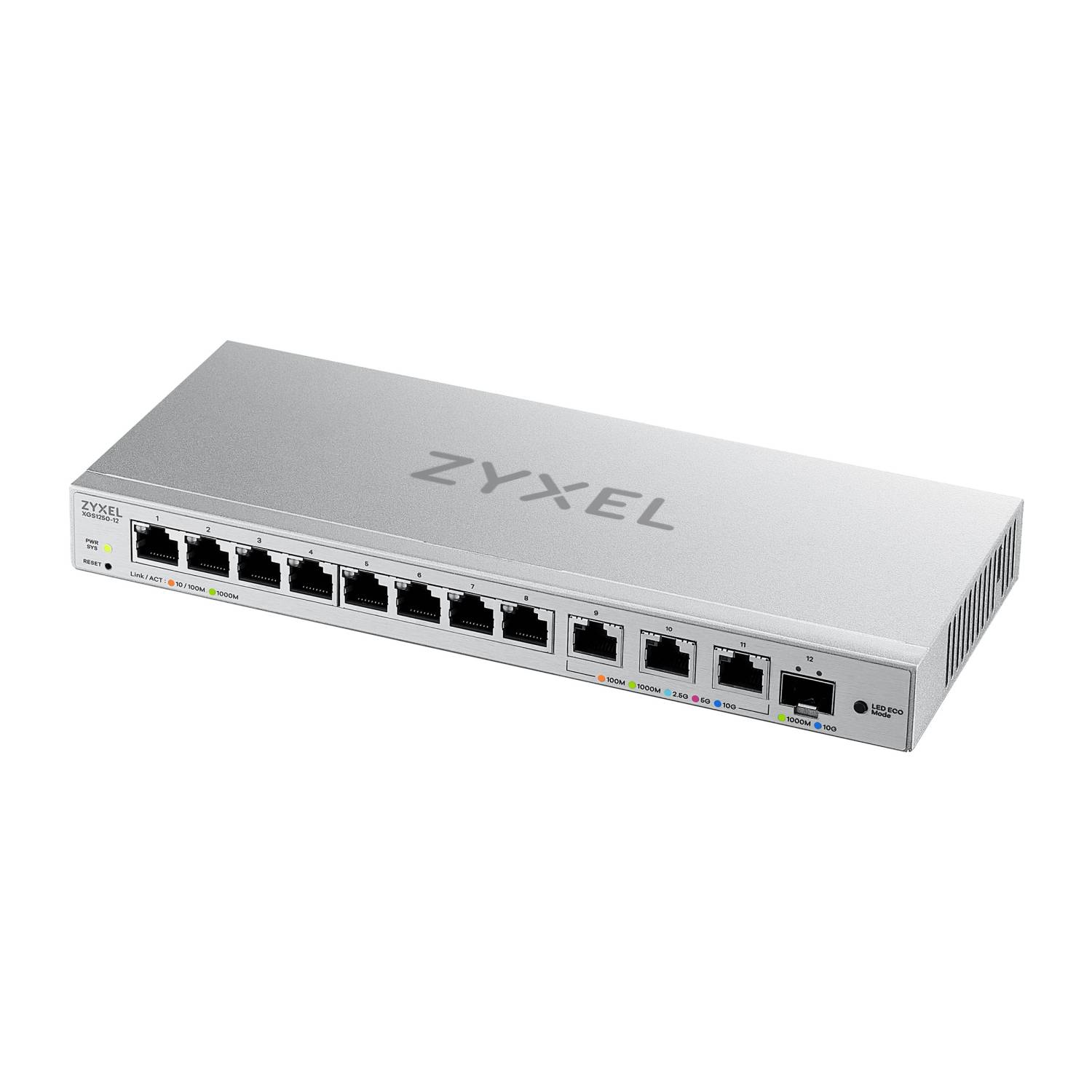

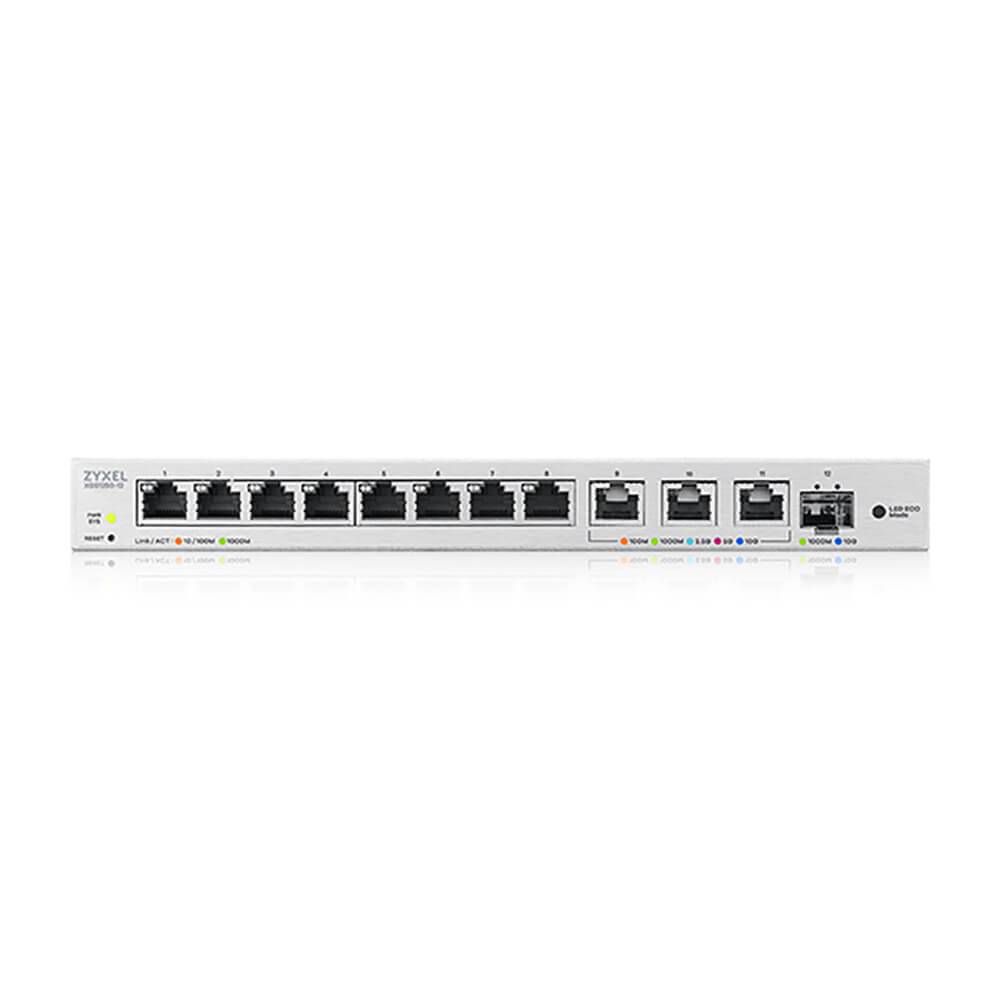

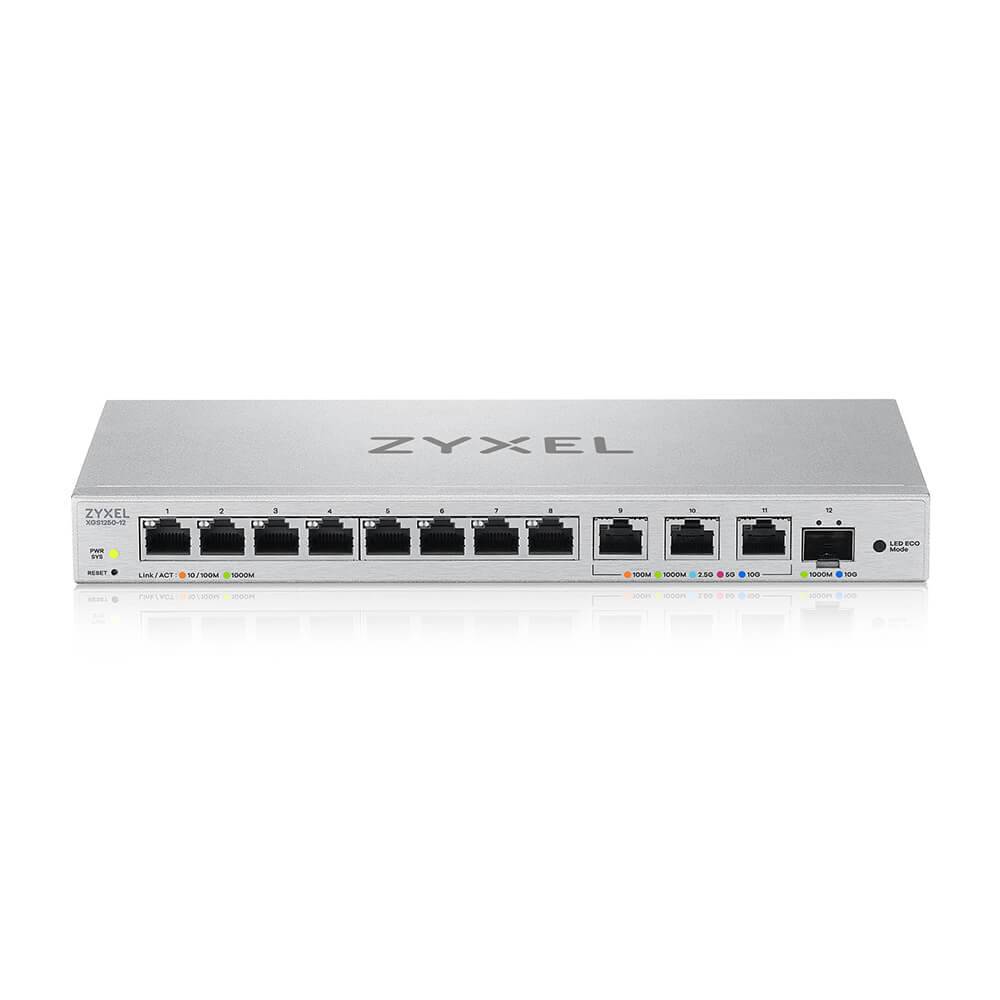

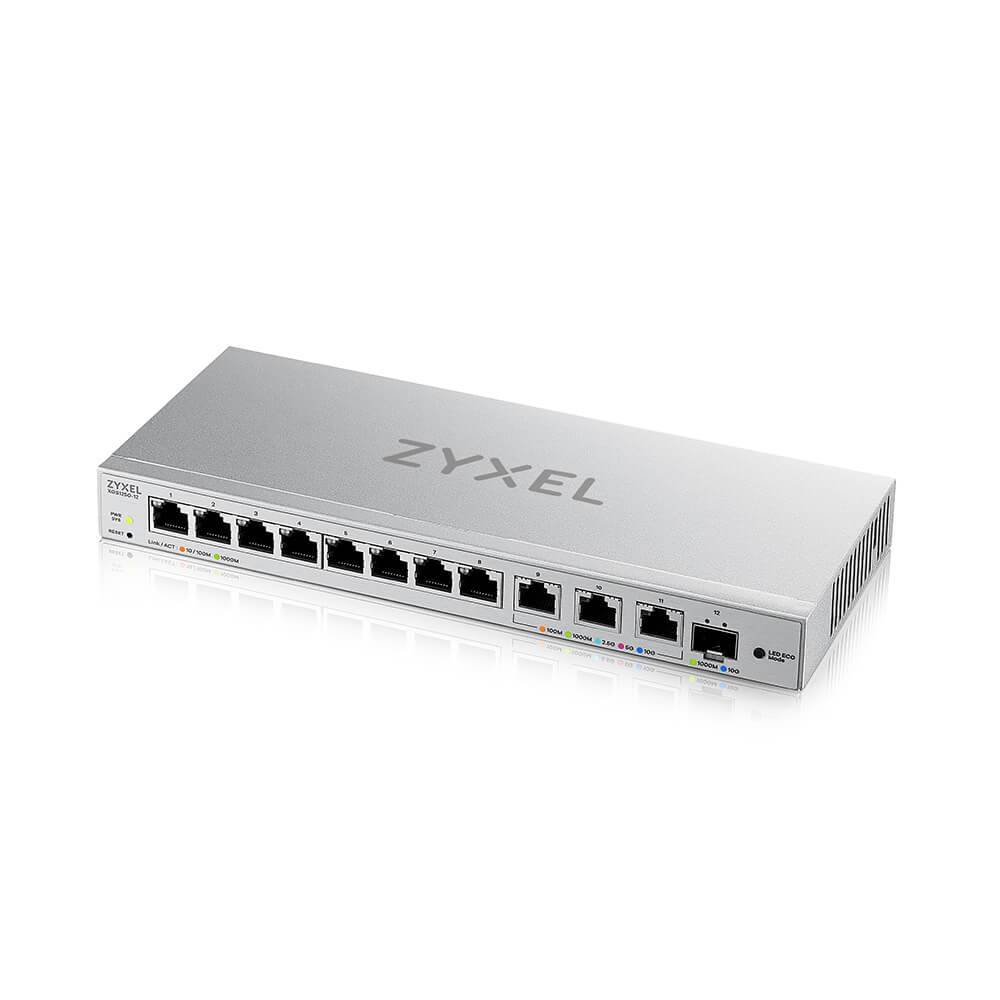

ZyXEL XGS1250-12 switch – managed – 8 x 10/100/1000 + 3 x 1/2.5/5/10GBASE-T + 1 x 1 Gigabit / 10 Gigabit SFP+
Highlights & Details
- 8x 100/1000 Mbps, 3x 1G/2.5G/5G/10G Ethernet (RJ-45), 1x 1G SFP/10G SFP+
Technical specifications
- ZyXEL XGS1250-12 switch – 12 connections – managed
- Device type: Switch – 12 connections – managed
- Sub-type : 10 Gigabit Ethernet
- Ports : 8 x 10/100/1000 + 3 x 1/2.5/5/10GBASE-T + 1 x 1 Gigabit / 10 Gigabit SFP+
- Performance : 96 Gbps switching capacity
- Transfer rate: 71.42 Mpps
- Capacity : Packed buffer size: 1.5 MB
- Size of the MAC address table : 16,000 entries
- Jumbo Frame Support : 12KB
- Features : reset button, EEE, QoS, flow control, 1.5 MB packet buffer, Auto Uplink (Auto MDI/MDI-X), MDI, MDI-X, password protection, VLAN support, Broadcast Storm Control, DHCP client, preventing loop formation, loopback detection, port mirroring, Static Link Aggregation, WRR
- Product certifications : IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 25 cm x 10.4 cm x 2.7 cm
- Weight: 783 g
- Product type
Network switch
- LAN transfer rate
10000 MBit/s
- Working principle
Managed switch
- Ethernet ports
11
- SFP+ ports
1 x
- No. of 100 Mbps/1Gbps/10Gbps ports
4 x
- 10/100 Mbps ports
8 x
- 10/100/1000 Mbps ports
8 x
- Fibre-optic ports
1
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
16000
- Weight
1.292
- Width
25 cm
- Height
2.7 cm
- Depth
10.4 cm
- Type
neu
- Interfaces
RJ45
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3731288 ZyXEL XGS1250-12v2 switch 12-port web managed
Description
ZyXEL XGS1250-12 Switch type: Managed, switch level: L2. Basic Switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), number of basic switching RJ-45 Ethernet ports: 11. Full duplex MAC address table: 16000 entries, routing/switching capacity: 96 Gb/s. Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x Mains plug DC connection Wall Mount
The XS1250-12 has three multi-gigabit ports that support up to 10G and an additional 10G fiber port in addition to the two 10G copper ports provided by other vendors. With our additional fiber connector and 10G connectivity, you can increase the flexibility to use more 10G devices in your daily work.
Equipped with 1G ports, 10G multi-gigabit ports and a 10G fiberglass connection, this port combination is a number of network devices such as iMac Pro, 10G NAS, Server, WiFi 6 APs or new 2.5G motherboards. The unique 5-color LED on the front side enables you to check the link speed immediately.
This text is machine translated.
The XS1250-12 has three multi-gigabit ports that support up to 10G and an additional 10G fiber port in addition to the two 10G copper ports provided by other vendors. With our additional fiber connector and 10G connectivity, you can increase the flexibility to use more 10G devices in your daily work.
Equipped with 1G ports, 10G multi-gigabit ports and a 10G fiberglass connection, this port combination is a number of network devices such as iMac Pro, 10G NAS, Server, WiFi 6 APs or new 2.5G motherboards. The unique 5-color LED on the front side enables you to check the link speed immediately.
This text is machine translated.
Features
- ZyXEL XGS1250-12 switch – 12 connections – managed
- Device type: Switch – 12 connections – managed
- Sub-type : 10 Gigabit Ethernet
- Ports : 8 x 10/100/1000 + 3 x 1/2.5/5/10GBASE-T + 1 x 1 Gigabit / 10 Gigabit SFP+
- Performance : 96 Gbps switching capacity
- Transfer rate: 71.42 Mpps
- Capacity : Packed buffer size: 1.5 MB
- Size of the MAC address table : 16,000 entries
- Jumbo Frame Support : 12KB
- Features : reset button, EEE, QoS, flow control, 1.5 MB packet buffer, Auto Uplink (Auto MDI/MDI-X), MDI, MDI-X, password protection, VLAN support, Broadcast Storm Control, DHCP client, preventing loop formation, loopback detection, port mirroring, Static Link Aggregation, WRR
- Product certifications : IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 25 cm x 10.4 cm x 2.7 cm
- Weight: 783 g
