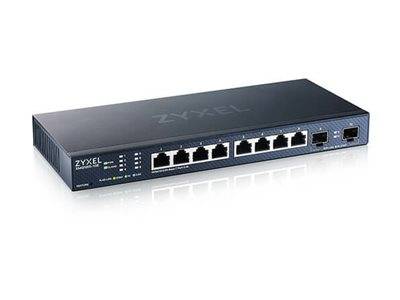

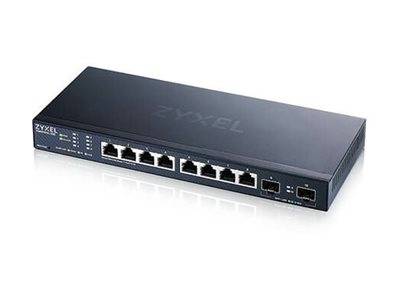

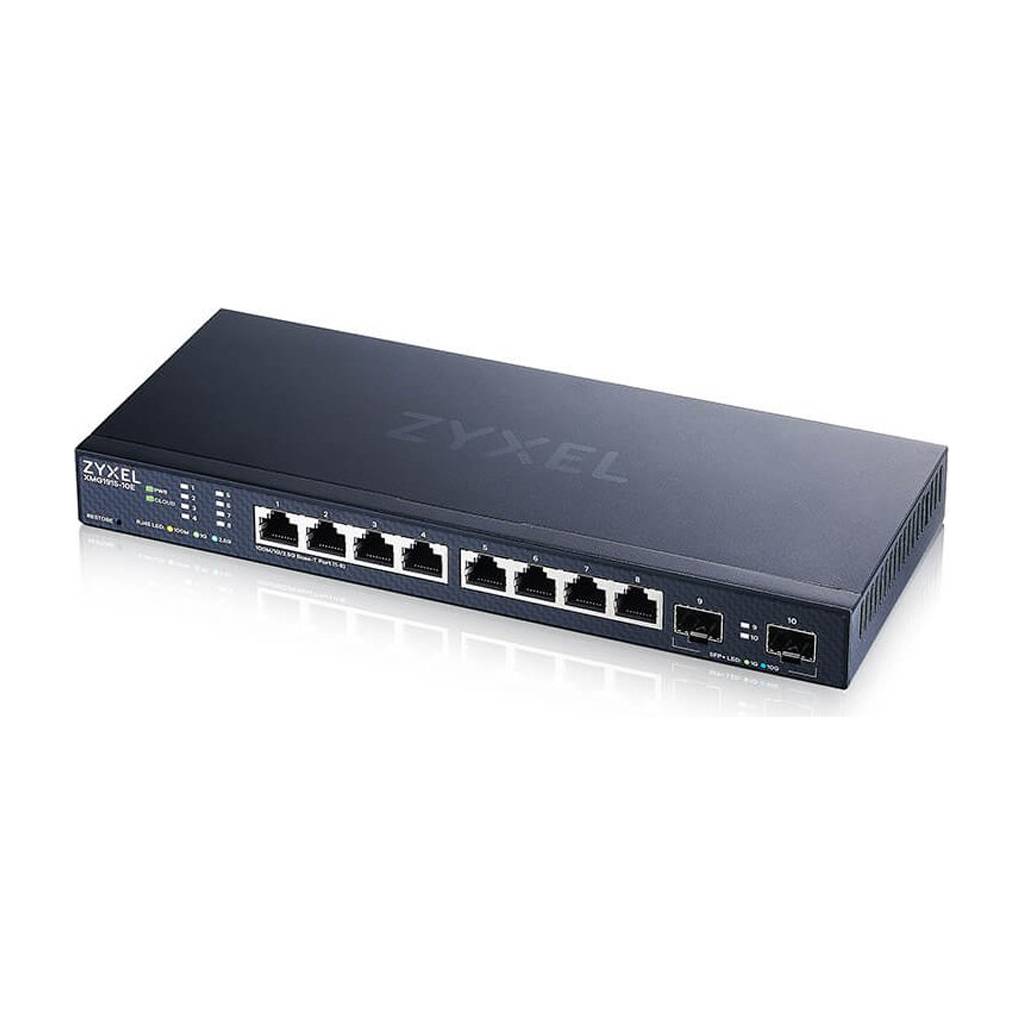

ZyXEL XMG1915 Series XMG1915-10E - Switch - Managed, NebulaFLEX Cloud
EAN:
Part number:
Item no:
Highlights & Details
ZyXEL XMG1915 Series XMG1915-10E - Switch - Managed, NebulaFLEX Cloud
- 2.5G speed: Top performance for small businesses & home users
- Upgrade to 2.5-fold network speed
- Two 10G uplink ports ensure that there is always enough bandwidth available to avoid bottlenecks to the server and ensure that devices with higher speeds can fully exploit their full potential
- Nebula, Flexible Cloud Management
Technical specifications
- ZyXEL XMG1915 Series XMG1915-10E - Switch - Managed, NebulaFLEX Cloud - 10 Ports - Smart
- Device type: Switch - 10 connections - L3 Lite - Smart
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 8 x 100/1000/2.5G + 2 x Gigabit SFP / 10 Gigabit SFP+
- Performance : 80 Gbps switching capacity
- Transfer rate: 59.5 Mpps
- Capacity : IPv4 entries in forwarding table: 128
- IPv6 entries in forwarding table: 128
- Routing tables: 8
- IP Interfaces: 8
- Packed buffer size: 1.5 MB
- Size of the MAC address table : 16,000 entries
- Jumbo frame support : 12,000 bytes
- Remote Management Protocol : SSH-2, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, SYSLOG
- Features : Without fans, 2KV ESD Protector, 1 KV surge protection, ESD Protector, IPv4 support, IPv6 support, VLAN support, static routing, port-based VLAN, voice VLAN, MAC address authentication, LACP, port security, port isolation, MAC freeze, CPU protection, DHCP snooping, CoS, QoS, SPQ, WFQ, WRR, Storm Control, DSCP support, IGMP Snooping, DHCPv6 relay, DHCP client, DAD, firmware can be updated, NTP server, MIB support, Web GUI management portal, ZON
- Product certifications : IEEE 802.3z, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1AB (LLDP)
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 25 cm x 10.4 cm x 2.7 cm
- Weight: 760 g
- Localization : Europe
- Factory colour
Multicolour
- Weight
1.195
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3731253 ZyXEL XMG1915 Series XMG1915-10E - Switch - Managed, NebulaFLEX Cloud
Description
ZyXEL XMG1915-10E Switch type: Managed, switch level: L2. Basic Switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500), number of basic switching RJ-45 Ethernet ports: 8. MAC address table: 16000 entries, routing/switching capacity: 80 Gb/s. Network standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz,...
Compact and noiseless cloud-based 2.5G switchAll downlink ports of the XMG1915 operate at 2.5G speed and ensure a stable connection for a variety of connected devices, such as WiFi 6/6E/7 APs, multi-gigabit networks, IP cameras and NAS devices. Two 10G uplink ports ensure that there is always enough bandwidth available to avoid bottlenecks and to ensure that devices with higher speeds can fully exploit their full potential.
This text is machine translated.
Compact and noiseless cloud-based 2.5G switchAll downlink ports of the XMG1915 operate at 2.5G speed and ensure a stable connection for a variety of connected devices, such as WiFi 6/6E/7 APs, multi-gigabit networks, IP cameras and NAS devices. Two 10G uplink ports ensure that there is always enough bandwidth available to avoid bottlenecks and to ensure that devices with higher speeds can fully exploit their full potential.
This text is machine translated.
Features
- ZyXEL XMG1915 Series XMG1915-10E - Switch - Managed, NebulaFLEX Cloud - 10 Ports - Smart
- Device type: Switch - 10 connections - L3 Lite - Smart
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 8 x 100/1000/2.5G + 2 x Gigabit SFP / 10 Gigabit SFP+
- Performance : 80 Gbps switching capacity
- Transfer rate: 59.5 Mpps
- Capacity : IPv4 entries in forwarding table: 128
- IPv6 entries in forwarding table: 128
- Routing tables: 8
- IP Interfaces: 8
- Packed buffer size: 1.5 MB
- Size of the MAC address table : 16,000 entries
- Jumbo frame support : 12,000 bytes
- Remote Management Protocol : SSH-2, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, SYSLOG
- Features : Without fans, 2KV ESD Protector, 1 KV surge protection, ESD Protector, IPv4 support, IPv6 support, VLAN support, static routing, port-based VLAN, voice VLAN, MAC address authentication, LACP, port security, port isolation, MAC freeze, CPU protection, DHCP snooping, CoS, QoS, SPQ, WFQ, WRR, Storm Control, DSCP support, IGMP Snooping, DHCPv6 relay, DHCP client, DAD, firmware can be updated, NTP server, MIB support, Web GUI management portal, ZON
- Product certifications : IEEE 802.3z, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1AB (LLDP)
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 25 cm x 10.4 cm x 2.7 cm
- Weight: 760 g
- Localization : Europe
