Buy Alpha RV16AF-10-15R1-A2,5K RV16AF10A2,5KM Single turn rotary pot Mono 50 mW 2.5 kΩ 1 pc(s)

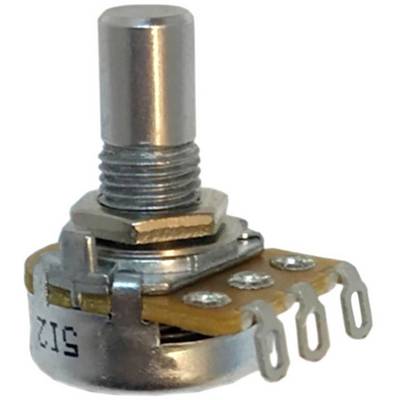

A silver potentiometer with three terminal connections, commonly used for controlling electrical signals in electronic devices.

Image similar

Technical drawing of an electrical potentiometer with dimensions and connections, showing side and front views with dimensional specifications.

1/2

Image similar

Datasheet (PDF)

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.93 / piece)

€

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Rotary potentiometer

2.5 kΩ
logarithmic

Technical specifications

Resistance: 2.5 kΩ

Resistance characteristic: logarithmic

Output: Mono

Power rating: 50 mW

Connection: Solder tag

Mechanical angle: 300°

Axle length: 15 mm

Axle type: Metal
Smooth
Round

Axle Ø: 6.35 mm

Thread size: M7

Thread length: 6.5 mm

Content: 1 pc(s)

Type: RV16AF10A2,5KM

Product type: Single turn rotary pot

Documents & Downloads

Datasheet

Datasheet 1694282 Alpha RV16AF-10-15R1-A2,5K RV16AF10A2,5KM Single turn rotary pot Mono 50 mW 2.5 kΩ 1 pc(s)

Alpha RV16AF-10-15R1-A2,5K RV16AF10A2,5KM Single turn rotary pot Mono 50 mW 2.5 kΩ 1 pc(s)
