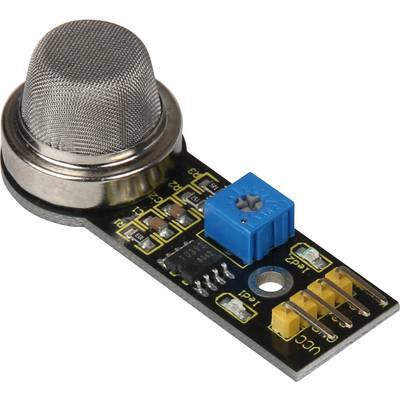

Analogueue sensor for natural gases 50-1

  • Item no.: 2205380
  • Manufacturer no.: sen-mq5
  • EAN: 4250236819969

This analogueue gas sensor hasA small heating element with oneElectronic-chemical sensor.It is for indoor use. Natural gases ( for example: Liquefied gases, LPG, butane, methane, propane ). A potentiometer integrated in the module allows you to set t…

  • Warranty: 24 months
  • Manufacturer: Joy-it
  • Item no.: 2205380
  • Manufacturer no.: sen-mq5
  • EAN: 4250236819969

This analogueue gas sensor hasA small heating element with oneElectronic-chemical sensor.It is for indoor use. Natural gases ( for example: Liquefied gases, LPG, butane, methane, propane ). A potentiometer integrated in the module allows you to set t…

  • Warranty: 24 months
  • Manufacturer: Joy-it
  • Measurement range 50 - 10,000 ppm
  • Measurable substances liquefied gases (LPG), propane,
  • Methane, butane, other natural
  • Gases, etc.
  • Application areas recognize gas leaks, for
  • Gas alarm, robotics, microcontroller projects
  • Compatible with Raspberry Pi (with ADconverter),
  • Arduino, etc.
  • Special features of high sensitivity,
  • Fast response time,
  • Insensitive to alcohol and
  • Smoke
  • Dimensions 52 x 20 x 18 mm
  • Analogue output Evaluation of the measured values
  • From the microcontroller
  • Digital output (with potentiometer)
  • Threshold setting
  • possible
  • Pins:
  • VCC
  • GND
  • AOUT
  • DOUT
  • Power supply 5V
  • Earth
  • Analogueue output
  • Digital output
  • Response time ≤ 10 s.
  • Recovery time ≤ 30 s.
  • Loop voltage ≥ 24 V DC
  • Load resistance 2 KΩ
  • Resistance in clean air ≤4000 kΩ
  • Sensitivity ≥ 4(in 1000ppm C4H10)
Max. operating voltage 5 V
Height 18 mm
Length 52 mm
Width 20 mm
Internal ports Pin header
No. of outputs 2 x

Technical data

  • Measurement range 50 - 10,000 ppm
  • Measurable substances liquefied gases (LPG), propane,
  • Methane, butane, other natural
  • Gases, etc.
  • Application areas recognize gas leaks, for
  • Gas alarm, robotics, microcontroller projects
  • Compatible with Raspberry Pi (with ADconverter),
  • Arduino, etc.
  • Special features of high sensitivity,
  • Fast response time,
  • Insensitive to alcohol and
  • Smoke
  • Dimensions 52 x 20 x 18 mm
  • Analogue output Evaluation of the measured values
  • From the microcontroller
  • Digital output (with potentiometer)
  • Threshold setting
  • possible
  • Pins:
  • VCC
  • GND
  • AOUT
  • DOUT
  • Power supply 5V
  • Earth
  • Analogueue output
  • Digital output
  • Response time ≤ 10 s.
  • Recovery time ≤ 30 s.
  • Loop voltage ≥ 24 V DC
  • Load resistance 2 KΩ
  • Resistance in clean air ≤4000 kΩ
  • Sensitivity ≥ 4(in 1000ppm C4H10)
Max. operating voltage 5 V
Height 18 mm
Length 52 mm
Width 20 mm
Internal ports Pin header
No. of outputs 2 x
