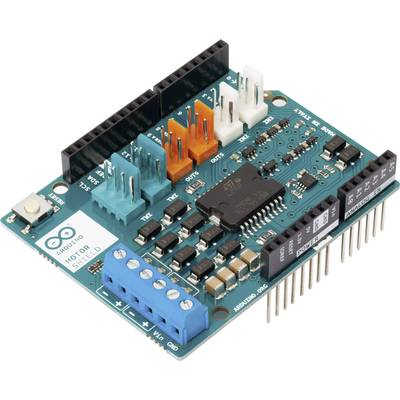

Arduino Motor Shield Rev3 Shield Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
Highlights & Details
Arduino Motor Shield R3
- Two power outputs
- Compatible with TinkerKit/modules
- Current monitoring at run time.
Technical specifications
- Motor Driver: L298P (controls two DC motors or a stepper motor)
- Maximum current: 2 A per channel or 4 A total current
- Measuring channel: 1.65 V/A
- Free run, stop and brake functions
- Product type
Shield
- Compatible with
Arduino
Arduino UNO
- Series
Core
- Internal ports
Screw terminal
Pin header
Receptacle
- Compatible with
Arduino
Documents & Downloads
Datasheet
Datasheet 323477 Arduino Motor Shield Rev3 Shield Compatible with (development kits): Arduino
User & Safety Instructions
User & Safety Instructions 323477 Arduino Motor Shield Rev3 Shield Compatible with (development kits): Arduino
Description
The Arduino Motor Shield is based on the L298, which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your Arduino board, controlling the speed and direction of each one independently. You can also measure the motor current absorption of each motor, among other features. The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.
