Audio board for Teensy 4.0

  • Item no.: 2240248
  • EAN: 4064161032788

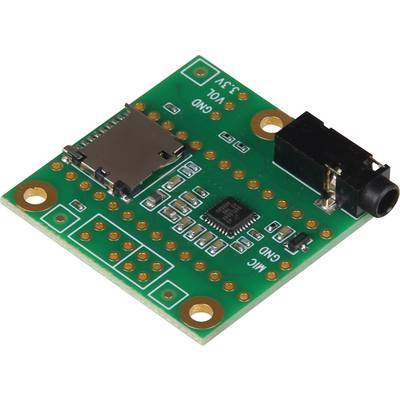

With this audio adapter you can easily add high-quality audio with 16 bit and 44.1 kHz sampling rate (CD quality) to your projects with Teensy 4.0. It supports stereo headphones and stereo line level output, as well as stereo line level input or mono…

  • Warranty: 24 months
  • Manufacturer: Joy-it
  • Item no.: 2240248
  • EAN: 4064161032788

With this audio adapter you can easily add high-quality audio with 16 bit and 44.1 kHz sampling rate (CD quality) to your projects with Teensy 4.0. It supports stereo headphones and stereo line level output, as well as stereo line level input or mono…

  • Warranty: 24 months
  • Manufacturer: Joy-it
  • • Audio chip SGTL5000
  • • I2C pins SDA and SCL for setting parameters
  • • I2S signals, TX (to headphones and/or line-out) and RX (from line-in or microphone)
  • • 3 cycles: LRCLK (44.1 kHz), BCLK (1.41 MHz), MCLK (11.29 MHz)
  • • SGTL5000 works in "slave mode", with all its clock pins being inputs
Product type PCB extension board
Tool type Audio amplifier

Technical data

  • • Audio chip SGTL5000
  • • I2C pins SDA and SCL for setting parameters
  • • I2S signals, TX (to headphones and/or line-out) and RX (from line-in or microphone)
  • • 3 cycles: LRCLK (44.1 kHz), BCLK (1.41 MHz), MCLK (11.29 MHz)
  • • SGTL5000 works in "slave mode", with all its clock pins being inputs
Product type PCB extension board
Tool type Audio amplifier
