Buy B-Tech Monitor wall mount BT 7515/PB 1 Display(s) 25,4 cm (10") - 81,3 cm (32") Black Tiltable, Swivelling, Swivelling

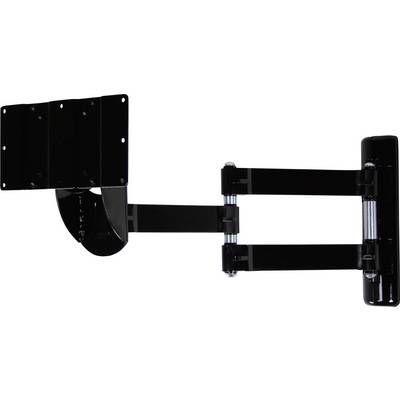

Black, pivoting TV wall mount with two articulated arms, suitable for securing a screen to the wall.

Bright living room with a white sofa, glass coffee table and a wall-mounted television, wooden flooring and floor lamp.

A flat-screen television is mounted on a swivel wall bracket that allows the screen to be rotated and tilted. The screen displays an image of a building.

A black monitor is mounted on a pivoting wall bracket that can be adjusted in various directions.

Wall bracket for television or monitor with pivoting arm and sturdy metal construction for flexible positioning.

Black, adjustable metal TV wall mount with articulated arms for flexible screen positioning.

Swivel TV wall mount with two articulated arms and mounting plate, allowing flexible adjustment of the screen to different viewing angles.

Black TV wall mount with multiple joints and mounting points, suitable for horizontal and vertical installation.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

14-day return policy included

Report legal concerns

B-Tech BT7515 LCD-/TFT-Wandhalter

Highlights & Details

Type (misc.): Tilt, swivel
Supports all VESA standards up to 200 x 200 mm
Load capacity (max.) 25 kg

Technical specifications

Wall distance: 9.5 - 52.5 cm

Product type: Monitor wall mount

Suitable for: 25,4 cm (10") - 81,3 cm (32")

Add-on displays: 1 Display(s)

Holder type: Tiltable
Swivelling
Swivelling

: No

Max. load capacity: 25 kg

: No

: 75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mm

Rotation: 360°

Tilt range (bottom): -40°

Tilt range (top): +40°

Swivel range (left): 90°

Swivel range (right): 90°

Distance to wall (min.): 11 cm

Distance to wall (max.): 52.5 cm

Width: 56 mm

Height: 260 mm

Depth: 110 mm

Factory colour: Black

Material (details): Stahl

Weight: 4.3 kg

Dim: (W x H x D) 56 x 260 x 110 mm

Suitable for: 25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
Show more

Type: Tilt, swivel

Swivel range: Tilt: 15°, Swivel: 180°°

Documents & Downloads

Datasheet

Datasheet 943575 B-Tech Monitor wall mount BT 7515/PB 1 Display(s) 25,4 cm (10") - 81,3 cm (32") Black Tiltable, Swivelling, Swivelling

User & Safety Instructions

User & Safety Instructions 943575 B-Tech Monitor wall mount BT 7515/PB 1 Display(s) 25,4 cm (10") - 81,3 cm (32") Black Tiltable, Swivelling, Swivelling

Information

Information 943575 B-Tech Monitor wall mount BT 7515/PB 1 Display(s) 25,4 cm (10") - 81,3 cm (32") Black Tiltable, Swivelling, Swivelling

Description

Neig- und schwenkbarer Wandhalter. Geeignet für VESA-Befestigungsstandards 75 x 75 mm, 100 x 100 mm, 200 x 100 mm oder 200 x 200 mm. Doppelschwenkarm zur optimalen Ausrichtung des Bildschirms. Wandabstand 110 bis 525 mm. Neigung des Bildschirms um 15° auf- oder abwärts. Kunststoffcover zur Abdeckung der Wandverschraubung. Einfache Montage. Befestigungsmaterial enthalten.

Features

Developed for medium-sized flat screens up to 107 cm/25 kg
Suitable for screens with the VESA standard 75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm
Simple adjustment angle of inclination up to +/-40
Distance from the wall: min. 95 mm - max. 525 mm

Scope of delivery

Mount
Screw set
Installation manual.
