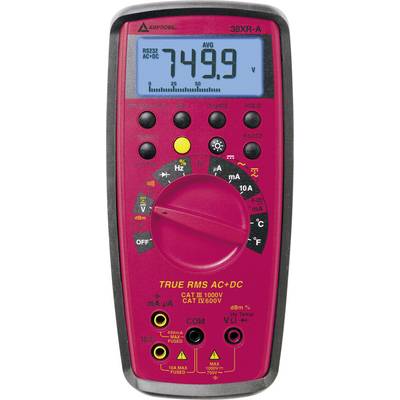

Beha Amprobe 38XR-A-D Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 9999

  • Item no.: 1372681
  • Manufacturer no.: 3454705
  • EAN: 0095969495127

Digital Multimeter Features • The voltage, current and resistance measurement • diode and audible continuity tester • Capacity and frequency measurement • attenuation measurement measurement (dBm) • Temperature Measurement• Current loop measurement 4…

  • Item no.: 1372681
  • Manufacturer no.: 3454705
  • EAN: 0095969495127

Digital Multimeter Features • The voltage, current and resistance measurement • diode and audible continuity tester • Capacity and frequency measurement • attenuation measurement measurement (dBm) • Temperature Measurement• Current loop measurement 4…

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 40 MΩ MΩ
Reading range - capacity 0.01 nF 400 µF
Frequency reading range 0.1 Hz - 10 MHz
Temperature -20 to +1300 °C
DC resistance 10 MΩ
AC resistance 10 MΩ
Basic accuracy 0.25 %
Measurement type True RMS
Interfaces RS232
Power supply (details) 9 V DC
Height 196 mm
Width 96 mm
Length 60 mm
Weight 492 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type 38XR-A-D
Display Digital
Display (counts) 9999
Temperature reading range (max.) +1300 °C
Temperature reading range (min.) -20 °C
Product type Handheld multimeter

Technical data

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 40 MΩ MΩ
Reading range - capacity 0.01 nF 400 µF
