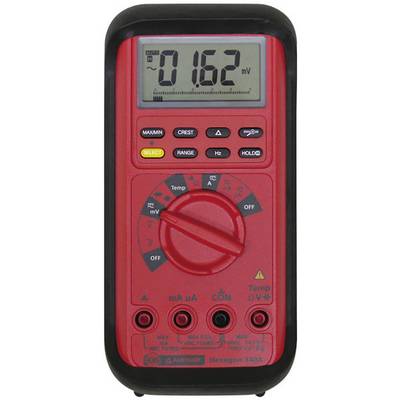

Beha Amprobe HEX340-D Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 5000

  • Item no.: 1372971
  • Manufacturer no.: 3454491
  • EAN: 0095969494915

Digital multimeter with socket control (ABK). Features • The voltage, current and resistance measurement
• Capacity and frequency measurement • diode and audible continuity tester • temperature measurement.

This text is machine translated.

  • Item no.: 1372971
  • Manufacturer no.: 3454491
  • EAN: 0095969494915

Digital multimeter with socket control (ABK). Features • The voltage, current and resistance measurement
• Capacity and frequency measurement • diode and audible continuity tester • temperature measurement.

This text is machine translated.

Voltage reading range DC (min.) 0.01 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.01 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 mA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 mA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.01 Ω - 50 MΩ
Reading range - capacity 0.01 nF - 9999 µF
Frequency reading range 10 Hz - 125 kHz
DC resistance 10 MΩ
AC resistance 10 MΩ
Basic accuracy 0.08 %
Measurement type True RMS
Frequency range 40 Hz -20 kHz
Interfaces RS232
Power supply (details) 9 V DC
Height 198 mm
Width 97 mm
Length 55 mm
Weight 430 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type HEX340-D
Display Digital
Display (counts) 5000
Interfaces RS232
Temperature reading range (max.) +1000 °C
Temperature reading range (min.) -50 °C
Product type Handheld multimeter

Technical data

Voltage reading range DC (min.) 0.01 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.01 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 mA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 mA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.01 Ω - 50 MΩ
Reading range - capacity 0.01 nF - 9999 µF
