Benning CFlex 2 Clamp meter Digital CAT IV 600 V Display (counts): 3000
EAN:
Part number:
Item no:
Number
Total (€ 264.71 / piece)
€
Only 2 Piece(s) available
Highlights & Details
True RMS AC-CURRENT CONVERTER BENNING CFlex 2
- CAT IV 600 V
Technical specifications
- Product type
Clamp meter
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
3000 A
- Measurement type (details)
True RMS
- Power supply (details)
2x AAA battery
- Height
85 mm
- Width
178 mm
- Length
220 mm
- Weight
539 kg
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Current reading
AC
- Type
CFlex 2
- Display
Digital
- Display (counts)
3000
- Dim
(L x W x H) 220 x 178 x 85 mm
- Opening range of current clamps
160 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1286518 Benning CFlex 2 Clamp meter Digital CAT IV 600 V Display (counts): 3000
Information
Information 1286518 Benning CFlex 2 Clamp meter Digital CAT IV 600 V Display (counts): 3000
Description

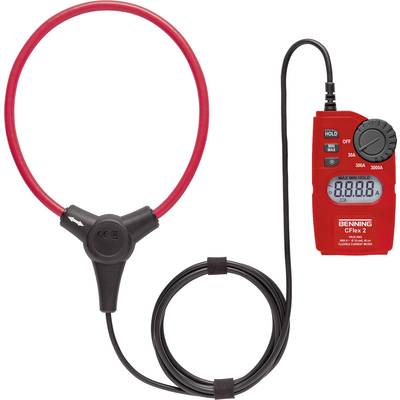

True RMS AC current meter with flexible current transformer and illuminated LC-Display.
This text is machine translated.
This text is machine translated.
Features
- Large illuminated LC display
- Alternating current: 0.1 A - 3000 A (True RMS)
- 3 measuring ranges: 30 A/300 A/3000A
- High flexibility for narrow measuring points, large cable cross-sections and to include several printed circuit
- Simple locking mechanism, with gloves
- Measurement loop diameter/length: 16 cm/46 cm
- Precise by real effective value measurement (True RMS)
- Safe operation with 1.8 m distance to the measuring point.
- Measurement (HOLD)/minimum and maximum value storage (MIN/MAX).
- Automatic switch-off (can be deactivated), battery voltage indicator.
Scope of delivery
- Protective case
- Batteries
- User manual.
