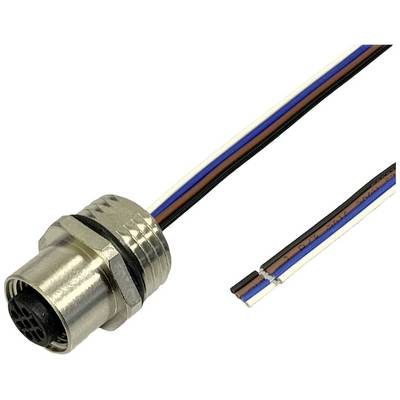

BKL Electronic 2703007 Sensor/actuator recess-mount socket M12 0.5 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator recess-mount socket
No. of pins
4
Cable length
0.5 m
Thread type connection side
M12
Type
2703007
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Highlights & Details
M12 sensor/actuator panel-mounted socket, front mounting, 4-pole, with stranded wire 0.5 m , 0.25 mm², 7mm partial vent, M16
- Made in GermanyProtection class mounting IP65, IP67, IP68More than 100 mating cycles
- This text is machine translated.
Technical specifications
- Type
2703007
- Product type
Sensor/actuator recess-mount socket
- No. of pins
4
- Cable length
0.5 m
- Thread type connection side
M12
- Thread type (wiring and installation)
M16
- max. cross section
0.25 mm²
IP65
IP67
IP68
- Manufacturer part #
2703007
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2807666 BKL Electronic 2703007 Sensor/actuator recess-mount socket M12 0.5 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2807666 BKL Electronic 2703007 Sensor/actuator recess-mount socket M12 0.5 m No. of pins (RJ): 4 1 pc(s)
Description
Hints
Wire ends with partial deduction(Without fixing nut)
