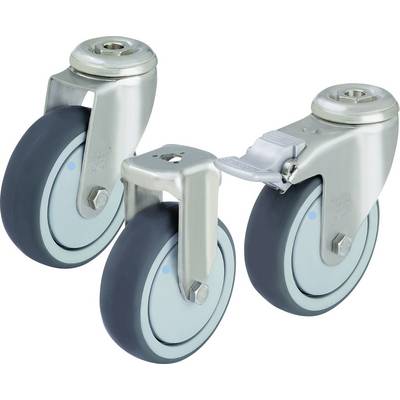

Blickle 574624 LKRXA-TPA 126KFD-11-FI (LKRXA-TPA 126KD-11-FI-FK) Swivel wheel with brake Wheel diameter: 125 mm Load cap
EAN:
Part number:
Item no:
Datasheet (PDF)
8 Piece(s)
Sales and shipping:
Number
Total (€ 34.45 / piece)
€
Only 8 Piece(s) available
Highlights & Details
Swivel wheel with brake LKRXA-TPA 126KFD-11-FI (LKRXA-TPA 126KD-11-FI-FK)
- High quality
- Rustproof
Technical specifications
- Product type
Swivel wheel with brake
- Wheel Ø
125 mm
- Load capacity (max.)
120 kg
- Features
Rear opening
Brake
- Total height
158 mm
- Size
Ø 57 mm
- Wheel width
32 mm
- Bearing type
Ball bearing
- Material
Thermoplastic elastomer (TPE)
- Factory colour
Grey
- Content
1 pc(s)
- Hole distance
Ø 11 mm
Documents & Downloads
Datasheet
Datasheet 891326 Blickle 574624 LKRXA-TPA 126KFD-11-FI (LKRXA-TPA 126KD-11-FI-FK) Swivel wheel with brake Wheel diameter: 125 mm Load cap
Datasheet 891326 Blickle 574624 LKRXA-TPA 126KFD-11-FI (LKRXA-TPA 126KD-11-FI-FK) Swivel wheel with brake Wheel diameter: 125 mm Load cap
Datasheet 891326 Blickle 574624 LKRXA-TPA 126KFD-11-FI (LKRXA-TPA 126KD-11-FI-FK) Swivel wheel with brake Wheel diameter: 125 mm Load cap
Description
Wheel with reverse lock for stainless steel equipment, with 'stop-fix' stopper,
Wheel with thermoplastic rubber tread, with polypropylene wheel body, with thread protection made of plastic, large, with additional ball bearing seal
Housing: Series LRXA
• High-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, slide-ground
• All individual parts including axle material are rust-resistant
• Double ball bearing in rotating assembly
• Stable center bolts
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series TPA
• Tread: High-quality thermoplastic rubber elastomer (TPE), hardness 85 shore A, color gray, trackless, oil-containing
• Wheel body: High-quality polypropylene, break-proof, color silver gray
Other properties:
• Thread protection, large, with additional ball bearing seal
• Very high chemical resistance to many aggressive media
• Resistance to temperature: -20 °C to +60°C, reduced load capacity above +30 °C.
• Coating containing oil, contact discoloration possible for sensitive floors.
Alternatives: Series VPA, VPP, POES, POEV, PATH
This text is machine translated.
Wheel with thermoplastic rubber tread, with polypropylene wheel body, with thread protection made of plastic, large, with additional ball bearing seal
Housing: Series LRXA
• High-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, slide-ground
• All individual parts including axle material are rust-resistant
• Double ball bearing in rotating assembly
• Stable center bolts
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series TPA
• Tread: High-quality thermoplastic rubber elastomer (TPE), hardness 85 shore A, color gray, trackless, oil-containing
• Wheel body: High-quality polypropylene, break-proof, color silver gray
Other properties:
• Thread protection, large, with additional ball bearing seal
• Very high chemical resistance to many aggressive media
• Resistance to temperature: -20 °C to +60°C, reduced load capacity above +30 °C.
• Coating containing oil, contact discoloration possible for sensitive floors.
Alternatives: Series VPA, VPP, POES, POEV, PATH
This text is machine translated.
