Buy Bosch Home and Garden PTD1 IR thermometer Display (thermometer) 10:1 -20 - +200 °C Pyrometer, Dew point scanner

Green Bosch PTD 1 infrared thermometer with a red button and black handle. Tool for precise temperature measurement and energy analysis.

A Bosch infrared thermometer, model PTD 1, in green and black. It measures temperatures on a wide variety of surfaces.

Digital Bosch PTD 1 Infrared Thermometer in Green and Black with Red Button, used for measuring surface temperatures.

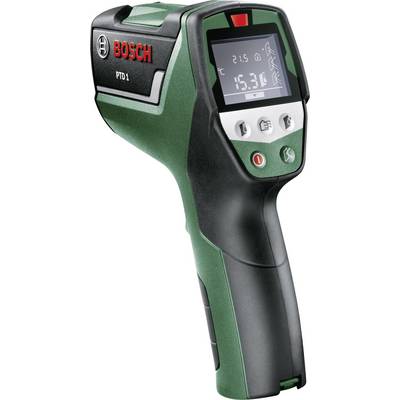

Bosch PTD 1 Infrared Thermometer with LCD screen shows temperature of 21.5 °C.

A hand holds a Bosch tool over the open interior of a computer. The device appears to be used for repairs or measurements.

A person is using a thermal imaging camera to measure heat loss around a window frame. A garden fence is visible outside.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 168.06 / piece)

€ 168.06

plus VAT.

14-day return policy included

Report legal concerns

PTD 1 thermal detector IR thermometer

Highlights & Details

Three functions in one device
Non-contact surface temperature measurement
Room temperature and humidity measurement
Intelligent climate analysis with status display

Technical specifications

Laser class/laser type: 2/ 635 nm, <1 mW
Maximum distance: 5 m
Accuracy, humidity: ± 2 %r.h.

Product type: IR thermometer

Max. temperature: +200 °C

Basic accuracy: 2 %

Accuracy ± °C: 1 °C

Emissivity: 0.95/0.85/0.75

Display: 10:1

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 124 x 53 x 180 mm

Type (Bosch): Bosch-do-it (green)

Features: Pyrometer
Dew point scanner

Emission level (max.): 0.95

Emission level (min.): 0.75

Weight: 300 g

Width: 53 mm

Height: 180 mm

Length: 124 mm

Power supply (details): 2 AA batteries

Min. temperature: -20 °C

Accuracy: ± 1° C

Temperature: -20 to +200 °C

Optics: 10:1

Documents & Downloads

Datasheet

Datasheet 101952 Bosch Home and Garden PTD1 IR thermometer Display (thermometer) 10:1 -20 - +200 °C Pyrometer, Dew point scanner

User & Safety Instructions

User & Safety Instructions 101952 Bosch Home and Garden PTD1 IR thermometer Display (thermometer) 10:1 -20 - +200 °C Pyrometer, Dew point scanner

Information

Information 101952 Bosch Home and Garden PTD1 IR thermometer Display (thermometer) 10:1 -20 - +200 °C Pyrometer, Dew point scanner

Description

The PTD1 thermal detector recognises thermal bridges and warns of mould formation. Simple operation and automatic results interpretation give the user clear information concerning the risk of mould formation and loss of energy.

Features

Infrared surface temperature sensor
Integrated room temperature/humidity sensor
Ergonomic soft grip handle
Laser system with 12 laser points
Automatic power off.

Scope of delivery

Soft bag.
Batteries
Instructions for use.
