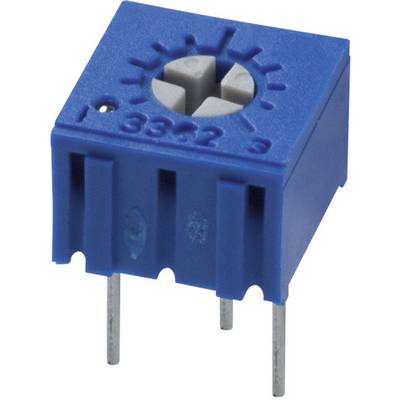

Bourns 3362P-1-500LF Trimmer Sealed linear 0.5 W 50 Ω 240 ° 270 ° 1 pc(s)

  • Item no.: 1055092
  • Manufacturer no.: 3362P-1-500LF
  • EAN: 2050002264205

TRIMMER 3362P-1-500LF 50 OHM 0,5W

Full description
  • Warranty: 24 months
  • Manufacturer: Bourns
  • Item no.: 1055092
  • Manufacturer no.: 3362P-1-500LF
  • EAN: 2050002264205

TRIMMER 3362P-1-500LF 50 OHM 0,5W

Full description
  • Warranty: 24 months
  • Manufacturer: Bourns
Technical data Description Downloads (1) Write New Review
Features Sealed
Resistance 50 Ω
Resistance characteristic linear
Power rating 0.5 W
Cut-off voltage 300 V
Electrical angle 240 °
Mechanical angle 270 °
Connection Print
Type Adjustable via cross-head
Operation type top
Min. temperature -55 °C
Max. temperature +125 °C
Tolerance ± 10 %
Width 6.6 mm
Height 4.7 mm
CS 2.54 mm
Dim (W x H) 6.6 mm x 4.7 mm
Content 1 pc(s)
Type 3362P-1-500LF
Product type Trimmer

Technical data

Features Sealed
Resistance 50 Ω
Resistance characteristic linear
Power rating 0.5 W
Cut-off voltage 300 V
Electrical angle 240 °
Mechanical angle 270 °
Connection Print
Type Adjustable via cross-head
Operation type top
