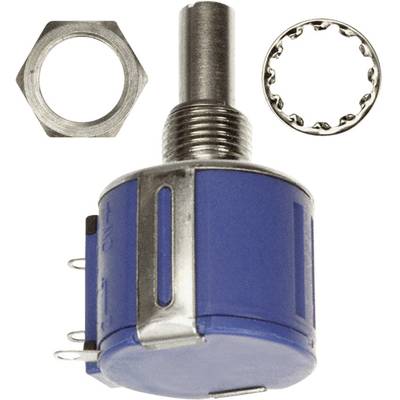

Bourns 3540S-1-103L Precision potentiometer Mono 2 W 10 kΩ 1 pc(s)
Technical data
| Resistance | 10 kΩ |
|---|---|
| Resistance characteristic | linear |
| Output | Mono |
| Power rating | 2 W |
| Cut-off voltage | 141 V |
| Connection | Solder tag |
| Mechanical angle | 3600 ° |
| Torque (max.) | 1.76 Ncm |
| Impact tolerance | 53 Ncm |
| Shaft length | 20.62 mm |
| Axle type | Metal , Smooth , Slotted |
|---|---|
| Axle Ø | 6.34 mm |
| Length | 22.23 mm |
| Height | 19.05 mm |
| (Ø) | 22.23 mm |
| Min. temperature | -40 °C |
| Max. temperature | +125 °C |
| Temperature coefficient | 50 ppm/°C |
| Tolerance ± | 5 % |
| IP rating | IP40 |
| Insulation resistance | 1 GΩ |
| Content | 1 pc(s) |
| Type | 3540S-1-103L |
| Dim | (Ø x H) 22.23 mm x 19.05 mm |
| Product type | Precision potentiometer |
Documents & Downloads
Precision potentiometer 3540 S
- Warranty: 24 months
- Manufacturer: Bourns
