Cable drum unwinder TROMBOI 500 mobile 11009059 HELU 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable dispenser
Length
550 mm
Dim
(L x W x H) 550 x 530 x 80 mm
Weight
8.00 kg
Factory colour
Mouse grey
Highlights & Details
Cable drum unwinder TROMBOI 500 mobile
Our service for you
Technical specifications
- Drum weight: Max. 140 kg
- Drum-Ø 150 - 700 mm
- Drum width max. 520 mm
- Product type
Cable dispenser
- Length
550 mm
- Dim
(L x W x H) 550 x 530 x 80 mm
- Weight
8.00 kg
- Factory colour
Mouse grey
- Content
1 pc(s)
- Width
530 mm
- Height
80 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2197129 Cable drum unwinder TROMBOI 500 mobile 11009059 HELU 1 pc(s)
Description

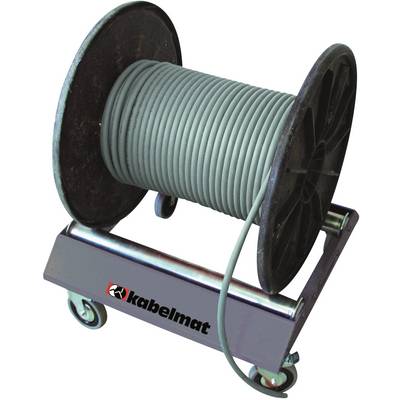

Cable drums can be removed from the drum unwinder at the processing location without any twist. The compact drum unwinder is particularly practical and easy to use for installation and cable laying. The TROMBOI consists of a robust steel welding construction and is thus ideally suited for the daily stresses of the industry. The cable reel can be rolled up via the two rolling ramps. Two ball-bearing support rollers enable easy unrolling of the cable drum. Incl. Casters braked.
This text is machine translated.
This text is machine translated.
Hints
Weight only valid for non-continuous unwinding process with undamaged drum!
