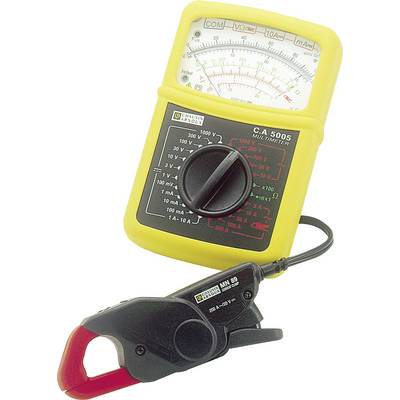

Chauvin Arnoux C.A 5005+MN89 Handheld multimeter

  • Item no.: 1195127
  • Manufacturer no.: P01196523E
  • EAN: 3760171419533

Analogue multimeter for uncompromising fans of analogue technology with "Fus" light display for the condition of the fuses and "Volt Test" light display for external voltages in the ohmmeter function.Automatic Nullstellungin the ohmmeter function μA …

  • Item no.: 1195127
  • Manufacturer no.: P01196523E
  • EAN: 3760171419533

Analogue multimeter for uncompromising fans of analogue technology with "Fus" light display for the condition of the fuses and "Volt Test" light display for external voltages in the ohmmeter function.Automatic Nullstellungin the ohmmeter function μA …

  • Voltage measurement DC: 8 areas: 100 mV... 1000 V
  • AC/DC voltage measurement: 5 ranges: 10 V ... 1000 V
  • Internal resistance 20kΩ/V
  • Frequency range 10 Hz - 100 kHz (depending on the range)
  • Current measurement 5 ranges: 50 μA... 5 A
  • Current measurement 4 areas: 50 mA... 5 A
  • Resistance measurement 2 ranges: 10 kΩ, 1 MΩ
  • Acoustic Continuity test at R< 50 Ω
  • DB scale at V ~ 0... +22 dB
  • Accuracy (typical) (3) 1.5% at V
  • 2.5% at V~ AND A~
  • 10% at Ω
  • Power supply 1 battery 1.5 V
  • Battery Life 10 000 measurements with each 15 s
  • Electrical Safety (4) IEC 61010-1
  • 600 V/ CAT III
  • 300 V/CAT IV
  • Overload protection high-power fuses 0.5 A and 5 A
  • Protection class IP 40
  • Ambient conditions -10°C ... +55°C with relative humidity< 90%
  • Dimensions / Weight 160 x 105 x 56 mm/500 g.
Frequency range 50 - 400 Hz
Power supply (details) 9 V battery
Height 230 mm
Width 157 mm
Weight 1060 g
Calibrated to
Manufacturer's standards (no certificate)
Type C.A 5005+MN89
Reading category CAT III 1000 V
Product type Handheld multimeter

Technical data

  • Voltage measurement DC: 8 areas: 100 mV... 1000 V
  • AC/DC voltage measurement: 5 ranges: 10 V ... 1000 V
  • Internal resistance 20kΩ/V
  • Frequency range 10 Hz - 100 kHz (depending on the range)
  • Current measurement 5 ranges: 50 μA... 5 A
  • Current measurement 4 areas: 50 mA... 5 A
  • Resistance measurement 2 ranges: 10 kΩ, 1 MΩ
  • Acoustic Continuity test at R< 50 Ω
  • DB scale at V ~ 0... +22 dB
  • Accuracy (typical) (3) 1.5% at V
  • 2.5% at V~ AND A~
  • 10% at Ω
  • Power supply 1 battery 1.5 V
  • Battery Life 10 000 measurements with each 15 s
  • Electrical Safety (4) IEC 61010-1
  • 600 V/ CAT III
  • 300 V/CAT IV
  • Overload protection high-power fuses 0.5 A and 5 A
  • Protection class IP 40
  • Ambient conditions -10°C ... +55°C with relative humidity< 90%
  • Dimensions / Weight 160 x 105 x 56 mm/500 g.
Frequency range 50 - 400 Hz
Power supply (details) 9 V battery
Height 230 mm
Width 157 mm
Weight 1060 g
Calibrated to
Manufacturer's standards (no certificate)
Type C.A 5005+MN89
Reading category CAT III 1000 V
Product type Handheld multimeter
