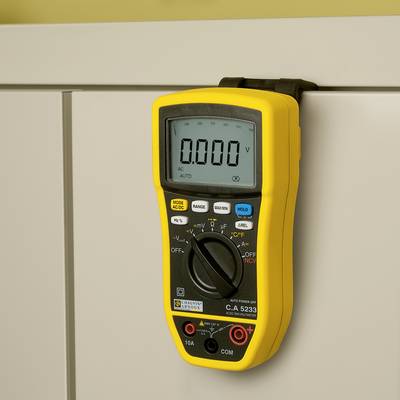

Chauvin Arnoux C.A 5233 Handheld multimeter Digital CAT IV 600 V Display (counts): 6000
- Item no.: 103515
- Manufacturer no.: P01196733
- EAN: 3760171410479
The ergonomics and design of this multimeter are tailored to its essential functions. The backlighting ensures that measurements are easy to read. The rotary switch gives you precise, clear selection: "position 1 = 1 function". The compact housing wi…
- Warranty: 24 months
- Manufacturer: Chauvin Arnoux
- Item no.: 103515
- Manufacturer no.: P01196733
- EAN: 3760171410479
The ergonomics and design of this multimeter are tailored to its essential functions. The backlighting ensures that measurements are easy to read. The rotary switch gives you precise, clear selection: "position 1 = 1 function". The compact housing wi…
- Warranty: 24 months
- Manufacturer: Chauvin Arnoux
Technical data
| Voltage reading range DC (min.) | 0.01 mV |
|---|---|
| Voltage DC reading range (max.) | 600 V |
| V AC reading range (min.) | 0.01 mV |
| V AC reading range (max.) | 600 V |
| Amperage reading range DC (min.) | 0.001 A |
| A DC reading range (max.) | 10 A |
| A AC reading range (min.) | 0.001 A |
| Amperage reading range AC (max.) | 10 A |
| Reading range - resistance | 0.1 Ω - 60 MΩ |
| Reading range - capacity | 0.01 nF - 1000 µF |
| Frequency reading range | 10 Hz - 3000 Hz |
|---|---|
| Temperature | -20 to 760 °C (K thermo element) |
| DC resistance | 10 MΩ |
| AC resistance | 10 MΩ |
| Basic accuracy | 0.2 % |
| Measurement type | True RMS |
| Frequency range | 40 Hz - 1 kHz Hz |
| Interfaces | none |
| Power supply (details) | 9 V battery pack |
| Height | 155 mm |
| Width | 75 mm |
| Weight | 320 g |
| Calibrated to | Manufacturer's standards (no certificate) |
| Reading category | CAT IV 600 V |
| Voltage metering | AC/DC |
| Current reading | AC/DC |
| Type | C.A 5233 |
| Display | Digital |
| Display (counts) | 6000 |
| Temperature reading range (max.) | +760 °C |
| Temperature reading range (min.) | -20 °C |
| A/AC reading range | 0.001 - 10 A |
| Reading range A DC | 0.001 - 10 A |
| Basic accuracy | ±0.2 % |
| Displays | 6000 counts |
| Reading category | CAT IV 600V |
| Product type | Handheld multimeter |
Documents & Downloads
True RMS digital multimeter CA5233
The ergonomics and design of this multimeter are tailored to its essential functions. The backlighting ensures that measurements are easy to read. The rotary switch gives you precise, clear selection: "position 1 = 1 function". The compact housing with a protective slip cover material makes it easy to handle.
Highlights & Details
- EN 61010 CAT IV 600V / CAT III 1000V
- Small, compact, IP54
- Overload protected up to 8000 V
Facts
- Voltage measurement up to 600 V AC / DC, max. resolution 0.01 mV
- High sensitivity and resolution up to 0.01 mV
- VLowZ measuring function to avoid measurement errors due to stray voltages
- AC/DC currents up to 10 A direct, max. resolution 1mA
- Resistance measurement up to 60MΩ, max. resolution 0.1 Ω
- Contact voltage detection: the display lights up red
- Frequency / duty cycle: up to 3kHz
- Capacitance measuring range up to 1000 µF, max. resolution 0.01 nF
- Temperature measuring range -20 °C to +760 °C (K thermo element)
- MIN./MAX. recording, relative measurement.
Delivery
- Test leads
- 9 V battery pack
- Instructions for use.
- Warranty: 24 months
- Manufacturer: Chauvin Arnoux
